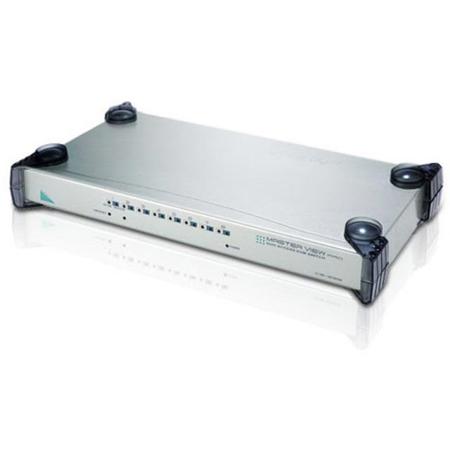

Aten CS428 Multi-Console 8-Port 4 User PS/2 KVM Switch

SKU: ANCS428 MFR: CS428
Earn VIP Reward Points

Key Features

  • Manage up to 8 PS/2 computers with this Aten KVM switch, saving space and maximizing efficiency.
  • Enjoy high-resolution video up to 1920 x 1440 with DDC2 support using this reliable KVM switch.
  • Cascade up to 64 computers for expanded control using this multi-console KVM switch solution.
  • Utilize the OSD for easy port selection and customize scan intervals on your KVM switching system.
  • Experience seamless PS/2 keyboard and mouse emulation with this Aten KVM switch for smooth operation.
  • Rack mountable KVM switch design integrates easily into your existing server room or workspace setup.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten CS428 Specifications

  • Computer Connections

    Direct: 8
    Max: 64 (Via cascade)

  • Port Selection

    OSD (On screen display)

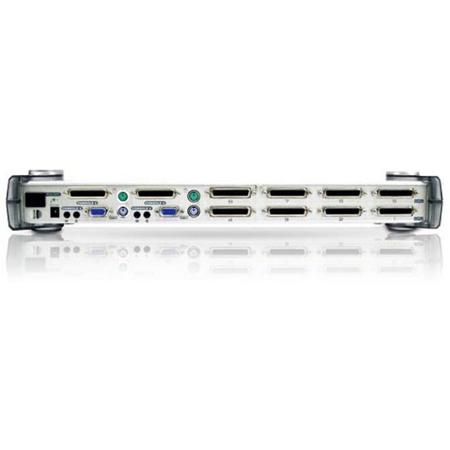

  • Console 1 & 2 connectors

    Keyboard: 2x 6 pin mini-DIN female
    Mouse: 2x 6 pin mini-DIN female
    Video: 2x HDB-15 female
    Audio: 2x Microphone jacks, 2x Speaker jacks

  • Console 3 & 4 connectors

    2x 25 pin D-Type female

  • Computer port connectors

    8x 25 pin D-Type female

  • Scan interval ( OSD select )

    User specified 1-255 seconds

  • Emulation

    Keyboard: PS/2 & PC/AT
    Mouse: PS/2 & Serial

  • LEDs

    Selected: 8 (Green)
    Power: 1 ( Blue )
    On line: 8 ( Orange )

  • Video

    1920 x 1440; DDC2

  • Power Consumption

    DC 9V, 7.2W

  • Operating Temperature

    5 to 40 deg. C / 41 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0 - 80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    43.72 x 27.50 x 6.61cm / 17.21 x 10.83 x 2.60"

  • Weight

    4.20kg / 9.26lbs

  • UPC Code

    672792000096

About Aten CS428

For businesses and organizations seeking a reliable and advanced solution for managing multiple devices, the CS428 Multi-Console 8-Port 4 User PS/2 KVM Switch is an exceptional choice. This high-performance KVM switch, designed by the reputable brand Aten, offers an efficient solution for controlling up to 8 servers, either individually or shared among users.

The CS428 KVM switch is equipped with 2 built-in PS/2 and 2 DB-25 connectors, providing a user-friendly interface for seamless operation. This design not only simplifies the process of connecting multiple devices but also reduces cable clutter in component rooms, enhancing the overall signal quality and operational efficiency.

Ideal for environments that require superior control over multiple computers, this durable KVM switch supports up to 4 users, making it a versatile tool for various IT and networking scenarios. With the CS428 Multi-Console 8-Port 4 User PS/2 KVM Switch, you can streamline your device management, ensuring smooth and uninterrupted operations.

Aten CS428 Features

  • 8 PS/2 console control 8 computers
  • Up to four users can operate up to 64 computers (via cascade to CS88A and CS9138) at the same time
  • Each console has its own access control
  • Two-level (Administrator/User) password authorization for enhanced security protection
  • Administrator can access any computer completely independently of the other users
  • Each user has his own access control list
  • Computer selection via On Screen Display (OSD)
  • Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse
  • OSD automatically adjusts to resolution changes
  • Auto Scan function to monitor computer operation
  • With speaker and microphone support
  • Superior video quality: Up to 1920 x 1440; DDC2B
  • Special design for easy stacking
  • Rack mountable in 19" (1U) system rack
  • Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD
  • For more information about KVMs which can connect to CS428, see Compatible KVM Table

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Manage up to 8 PS/2 computers with this Aten KVM switch, saving space and maximizing efficiency.
  • Enjoy high-resolution video up to 1920 x 1440 with DDC2 support using this reliable KVM switch.
  • Cascade up to 64 computers for expanded control using this multi-console KVM switch solution.
  • Utilize the OSD for easy port selection and customize scan intervals on your KVM switching system.
  • Experience seamless PS/2 keyboard and mouse emulation with this Aten KVM switch for smooth operation.
  • Rack mountable KVM switch design integrates easily into your existing server room or workspace setup.

What's in the box:

  • Aten CS428 Multi-Console 8-Port 4 User PS/2 KVM Switch
  • 2x Console Cable for Console (3/ 4)
  • 4' Power Adapter
  • Rack Mount Kit
  • User Instructions
  • Aten 3 Year Limited Warranty
