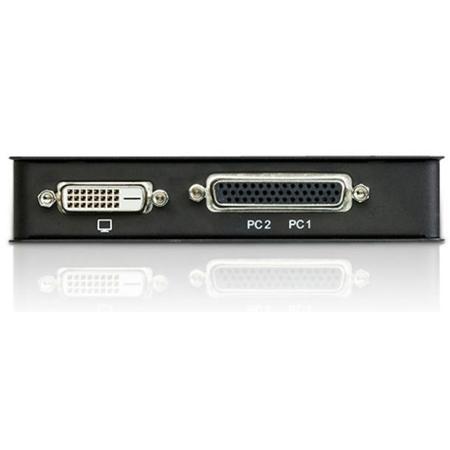

Aten CS72D 2-Port USB DVI KVM Switch
Aten CS72D: Picture 1 thumbnail
Aten CS72D: Picture 2 thumbnail
Aten CS72D: Picture 3 thumbnail
See all Aten items

Aten CS72D 2-Port USB DVI KVM Switch

SKU: ANCS72D MFR: CS72D
Be the first to review this itemAsk a Question
$125.00
Earn VIP Reward Points

Key Features

  • Control two DVI-enabled computers using one KVM switch console with superior video quality.
  • Enjoy hotkey, mouse, and pushbutton port selection for seamless KVM switch operation.
  • This 2-Port USB DVI KVM Switch supports resolutions up to 1920 x 1200 for crisp visuals.
  • Reduce desktop clutter with this compact KVM switch, perfect for small office environments.
  • Experience reliable performance with durable metal housing and integrated KVM cabling.
  • Switch effortlessly between systems using this Aten KVM switch, enhancing your workflow.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Aten CS72D Specifications

  • Computer Connections

    2

  • Console Connections

    1

  • Port Selection

    Hotkey, Mouse switch, Pushbutton

  • Connectors: Console Ports

    Keyboard: 1x USB Type A Female (Iron)
    Video: 1x DVI-D Female (White)
    Mouse: 1x USB Type A Female (Iron)
    Speakers: 1x Mini Stereo Jack Female (Green)

  • Connectors: Computer Port 1

    KB/Mouse/Video/Speakers: 1x 44-pin Connector Female

  • LEDs: Selected

    2x Green

  • Pushbuttons

    2

  • Cable Length

    1.2m / 3.94' x1 (44 pin)

  • Power Consumption

    DC 5.0V, 5.0W

  • Emulation

    KB / Mouse

  • Video

    1920 x 1200 at 60Hz; 1920 x 1080 Full HD

  • Scan Interval

    3, 5, 10, 20 seconds (5 secs. default)

  • Operation Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    12.50 x 8.20 x 2.50cm / 4.92 x 3.23 x 0.98"

  • Weight

    0.33kg / 0.73lbs

  • UPC Code

    672792004599

About Aten CS72D

The CS72D / CS74D 2/4-Port USB DVI KVM Switch allows you to control two or four computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video devices, such as fl at panel displays, data projectors, plasma displays and digital TVs. The CS72D / CS74D comes with ATEN's Video DynaSync technology, which eliminates boot-up display problems and optimizes resolution; it carries several convenient features, such as Power On Detection, 2.1 channel audio capability and USB 2.0 peripheral sharing, as well as provides quick and easy methods to access computers.

Aten CS72D Features

  • Fully compliant with DVI specification (Digital only)
  • Supports multi-function and wireless mouse/keyboard
  • Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
  • Superior video quality - 1920 x 1200 at 60Hz
  • Multiplatform support - Windows, Linux, Mac, FreeBSD and Sun
  • HDCP compliant
  • Power on detection - if one computer is powered off, the switch will automatically switch to the next powered-on computer
  • Video DynaSync - exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
  • Computer selection via front panel pushbuttons, hotkeys, and mouse switching function
  • USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
  • Complete keyboard emulation for error-free booting
  • Firmware upgradeable
  • Non-powered
  • Mac/Sun keyboard support and emulation

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Control two DVI-enabled computers using one KVM switch console with superior video quality.
  • Enjoy hotkey, mouse, and pushbutton port selection for seamless KVM switch operation.
  • This 2-Port USB DVI KVM Switch supports resolutions up to 1920 x 1200 for crisp visuals.
  • Reduce desktop clutter with this compact KVM switch, perfect for small office environments.
  • Experience reliable performance with durable metal housing and integrated KVM cabling.
  • Switch effortlessly between systems using this Aten KVM switch, enhancing your workflow.

What's in the box:

  • Aten CS72D 2-Port USB DVI KVM Switch
  • 1.2m 44-pin Custom KVM Cable Set
  • User Instructions
  • Aten 3 Year Limited Warranty
