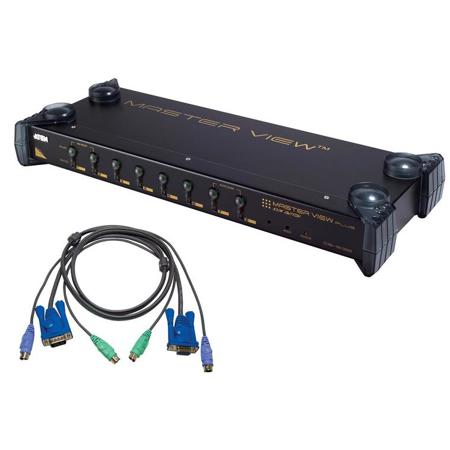

Aten CS9138 8-Port PS/2 KVM Switch Kit
See all Aten items

Aten CS9138 8-Port PS/2 KVM Switch Kit, Includes 4x 6' PS/2 KVM Cable, 4x 10' PS/2 KVM Cable

SKU: ANCS9138KT MFR: CS9138KIT
Be the first to review this itemAsk a Question
$335.00
OR
$56/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Manage up to 8 PS/2 servers with this Aten KVM switch, saving space and resources efficiently.
  • Enjoy high-resolution video up to 1920x1440 with DDC2B support for clear visuals on your KVM console.
  • Cascade up to 512 computers by linking KVM switches, perfect for growing server management needs.
  • Use hotkeys, pushbuttons, or OSD for easy port selection on this versatile 8-port KVM switch.
  • Includes all necessary KVM cables and rack mount kit for a quick and organized setup right out of the box.
  • Built with a durable metal housing, this Aten KVM switch ensures reliable performance and longevity.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Aten CS9138KIT Specifications

  • Switch: Computer Connections

    Direct: 8
    Max: 512 (via Cascade)

  • Switch: Port Selection

    Hotkey, Pushbutton, OSD

  • Switch: Connectors

    Console Ports
    Keyboard - 1x 6-pin Mini-DIN Female (Purple)
    Video - 1x HDB-15 Female (Blue)
    Mouse - 1x 6-pin Mini-DIN Female (Green)

    KVM Ports
    Keyboard - 8x 6-pin Mini-DIN Female (Purple)
    Video - 8x HDB-15 Male (Blue)
    Mouse - 8x 6-pin Mini-DIN Female (Green)

    Power - 1x DC Jack (Black)

  • Switch: Switches

    Power - 8x Pushbutton

  • Switch: LEDs

    On Line: 8x Green
    Selected: 8x Orange
    Power: 1x Blue

  • Switch: Emulation

    Keyboard / Mouse: PS/2

  • Switch: Video

    1920 x 1440; DDC2B

  • Switch: Scan Interval

    3,5,10,15,20,30,40,60 Seconds

  • Switch: Power Consumption

    DC9V, 1.08W

  • Switch: Compatibility

    Extender: CE250A, CE252, CE350, CE370
    Cascade: CS128A, CS9138

  • Switch: Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Switch: Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Switch: Humidity

    0-80% RH, Non-condensing

  • Switch: Housing

    Metal

  • Connection Type

    2L5002P: HDB, PS/2
    2L5003P: HDB, PS/2

  • Connections

    2L5002P: 2x 6-pin mini-DIN male
    2x 6-pin mini-DIN female
    1x HDB-15 male
    1x HDB-15 female

    2L5003P: 2x 6-pin mini-DIN male
    2x 6-pin mini-DIN female
    1x HDB-15 male
    1x HDB-15 female

  • Length

    2L5002P: 6.0' / 1.83m
    2L5003P: 10' / 3.05m

  • Dimensions (L x W x H)

    Switch: 45.00 x 17.00 x 6.70cm / 17.72 x 6.69 x 2.64"

  • Weight

    Switch: 2.85kg / 6.28lbs

  • UPC Code

    672792420139

About Aten CS9138KIT

CS9138 is a high-efficiency KVM Switch which provides the most efficient solution to fulfill the management needs of server networks. It is a KVM Switch with 8 ports and can control 8 computers. It allows connections in 3 tiers by cascade. With 73 sets of CS9138, users can connect up to 512 servers.

Aten CS9138KIT Features

  • Use one keyboard, monitor and mouse to control 8 computers
  • Control up to 512 computers by connecting multiple CS9138 together
  • On Screen Display provides a convenient method for accessing the computers
  • Keyboard/mouse translation allows PS/2 peripherals to control both PS/2 and serial-based computers
  • Plug-n-Play monitor support
  • High-resolution video support (up to 1920 x 1440)
  • Easy to install - no software required
  • Built in AutoScan mode
  • LED's allow for easy status monitoring
  • Cables included

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Manage up to 8 PS/2 servers with this Aten KVM switch, saving space and resources efficiently.
  • Enjoy high-resolution video up to 1920x1440 with DDC2B support for clear visuals on your KVM console.
  • Cascade up to 512 computers by linking KVM switches, perfect for growing server management needs.
  • Use hotkeys, pushbuttons, or OSD for easy port selection on this versatile 8-port KVM switch.
  • Includes all necessary KVM cables and rack mount kit for a quick and organized setup right out of the box.
  • Built with a durable metal housing, this Aten KVM switch ensures reliable performance and longevity.

What's in the box:

  • Aten CS9138 8-Port PS/2 KVM Switch
  • 4x 6' PS/2 KVM Cable
  • 4x 10' PS/2 KVM Cable
  • Power Adapter
  • Rack Mount Kit
  • Installation Manual
  • Aten 3 Year Limited Warranty
