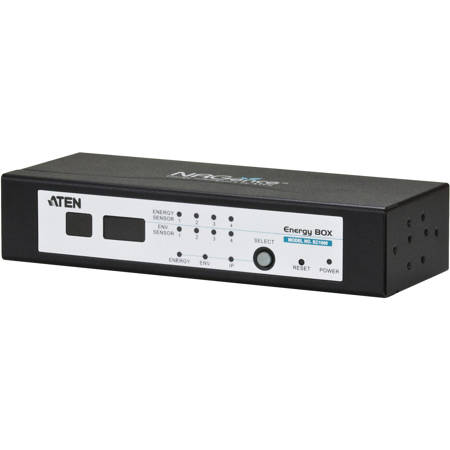

Aten EC1000 Energy Box Power Monitoring Unit, 1U Rack Mount

Why settle for less when you can have the EC1000 Energy Box Power Monitoring Unit, a cutting-edge product from NRGence - ATEN's energy intelligence solutions. This compact, 1U rack mount unit is your intelligent, cost-effective solution for monitoring ATEN's Energy PDUs, ensuring safe, efficient, and eco-friendly power management.

The EC1000 Energy Box is equipped with four Energy Sensor ports, connecting to four Energy PDU modules, and four Environment Sensor ports for external sensors. These sensors monitor a wide range of environmental conditions, including temperature, humidity, and differential pressure, providing comprehensive protection and monitoring for your data room.

This user-friendly device allows power and environmental data to be monitored and displayed at the rack or remotely, facilitating easy viewing and maintenance. With Over IP monitoring controlled by Web GUI or ATEN's eco Sensors software, the EC1000 Energy Box provides real-time status, system logs, threshold alerts, and event notifications.

The EC1000 logs power and environmental conditions according to customizable minimum/maximum thresholds set for electrical current, temperature, humidity, and differential pressure. It offers secure remote monitoring with 128bits SSL encryption and customizable account policies for user management. Remote authentication supports RADIUS and additional management interfaces including HTTP, HTTPS, and SNMPv1&v2&v3 (Read, Write, Trap). Event notifications can be monitored via Syslog/SMTP/SNMP trap and audible alarms for real-time local and remote alerting.

When paired with ATEN's Energy PDUs and eco Sensors Energy Management Software, the EC1000 transforms your cabinet with remote energy management functionality, promoting a green and cost-effective server room. The unit features a space-saving 1U rack mounting with front and rear mounting, 4 RJ-45 Energy Sensor Ports, and 4 RJ-11 Environment Sensor Ports. It also includes a 3-digit 7 segment front panel LED that displays current/sensor/IP address information.

The EC1000 Energy Box supports name assignment for individual Energy PDUs, event logging, and firmware upgrades. It offers remote management via TCP/IP using a built-in 10/100Mbps Ethernet port and management via a built-in browser-based GUI. Its strong security features include password protection and advanced encryption technologies - utilizing 128 bit SSL, and RADIUS authorization and authentication.

Experience real-time monitoring and early warning notifications with the EC1000. Administrators can set custom thresholds, and when levels exceed these thresholds, designated recipients can receive alarm notifications via SMTP email, SNMP traps, or Syslog alerts. An audio alarm and flashing lights can also be set to alert administrators locally.

For a complete energy management solution, pair the EC1000 Energy Box with NRGence Energy PDUs and the intuitive and user-friendly eco Sensors management software. This combination allows you to remotely and continuously monitor environment and power status, optimizing data center energy management with automated power analysis reports. For the full use of the EC1000 Energy Box, consider installing 4 sensors for each of the PDU rack locations to generate a complete energy-efficient data and chart.
