Ansmann Fischer Amps Hard-Wired In-Ear Body Pack, XL

Ansmann Fischer Amps Hard-Wired In-Ear Body Pack, XL

SKU: ANFAINEARBXL
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ansmann In-Ear Body Pack Specifications

  • Input Connectors

    3 Neutrik XLR 3-pole, with interlock

  • Output

    3.5mm / 1/8" mini jack stereo, 1 XLR Mic Link-Out

  • Frequency Response

    30 Hz - 20 KHz +/- 2dB

  • Min. Impedance of Headphones

    12 ohms per side

  • Input Impedance

    15k ohms channel 1 and 2; 2 k ohms microphone input (with PAD switch = 15 k ohms)

  • Nom. Input Level symmetric

    0 dBV (channel 1 and 2)

  • Max. Input Level symmetric

    +4dBV (channel 1 and 2)

  • Limiting of the Input Signal

    from +5 dBV (channel 1 and 2)

  • Input Level Mic Input

    +60 dB to +6 dB

  • Max Output Power into 20 ohms

    40 mW per channel

  • Max. Operating Current

    65 mA (with add-on phantom power 120-140 mA)

  • Power supply

    9V block alkaline battery or 8.4V rechargeable battery NiMH with min. 210 mAh

  • DC Input

    Ext. input power DC 9V (pin +, ring -)

  • Operating Time of Battery

    Alkaline battery approx. 7.5 hours, NiMH rechargeable battery (270 mAh) approx. 4 hours (depending on headphones volume)

  • Dimensions (L x W x H)

    4.92 x 5.35 x 1.25" (125 x 136 x 32 mm)

  • Weight

    Approx. 430 g (15.1 oz) without battery

  • UPC Code

    0609465779508

About Ansmann In-Ear Body Pack

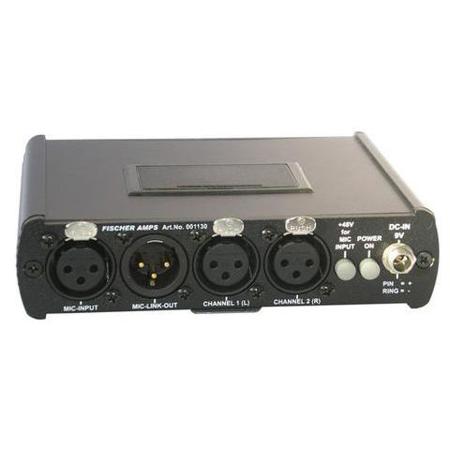

In Ear Body Pack XL

The Body Pack XL has the same functional principle as the Fischer Amps Hardwired In Ear Body Pack plus an additional Mic-In to add-on a microphone signal to the stereo or mono mix received. The integrated low-noise microphone preamp has standard features such as 48V phantom power, PAD switch to reduce the input signal by 20 dB and a gain control from + 12 dB to + 60 dB.

An additional feature for the microphone input is the parallel out which allows to loop the microphone signal.

The Body Pack XL is powered with a 9V battery or an additional mains adaptor (not included).

This Body Pack is a compact in ear solution not only for orchestra musicians who want to mix their own microphone signal to the incoming in ear signal, but it is also an excellent tool for engineers to monitor microphone signals.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • In-Ear Body Pack XL
  • Ansmann 2 Year Limited Warranty
