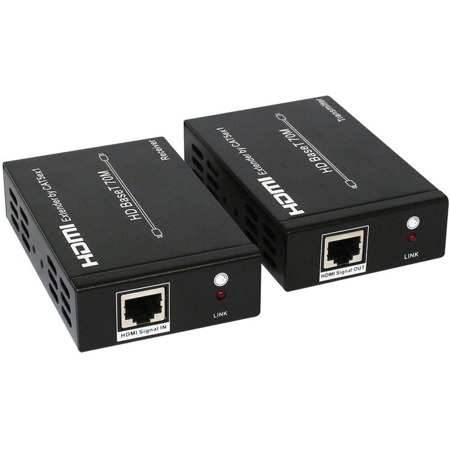

A-NeuVideo ANI-HDB70 230' UHD 4K2K HDMI PoE Extender Over HDBaseT
See all A-NeuVideo items

A-NeuVideo ANI-HDB70 230' UHD 4K2K HDMI Power Over Ethernet Extender Over HDBaseT with Bi-Directional IR

SKU: ANHDB70
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-08-21T13:15:44

Rated 5 out of 5

Works great with mi Minipro switcher.

Great and reliable.

MARIO R.

A-NeuVideo ANI-HDB70 Specifications

  • Transmission Distance

    4K UHD/30Hz/24-bit Up to 100' / 30.48m
    2K/30Hz/24-bit Up to 200' / 60.96m
    1080p/60Hz/36-bit Up to 230' / 70.10m
    3D 1080p/30Hz/36-bit Up to 230' / 70.10m
    1080p/60Hz/48-bit Up to 130' / 39.62m
    1080p/120Hz/24-bit Up to 130' / 39.62m
    3D 1080p/60Hz/36-bit Up to 130' / 39.62m

  • Frequency Bandwidth

    2.97 Gbps

  • Transmitter Input/Output

    1x HDMI input
    1x RJ45 output
    1x IR Transmitter jack
    1x IR Receiver jack

  • Receiver Input/Output

    1x RJ45 input
    1x HDMI output
    1x IR Transmitter jack
    1x IR Receiver jack

  • Cables Supported

    HDMI 1.4
    UTP/STP LAN cable CAT5e/6/7

  • HDCP Compliant

    Yes

  • Power Supply

    12 VDC 2.5 A

  • Power Consumption

    20W

  • ESD Protection

    +/- 8 kV (air-gap discharge)
    +/- 4 kV (contact discharge)

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Relative Humidity

    20 to 90% RH (Non-condensing)

  • Dimensions (W x D x H)

    2.5 x 3.9 x 1" / 63.50 x 99.06 x 25.40mm

  • Weight

    0.7oz / 19.84g (each unit)

  • UPC Code

    8573910035360

About A-NeuVideo ANI-HDB70

FEATURED REVIEWS

Works great with mi Minipro switcher.

By MARIO R.

Great and reliable.

The ANI-HDB70 HDMI Extender over HDBaseT (single CAT5e/6/7) is a tool for extending your HDMI signal over long distances to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal and transmit by dedicated CATx cable. It also supports bi-directional infrared (IR) signal together with the HDMI signal, so you can control the source device or the display.

The ANI-HDB70 operates at 1080p up to 230 feet (70M) using CAT5e or better. The greatest feature is the PoH (Power over HDBaseT) also known as PoE (Power over Ethernet or PoCC Power over Category Cable). You only need one power supply (included) that provides power to both the transmitter and the receiver. You can install the PoH power supply on either the Transmitter or the Receiver.

A-NeuVideo ANI-HDB70 Features

  • Transmits at a distance of up to 230 ft (70m)
  • One pair as a full functional module, no need for setting DIP switches
  • PoE (Power Over Ethernet), either TX or RX powered 12V at 2.5A
  • Consumption less than 10W
  • Use single UTP/STP LAN cable CAT5e/6 or 7 to substitute HDMI cable to achieve long distance transmission
  • UTP/STP cable termination follows the standard of IEEE-568B. Not compatible with EZ-RJ45 connectors
  • HDMI V1.4 supported
  • HDCP compliant
  • Full HD support: 1080p at 60Hz at 48 bit/pixels, 1080p at 120Hz at 24 bit/pixels, 3D 1080p60Hz and 4K2K at 30Hz at 24bit
  • Bi-directional infrared control signal together with the HDMI signal
  • Full 3D pass through
  • High EMI rejection for compatibility even in challenging installations
  • Supports all embedded audio signals including Dolby TrueHD and DTS-HD Master Audio

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo Transmitter
  • Receiver
  • 2x IR Transmitter
  • 2x IR Receiver
  • User Guide
  • 12V 2.5A DC Power Supply Adapter
  • A-NeuVideo 3 Year Warranty
