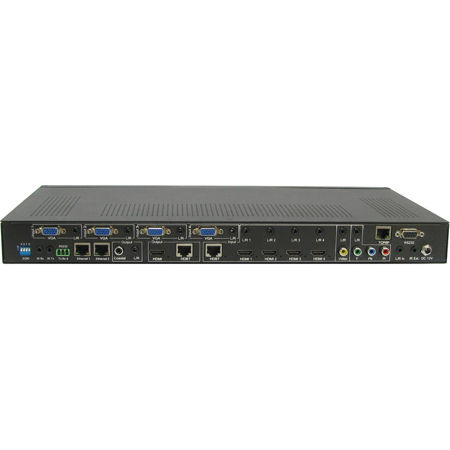

A-NeuVideo 11x2 UHD Multi-format Video Presentation Scaler Switch with Audio, Transmitter & Receiver

The ANI-11x2MFS is a UHD 4K2K at 30Hz multi-format video presentation scaler switch with audio. It features (11) inputs of various video formats including HDMI, VGA, Component, Composite and HDBaseT with HDMI and HDBaseT outputs. Video can be scaled to various aspect ratios and resolutions from 640x480 up to 1920x1080 at 60Hz and using the by-pass, supports up to 4K2K at 30Hz.

Main Unit
• Switch & Scale (11) Inputs to (2) HD/UHD displays
• (4) HDMI, (4) VGA, (1) YPbPr, (1) Composite, (1) HDBaseT Inputs
• (2) simultaneous outputs ((1) HDMI, (1) HDBaseT)
• Selectable Bypass and Scaled formatted output
• Selectable Dual mode (11:1x2 Splitter Mode or 5x1 & 11x1 Dual Switcher Mode)
• HDTV formats up to 4K2K at 30Hz on both Input and Output (bypass)
• Scaling from 640x480 to 1920x1080 at 60Hz
• HDBaseT PoE Transmitter (included) HDBaseT PoE Receiver (included) supports distances up to 330 ft /100M
• Built in Ethernet Hub
• HDCP 1.4 compliant
• Audio embedder and audio extractor
• OSD menu for volume control and resolution selection
• Controllable via the front panel, IR remote, Telnet or RS-232
• Front-panel LCD display for status feedback
• Easy installation with rack-mounting ears

Transmitter & Receiver
• HDMI v1.4 and HDCP compliant, supports 1080p at 60Hz, 3D and 4K2K at 30Hz
• Supports 1080p at 60Hz or VESA: 1920x1200 at 60Hz up to 330 ft/100M
• Transmission distance for 4K2K at 30Hz up to 230 ft/70M
• Dolby TrueHD and DTS-HD master audio pass through the HDMI output
• Bi-directional IR, RS-232 and Ethernet pass through
• Power over HDBaseT supported, only one power supply needed at either the transmitter or receiver side
• ESD Protection

With embedded splitter and dual switcher modes, it can work as an 11:1x2 multiple splitter or a 5x1 & 11x1 dual switcher. It also features a switchable digital bypass output allowing any HDMI input to be directly bypassed to the HDMI and HDBaseT outputs to cater to the 4K source. With advanced audio embedding and de-embedding, it can provide flexible audio signal integration. Each source can be switched to the HDMI/HDBaseT outputs using the front-panel, IR remote control, RS-232 interface or Telnet.

The ANI-11x2MFS integrates easily into various analog to digital applications such as, in collaboration environments, lecture halls, conference rooms, class rooms, healthcare facilities and control centers.

The ANI-11x2MFS-Tx (Transmitter) / ANI-11x2MFS-Rx (Receiver) are HDBaseT Extenders. They can transmit 1080p at 60Hz at 48bit deep color via a single CAT5e cable up to 330ft/100M and 4K2K at 30Hz up to 230ft/70M. Bi-directional IR, RS-232 and Ethernet can also be transmitted over the same CAT5e cable. With support of PoH (Power over HDBaseT), a power supply is not needed for either the transmitter or the receiver, as the ANI-11x2MFS provides the power. This product has a 3 year warranty.
