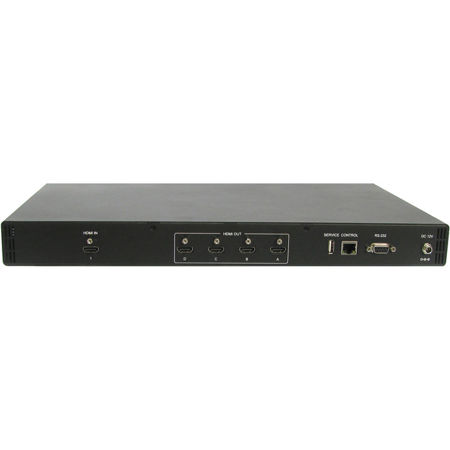

A-NeuVideo 1x4 HDMI 4K UHD Video Wall Splitter
See all A-NeuVideo items

A-NeuVideo 1x4 HDMI 4K UHD Video Wall Splitter

SKU: ANI4KVW
Be the first to review this item

This item is no longer available.

Recommended Alternatives

A-NeuVideo ANI-0104POE-AU: Picture 1 regular
A-NeuVideo ANI-0104POE-AU 1x4 HDMI 4K60Hz CAT6 Extender Splitter w/8x Receivers
$558.00$438.90
A-NeuVideo ANI-0104POE-XT: Picture 1 regular
A-NeuVideo ANI-0104POE-XT 1x4 HDMI 4K30Hz CAT6 Extender Splitter w/4x Receivers
$323.40$294.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo Wall Splitter Specifications

  • Video Bandwidth

    300MHz/9GBps

  • Input Ports

    (1) HDMI (Female type), (1) Control (RJ45), (1) RS-232 (D-sub 9-pin), (1) USB (Service only)

  • Output Ports

    (4) HDMI (Female type)

  • HDMI Cable Distance

    8bit 1080p 32' (10m) (Approx.), 4K2K 16' (5m) (Approx.)

  • IR Frequency

    30-50KHz

  • Baud Rate

    115200Bps

  • ESD Protection Human body model

    +/- 8KV (air-gap discharge)
    +/-R107 4KV (contact discharge)

  • Power Supply

    12V 3A DC (US/EU standards, CE/FCC/UL certified)

  • Chassis Material

    Metal

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    20-90% RH (non-condensing)

  • Power Consumption

    12.98W

  • Dimensions (WxDxH)

    17 x 10.5 x 1.75" (43.18 x 26.67 x 4.45cm)

  • Weight

    Unit only: 6.4 lbs (2.90kg)
    9.7 lbs (4.40kg)

  • UPC Code

    857391003857

About A-NeuVideo Wall Splitter

The ANI-4K-VW 1x4 UHD TV Wall allows a HDMI 4K2K input source to be freely arranged on (4) displays (TVs or monitors) with a bezel correction function. The friendly control application for the TV Wall system has never been easier. This application leads the user through single or total device control. The device supports video output timings up to WUXGA at 60RB and 1080p at 60Hz, audio formats up to 7.1CH LPCM at 192KHz sampling rate based on the input source EDID. All the operation and control can be done through Telnet and RS-232. This product has a 3 year warranty.

A-NeuVideo Wall Splitter Features

  • HDMI with 4K2K supported, HDCP and DVI compliant
  • Output source signal to (4) displays as a full image with adjustable Bezel correction
  • Supports Input PC resolutions from VGA-WUXGA and HDTV from 480i-1080p and 4K2K at 24/25/30Hz
  • Supports different input and output resolutions selectable from the TV wall application
  • Supports AC3/DTS/Dolby Digital Plus/Dolby TrueHD/Dolby Atmos and DTS-HD Master Audio
  • Supports RS-232 and Telnet controls

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo 1x4 HDMI 4K UHD Video Wall Splitter
  • 12V 3A DC Power Adaptor
  • User Guide
  • A-NeuVideo 3 Year Warranty
