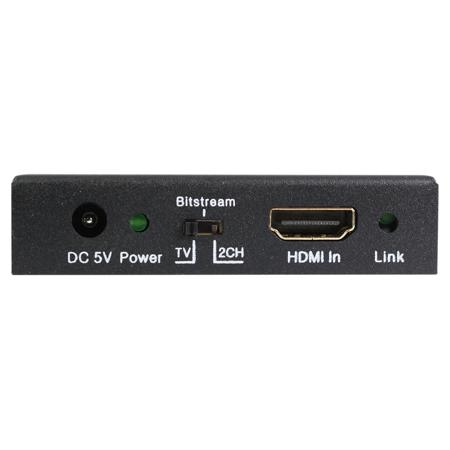

A-NeuVideo 4K UHD HDMI 2.0 18Gbps Audio Extractor
See all A-NeuVideo items

A-NeuVideo 4K UHD HDMI 2.0 18Gbps Audio Extractor

SKU: ANI71CH4K
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo Audio Extractor Specifications

  • HDMI Compliance

    HDMI 2.0b

  • HDCP Compliance

    HDCP 2.2 and HDCP 1.4

  • Video Bandwidth

    18 Gbps

  • Video Resolutions

    Up to 4K2K at 50/60Hz (YUV4:4:4),4K2K at 30Hz,1080P at 120Hz and 1080P 3D at 60Hz

  • Color Space

    RGB, YCbCr 4:4:4, YCbCr 4:2:2

  • Color Depth

    10-bit, 12-bit

  • HDMI Audio Formats

    (Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

  • Optical Audio Formats

    LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH

  • L/R Audio Formats

    Analog Stereo 2CH

  • ESD Protection

    Human body model
    8kV (air-gap discharge)
    4kV (contact discharge)

  • Inputs

    HDMI Type A (19-pin female)

  • Outputs

    HDMI Type A (19-pin female)
    L/R Audio Out (3.5mm Stereo Mini-jack)
    Optical Out (S/PDIF)

  • Housing

    Metal Enclosure

  • Power Supply

    Input: AC100 - 240V 50/60Hz
    Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)

  • Power Consumption

    1W (Max)

  • Operation Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Relative Humidity

    20% - 90% RH (no condensation)

  • Dimensions (WxDxH)

    2.9 x 2.4 x 0.7" (7.37 x 6.10 x 1.78cm)

  • Weight

    4.6 oz (130.41g)

  • UPC Code

    859777007329

About A-NeuVideo Audio Extractor

This HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K at 50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192kHz. HDCP 2.2 and CEC bypass are supported. This product has a 3 year warranty.

A-NeuVideo Audio Extractor Features

  • HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
  • Video resolutions up to 4K2K at 50/60Hz (YUV444)
  • Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
  • Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
  • Supports HDMI High Bit Rate (HBR) audio pass through
  • Audio sample rates up to 192kHz
  • 10bits HDR (High Dynamic Range) pass through
  • Supports CEC bypass

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo 4K UHD HDMI 2.0 18Gbps Audio Extractor
  • 5V/1A Power Adaptor
  • User Guide
  • A-NeuVideo 3 Year Warranty
