A-NeuVideo 9x1 4K HDMI Seamless Switcher with Multi-Viewer
See all A-NeuVideo items

A-NeuVideo 9x1 4K HDMI Seamless Switcher with Multi-Viewer

SKU: ANI9MV
Be the first to review this item

This item is no longer available.

Recommended Alternatives

A-NeuVideo ANI-88HDRH: Picture 1 regular
A-NeuVideo 8x8 HDR HDCP 2.2 4k at 60Hz HDMI 18G Matrix Switcher Scaler
$2,749.00$2,400.75
A-NeuVideo ANI-PiP-41UHD: Picture 1 regular
A-NeuVideo ANI-PiP-41UHD 4x1 4K UHD Quad/PiP/PoP Multiviewer Seamless Switcher
$379.50$331.20
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

Can the ANI-9-MV 4K HDMI Seamless Switcher display multiple video sources at once?

Yes, the ANI-9-MV 4K HDMI Seamless Switcher can display up to nine high-definition video sources on one screen simultaneously.

What is the maximum resolution supported by the ANI-9-MV 4K HDMI Seamless Switcher?

The ANI-9-MV 4K HDMI Seamless Switcher supports 4K resolutions at 60Hz.

Does the ANI-9-MV 4K HDMI Seamless Switcher have a built-in scaler?

Yes, the ANI-9-MV 4K HDMI Seamless Switcher comes equipped with a built-in scaler that can upscale lower resolution sources to 4K without any loss of quality.

Is the ANI-9-MV 4K HDMI Seamless Switcher compatible with legacy displays?

Yes, the ANI-9-MV 4K HDMI Seamless Switcher offers the flexibility to choose the output resolution, making it compatible with legacy displays.

How many HDMI inputs does the ANI-9-MV 4K HDMI Seamless Switcher support?

The ANI-9-MV 4K HDMI Seamless Switcher supports nine HDMI inputs.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo ANI-9-MV Specifications

  • Inputs

    (9) HDMI Type A (19-pin female)
    RJ45 (8-pin female)
    RS-232 (Phoenix jack)
    USB (USB-A)
    IR EXT (3.5mm Stereo Mini-jack)

  • Output

    HDMI Type A (19-pin female)
    Audio Out (3.5mm Stereo Mini-jack)

  • HDMI Compliance

    HDMI 1.4b

  • HDCP Compliance

    HDCP 1.4

  • Video Bandwidth

    3Gbps

  • Video Resolutions

    4K2K at 30Hz, YUV4:4:4, RGB4:4:4

  • Color Depth

    8-bit

  • Color Space

    RGB, YUV4:4:4, YUV 4:2:2

  • HDMI Audio Formats

    LPCM 2.0

  • ESD Protection

    Human Body Model
    +/-8KV (air-gap discharge)
    +/-4KV (contact discharge)

  • Power Supply

    Input: AC100 - 240V 50/60Hz / Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)

  • Housing

    Metal Enclosure

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Relative Humidity

    20-90% RH (non-condensing)

  • Power Consumption

    7.8W (Max)

  • Dimensions (WxDxH)

    17.3 x 7.9 x 1.75" (43.94 x 20.07 x 4.45cm)

  • Weight

    5 lbs (2.27kg)

  • UPC Code

    859777007398

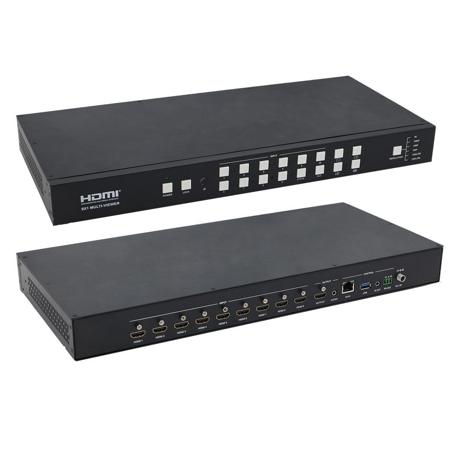

About A-NeuVideo ANI-9-MV

The ANI-9-MV 9x1 seamless switcher supports (9) HDMI inputs to (1) HDMI output. It allows the user to view up to (9) HD video sources on one display at the same time. Output resolution can be chosen for a supporting legacy display. This switcher is a suitable solution for presentation purposes such as classrooms and conference rooms. This product has a 3 year warranty.

A-NeuVideo ANI-9-MV Features

  • HDMI 1.4b, HDCP 1.4 compliant
  • Input video resolution up to 1080p at 60Hz
  • Output video resolution up to 4K2K at 30Hz
  • 9x HDMI inputs, 1x HDMI and 1x de-embedded analog audio output
  • Fast seamless switching with scaling up to 3840x2160p (4K)
  • Supports 1/2/4/9 window multi-view modes
  • Displays full HD signals within one 4K display with pixel-to-pixel quality
  • Control is via on-panel button, IR, RS-232, LAN or Web GUI
  • 1U rack mounted design

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo 9x1 4K HDMI Seamless Switcher with Multi-Viewer
  • 12V/1A Power Adapter
  • Remote Control
  • User Guide
  • A-NeuVideo 3 Year Warranty
