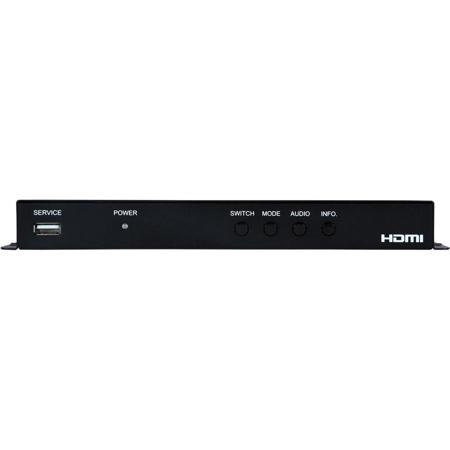

A-NeuVideo ANI-2PIP-LOGO 2x1 HDMI Dynamic Multiviewer PiP/PoP with LOGO Inserter

The ANI-2PIP-LOGO HDMI Multiviewer is capable of scaling up to (2) sources and displaying both simultaneously on a single HDMI output within their own windows. This is the ideal solution for monitoring multiple sources simultaneously for use in control rooms or for flexible display presentations in conference rooms or classrooms. Both inputs support resolutions up to 1920x1200 at 60Hz and LPCM audio with up to 7.1 channels at 192kHz. The multi-window output is sent to a single HDMI output at scaled resolutions up to 1920x1200 at 60Hz along with the selected audio source.

The HDMI output supports up to LPCM 7.1 digital audio while the analog audio output supports up to LPCM 2.0. Each of the (2) HDMI sources may be displayed individually, full screen or they can be displayed using a variety of dual-window modes including Picture-in-Picture, Side-by-Side or freely positioned (with layer priority control). Each window can also be mirrored, flipped, swapped or frozen (with live audio). Chroma keying and a custom uploadable logo/graphic are also supported.

External images can be uploaded and overlaid on top and at any position on the live HDMI Output. This unit can be controlled easily by use of the front panel controls (with OSD) as well as by WebGUI, Telnet, RS-232, IR and (8) direct trigger inputs. This products have a 3 year warranty.
