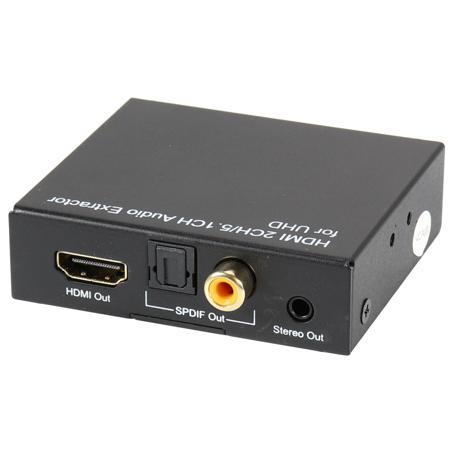

A-NeuVideo 4K UHD HDMI 2.0 Audio Extractor with S/PDIF Optical Toslink, Coaxial & Analog 3.5mm Stereo Output

SKU: ANIANI51CH4K

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

A-NeuVideo Audio Extractor Specifications

  • Input Connector

    HDMI

  • Output Connector

    HDMI

  • Other Connector

    Toslink/Stereo

  • Input Resolutions

    Up to 4K2K at 60Hz

  • Output Resolutions

    Up to 4K2K at 60Hz

  • Operating Temperature

    0 to 70 deg. C (32 to 158 deg. F)

  • Operating Humidity

    10% to 85% RH (no condensation)

  • Storage Temperature

    -10 to 80 deg. C (14 to 176 deg. F)

  • Storage Humidity

    5% to 90% RH (no condensation)

  • External Power Supply

    Powered from DC port

  • Power Consumption

    2W (Max)

  • Converter Unit

    FCC, CE

  • Accessories Adapter

    5V/1A Power Adapter

About A-NeuVideo Audio Extractor

This product is an HDMI audio extractor with resolution support up to 4K2K at 60Hz. It not only supports to connect DVD to HDTV, but also supports to connect amplifier receiver via its Toslink or Coaxial or stereo audio port, letting you enjoy high definition video and meanwhile enjoy high-quality audio. This audio extractor extracts 5.1 audio from the source and transmit it to the amplifier with Toslink cable and restore Multi-Channel audio through multi-channel sound system (audio will remain embedded with the HDMI video). When connecting the headphone output, the audio output will automatically switch to 2 channel stereo audio. This product has a 3 year warranty.

A-NeuVideo Audio Extractor Features

  • Follows HDMI resolution up to 4K2K at 60Hz
  • Supports 600MHz/6Gbps per channel bandwidth (18Gbps all channels)
  • Supports video resolutions up to 12bit 4K (60Hz), 1-bit 1080p (60Hz) or 12bit 720p/1080i (60Hz)
  • 3D formats up to 600MHz
  • HDCP 2.2 and 1.4
  • Supports uncompressed audio such as LPCM
  • Supports Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
  • Powered from Micro USB

What's in the box:

  • A-NeuVideo 4K UHD HDMI 2.0 Audio Extractor
  • 5V/1A Power Adapter
  • User Guide
  • A-NeuVideo 3 Year Warranty
