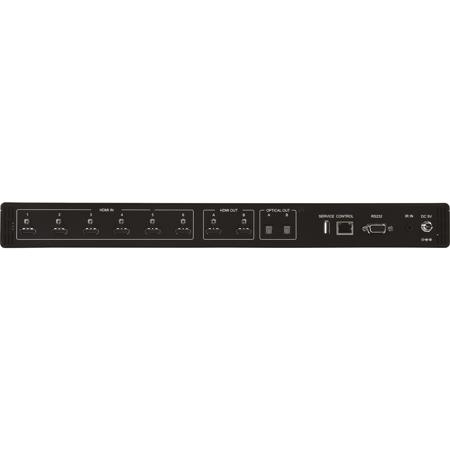

A-NeuVideo 6x2 HDR HDCP 2.2 4k at 60Hz HDMI 18G Matrix Switcher
See all A-NeuVideo items

A-NeuVideo 6x2 HDR HDCP 2.2 4k at 60Hz HDMI 18G Matrix Switcher with Audio De-Embedding

SKU: ANIANI62HDRH
Be the first to review this item

This item is no longer available.

Recommended Alternatives

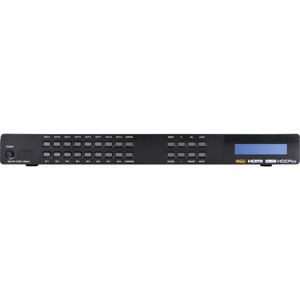

A-NeuVideo ANI-88HDRH: Picture 1 regular
A-NeuVideo 8x8 HDR HDCP 2.2 4k at 60Hz HDMI 18G Matrix Switcher Scaler
$2,749.00$2,400.75
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo Switcher Specifications

  • Video Bandwidth

    600MHz/18Gbps

  • Input Ports

    6x HDMI

  • Output Ports

    2x HDMI / 2x TOSLINK (S/PDIF Audio)

  • Control Interfaces

    IR Extender (3.5mm)
    RS-232 (9-pin D-sub)
    IP Control (RJ45)

  • Supported Resolutions

    480i at 60Hz - 4K at 60Hz (4:4:4, 8-bit), VGA at 60Hz - WUXGA at 60Hz (RB)

  • HDMI Cable Length

    32' (9.75m) (1080p at 60Hz, 12-bit)
    16' (4.88m) (4K at 60Hz, 4:4:4, 8-bit)

  • IR Frequency

    30 - 50kHz (30 - 60kHz under ideal conditions)

  • Baud Rate

    115200bps

  • Power Supply

    5V/3A DC (US/EU standards, CE/FCC/UL certified)

  • ESD Protection Human Body Model

    +/-12kV (Air Discharge)
    +/-8kV (Contact Discharge)

  • Chassis Material

    Metal

  • Silkscreen Color

    Black

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    20 - 90% RH (Non-condensing)

  • Power Consumption

    12.65W

  • Dimensions (WxHxD)

    Case Only: 17.2 x 1.7 x 10.6" (436.88 x 43.18 x 269.24mm)
    All Inclusive: 17.2 x 2 x 10.9" (436.88 x 50.80 x 276.86mm)

  • Weight

    6.3 lbs (2.86kg)

  • UPC Code

    859777007299

About A-NeuVideo Switcher

This 4K UHD+ 6 by 2 Matrix provides the ability to connect up to (6) 4K UHD HDMI sources to up to (2) 4K UHD HDMI displays and freely switch between them. This unit comes with full support for 18Gbps (600Mhz) resolutions up to and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Color (up to 1080p@60Hz), HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0 specification. With a comprehensive EDID management feature that includes the ability to select between (6) built in default EDIDs or an EDID copied from a connected sink device, this matrix can solve many interconnectivity problems.

Added flexibility comes from the ability to extract audio from each HDMI output's source and output it as optical digital audio (LPCM 2.0 and standard Bitstream only). (6) fully configurable presets are also provided to simplify the routing process. This unit provides an intuitive set of front panel controls with associated LCD, as well as RS-232, Telnet, WebGUI and IR remote control options. This product has a 3 year warranty.

A-NeuVideo Switcher Features

  • HDMI input and output with 18Gbps (600MHz) 4K UHD support
  • DVI 1.0 compliant with the use of an HDMI-DVI adaptor
  • HDCP 1.4 and 2.2 compliant
  • Supports HD resolutions up to 3840x2160 at 60Hz (YUV 4:4:4, 8-bit) and 4096x2160 at 60Hz (YUV 4:4:4, 8-bit)
  • Supports 16-bit Deep Color up to 1080p at 60Hz
  • 6x HDMI inputs and 2x HDMI outputs
  • Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
  • Display any of (6) high-definition sources on up to (2) HDTV displays simultaneously
  • Optical audio extraction paired with each HDMI output (LPCM 2.0 or Bitstream only)
  • Supports (6) internal EDIDs or (2) external EDIDs copied from connected devices
  • Controllable via front panel buttons with LCD, WebGUI, Telnet, RS-232 and IR remote

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo 6x2 HDR HDCP 2.2 4k at 60Hz HDMI 18G Matrix Switcher
  • Remote Control
  • IR Extender Cable
  • 5V/3A DC Power Adaptor
  • Rack Mount Ears (Set of 2)
  • User Guide
  • A-NeuVideo 3 Year Warranty
