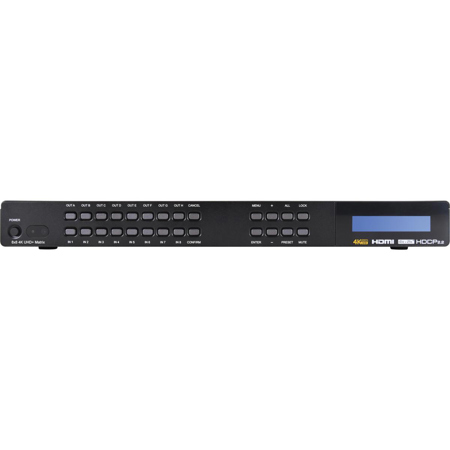

A-NeuVideo ANI-88HDRH 8x8 HDR HDCP 2.2 4k at 60Hz HDMI 18G Matrix Switcher Scaler with USB Power Ports

SKU: ANIANI88HDRH MFR: ANI-88HDRH
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 8 HDMI sources with this 4K HDMI Matrix Switcher.
  • Enjoy stunning video quality with HDR and HDCP 2.2 support for crystal-clear visuals.
  • Control your video distribution via IR, RS-232, or USB for ultimate flexibility.
  • Power USB devices directly from the switcher with its convenient USB power ports.
  • Experience low latency switching, perfect for live events and real-time applications.
  • This reliable HDMI Switcher supports resolutions up to 4K at 60Hz for pro video.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

A-NeuVideo ANI-88HDRH Specifications

  • Video Bandwidth

    594MHz

  • Input Ports

    8x HDMI

  • Control Interfaces

    IR In, RS-232, Service (USB), Control

  • Output Ports

    8x HDMI, 8x USB port (5V/1A power supply)

  • Supported Resolutions

    480i-4K at 24/50/60Hz, 4K at 50/60Hz VGA-WUXGA

  • IR Frequency

    38kHz

  • Baud Rate

    19200Bps

  • Chassis Material

    Metal

  • Power Supply

    24VDC/6.25A (US/EU standards, CE/FCC/UL certified)

  • Dimensions (WxHxD)

    17.2 x 1.9 x 10.6" (436.88 x 48.26 x 269.24mm)
    With Ear Mount Brackets: 19 x 1.9 x 10.6" (482.60 x 48.26 x 269.24mm)

  • Weight

    7.9 lbs (3.58kg)

  • UPC Code

    859777007152

About A-NeuVideo ANI-88HDRH

The ANI-88HDRH 8x8 HDMI 6G Matrix provides the ability to connect up to (8) 6G HDMI sources and up to (8) 6G HDMI displays and freely switch between them. This unit comes with full support for 6G resolutions up to and including 4K at 60Hz (4:4:4, 8-bit) as well as support for 48-bit Deep Color, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0a specification. With a comprehensive EDID management feature that includes the ability to select between built in default EDID, EDID copied from connected sink devices, as well as a configurable EDID, this matrix can solve many inter-connectivity problems.

This unit also features (8) USB ports which supply up to 5V/1A power for use with connected optical fiber or AOC fiber cable extenders. By using these specialized cables your HDMI content can be extended much further than would be possible with normal HDMI cables. The built in OSD has the ability to display user editable general information text. This unit provides an intuitive set of front panel controls with an OSD as well as RS-232, Telnet, WebGUI and IR remote control options. This product has a 3 year warranty.

A-NeuVideo ANI-88HDRH Features

  • HDMI 2.0a and DVI 1.0 compliant
  • HDCP 1.4 and 2.2 compliant
  • 8x 6G HDMI inputs can be matrixed to 8x 6G displays
  • Supports HDTV resolutions up to 4K (3840x2160 at 24/25/30/50/60Hz & 4096x2160 at 24/25/30/50/60Hz) and VGA-WUXGA (RB)
  • Supports a maximum data rate up to 6Gbps with deep color support up to 1080p, 48bit
  • Supports (6) internal EDIDs, (8) external EDIDs copied from connected devices and (4) user provided EDIDs
  • 8x USB ports to supply 5V/1A power to optical fiber and AOC fiber extension cables
  • OSD with user customizable information text
  • Intuitive control interface including Telnet, WebGUI, OSD, IR remote and RS-232
  • Easy firmware update via USB thumb drive in the field

Key Features

  • Seamlessly switch between 8 HDMI sources with this 4K HDMI Matrix Switcher.
  • Enjoy stunning video quality with HDR and HDCP 2.2 support for crystal-clear visuals.
  • Control your video distribution via IR, RS-232, or USB for ultimate flexibility.
  • Power USB devices directly from the switcher with its convenient USB power ports.
  • Experience low latency switching, perfect for live events and real-time applications.
  • This reliable HDMI Switcher supports resolutions up to 4K at 60Hz for pro video.

What's in the box:

  • A-NeuVideo ANI-88HDRH 8x8 HDR HDCP 2.2 4k at 60Hz HDMI 18G Matrix Switcher Scaler with USB Power Ports
  • Remote Control Unit
  • Rack Ear Set
  • 24V/6.25A Adaptor with Power Cord
  • User Guide
  • A-NeuVideo 3 Year Warranty
