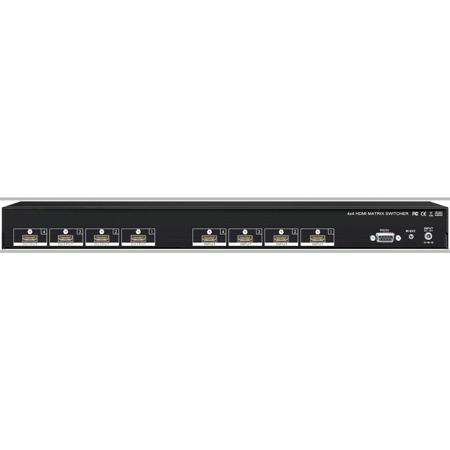

A-NeuVideo HD-44G 4x4 HDMI HDTV Matrix Routing Switcher Selector
See all A-NeuVideo items

A-NeuVideo HD-44G 4x4 HDMI HDTV Matrix Routing Switcher Selector

SKU: ANIHD44G
Be the first to review this item

This item is no longer available.

Recommended Alternatives

A-NeuVideo ANI-PiP-41UHD: Picture 1 regular
A-NeuVideo ANI-PiP-41UHD 4x1 4K UHD Quad/PiP/PoP Multiviewer Seamless Switcher
$379.50$331.20
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo HD-44G Specifications

  • Type of HDMI Switcher

    4x HDMI Inputs to 4x HDMI Outputs Matrix Switcher

  • HDMI Support

    HD 1080p at 60Hz, H36-bit Deep color, (1.3b) formats

  • HDCP Support

    HDCP 1.2 Compliant

  • Video Bandwidth

    Double Data Rates: 225MHz

  • Digital Video Support

    Full HD resolutions: 480i / 480p / 720p / 1080i / 1080p

  • Digital Audio Support

    Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master (PCM-2CH)

  • Controls

    IR Remote Control
    IR External port (OD 3.5mm ear phone Jack)
    Select & Function buttons on front panel
    RS-232 series interface

  • Function Control Keys

    ALL / OFF / RECALL / ENTER / MEMORY / LOCK / EDID

  • Infrared Frequency

    38kHz

  • IR External Distance

    984' (299.93m)

  • HDMI I/O Connector

    HDMI Type A - SMD 19pin female type

  • Rack Mount

    Rack Mount 1RU High 19 in (with rack mount)

  • Power Supply

    DC12V /3A, Universal world wide Type 50/60Hz, 100-230VAC

  • Power Consumption

    2150mA Maximum

  • Operating Temperature

    32 to 100 deg. F (0 to 38 deg. C)

  • Safety Approvals

    CE, FCC, RoHS

  • Dimensions (LxWxH)

    17.5 x 8 x 1.75" (444.50 x 203.20 x 44.45mm)

  • Weight

    Unit only: 5.5 lbs (2.49kg)
    8.2 lbs (3.72kg)

  • UPC Code

    857391003635

About A-NeuVideo HD-44G

The HD-44G is professional 4x4 matrix routing switch. Supporting (4) HDMI Inputs and (4) HDMI Outputs. The HD-44G is based on HDMI standards and supports full resolution HDMI video with embedded EDID. With a signal bandwidth of 225Mhz, there is no signal degradation. High definition digital signals can be selected and distributed from any of the (4) Inputs to any of the (4) Outputs in any combination.

This switcher is certified as being fully HDCP 1.2 compliant and is full HD HDMI V1.3b compatible with RoHS, CE, FCC certifications. Supports UXGA/WUXGA/DVI 1920x1200 resolutions to any HD display. Supports high resolution HDMI sources routed to HDMI displays, monitors, projector or audio receivers. The EDID management can be selected between (7) different modes. Control is provided via front panel push buttons, IR remote and RS-232. A RS-232 Windows GUI interface is provided for matrix routing control (Windows only). This product has a 1 year warranty.

A-NeuVideo HD-44G Features

  • 4x HDMI digital source devices matrix switched to (4) HDMI devices
  • HDMI digital video w/ embedded audio, DVI format and HDCP 1.2 compliant
  • 7x function key control and worldwide EDID modes for HDTV resolutions
  • Link clock rate of 225MHz, supports HDMI 1.3b
  • Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV resolutions from 480i/480p, 576i/576p, 720p, 1080i & 1080p
  • Compatible with all HDMI source devices, PC monitors, Plasma HD displays, HDTVs and audio receivers/amplifiers
  • Digital video TMDS formats resolutions up to 1080p-60 with 36-bit Deep color
  • Digital Audio Support: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
  • Various User Interface Control: Windows based GUI control via RS-232 port, Front panel push button, IR wireless remote control, Third party RS-232 controller (via simple ASCII)
  • Supports Worldwide Control Functions: ALL/OFF/RECALL/ENTER/MEMORY/EDID/LOCK
  • Supports EDID Modes: Embedded EDID Modes: FSS/H24-3D/H24-3D-M/H36-3D/H36-3D-M/DVI-D 1280x1024-60Hz/DVI-D 1920x1200-60Hz, External Modes: Learning mode
  • Input & output status via front panel
  • Supports IR remote and IR extender for a distance of up to - 984' (300m) Maximum
  • EDID configuration via internal modes

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo HD-44G 4x4 HDMI HDTV Matrix Routing Switcher Selector
  • RS-232 V2.0 Protocol Instructions
  • Master Wireless IR Remote Control (SW-HD44)
  • 19 " Ear Mount Bracket (Part# 1U-440L)
  • HD-100 IR Extender Receiver Set
  • CD Contents: Windows GUI/ISP V1.0 Windows Driver
  • HDMI Locking Post Replacement Screws
  • User Guide
  • Worldwide Universal Power Supply: DC12V 3A Input: (100-240VAC AC50/60Hz)
  • A-NeuVideo 1 Year Warranty
