About A-NeuVideo HD-88AK

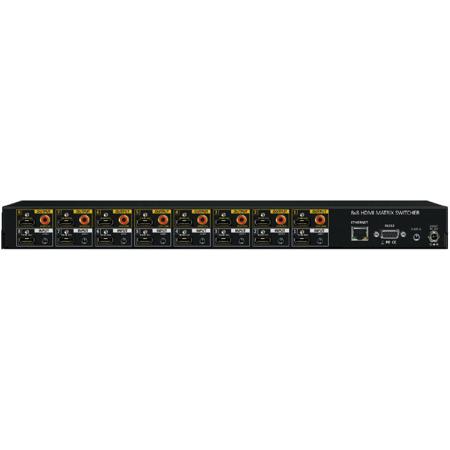

The HD-88AK is a professional 8x8 matrix routing switch. Supporting (8) HDMI Inputs and (8) Auxiliary Audio Inputs with (8) HDMI and (8) SPDIF Audio Outputs. The HD-88AK is based on HDMI standards and supports full resolution HDMI video with embedded EDID. With a signal bandwidth of 340Mhz, there is no signal degradation. High definition digital signals can be selected and distributed to any (8) Inputs to (8) outputs. This switcher is certified as being fully CEC, ARC and HDCP 2.0 compliant, full HD 4K2K HDMI V1.4a 3D formats with data rates up to 6.75Gbps. Supports 4K2K@30Hz, UXGA/WUXGA/DVI 1920x1200 resolutions to any HD display.
The HD-88AK has (1) HDMI and Auxiliary Audio (analog stereo audio) connector for each Input. If your source is DVI, you can insert an external audio signal to embed onto the HDMI signal. There is one digital audio (S/PDIF) output per channel that will de-embed the audio signal. This feature allows direct connection to an audio amplifier/receiver without the problems of EDID/HDCP. EDID management can be selected between (7) different modes. Control is provided via front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). A RS-232/Ethernet Windows GUI software program is provided for matrix routing control (Windows only). This product has a 1 year warranty.
A-NeuVideo HD-88AK Features
- 8x HDMI with Auxiliary Audio (Analog Audio) source devices matrix switched to (8) HDMI with S/PDIF output destinations
- HDMI digital video w/ embedded HDCP, DVI formats and CEC/HDCP 2.0 compliant
- Worldwide EDID control modes for full HDMI 4K2K (24/30Hz) HD video resolutions
- Link speeds of up to 6.75Gbps (link clock rate of 340MHz), Supports HDMI 4K2K, 1.4a 3D formats
- Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K (24/30Hz)
- Compatible with all HDMI source devices, PC monitors, Plasma HD displays, HDTVs and audio receivers or audio amplifiers
- Digital video TMDS formats resolutions up to 4K2K with Deep color 36bit
- Digital Audio Support: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
- Audio Input: Supports Auxiliary Audio (Analog stereo audio)
- Audio Output: Supports Digital audio ARC or Digital audio S/PDIF (from HDMI source or Auxiliary Audio)
- Various User Interface Control: Windows based GUI control via RS-232 port, Front panel push button, IR wireless remote control, Ethernet switch control, Third party RS-232 controller (via simple ASCII)
- Using the build-in booster, each HDMI Output port is capable of driving cable lengths of 1080p up to 98' (30m) & 4K2K up to 66' (20m)
- The HD-88AK HDMI Outputs contain a booster enabling longer cable runs without using amplifier/repeaters. HDMI specification is 15M or 50 feet. The HD-88AK is capable of supporting 30M or 98 feet
- Supports (10) World Wide Control Function Keys: Full function front panel controls: ARC / AUX/ ALL / OFF / EDID / LOCK / RECALL / MEMORY / ENTER
- Supports EDID Modes: Embedded EDID Modes: FSS/ H24-3D/ H24-3D-M/ H36-3D/ H36-3D-M/ 4K2K-3D / DVI-D 1920x1200-60Hz, External Modes: Learning Mode. Automatic scanning input & output status via LED show on front panel
- Automatic scanning of input & output status via LCM show on front panel
- Supports IR remotes and IR extenders for distances up to 984' (300m) Maximum
- Supports universal power adaptor AC90V-AC240V, 50/60Hz
