A-NeuVideo ANI-HDB70X 4K/30 HDMI Over Cat 6/5e Cable Extender Set with IR Transmitter and Receiver
SKU: ANIHDB70X
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About A-NeuVideo ANI-HDB70X
The ANI-HDB70X CAT5e/CAT6 HDMI Extender is a tool which can extend your HDMI signal over 230ft / 70M to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by LAN cable. It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 230ft outside, also you can control the Sink in the Source side which is 230ft outside by using the HDMI Extender. This product has a 3 year warranty.
A-NeuVideo ANI-HDB70X Features
- POC (Power Over Cable) function is supported, either TX or RX is powered by 24V@1A power supply, the another does not need power supply from the DC jack
- POC Power consumption is less than 10W
- Use single UTP LAN cable (CAT5E/6) to substitute HDMI cable to achieve long distance transmission
- UTP termination follows the standard of direct interconnection method.
- Transmission distance: Over CAT6 cable
- 230 ft / 70M: 1080p@60Hz@36bit; 3D 1080p@30Hz@36bit
- 131 ft / 40M: 1080p@60Hz@48bit; 1080p@120Hz@24bit; 3D 1080p@60Hz@36bit; 4K2K@30Hz@24bit
- Support display resolutions up to 4K2K@30Hz
- Full HD support: 1080p@60Hz@48bit/pixels, 1080p@120Hz@24bit/pixels, 3D 1080p@60Hz and 4K2K@30Hz@24bit

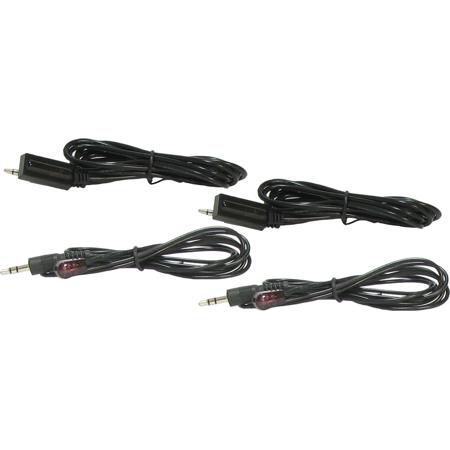

- Transfer Bidirectional Infrared control signal together with the HDMI signal
- Transfer Bidirectional RS-232 control signal together with the HDMI signal
