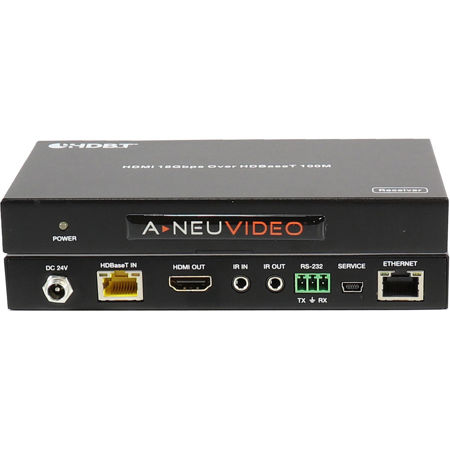

A-NeuVideo 328' ANI-HDR-100 HDMI 4K HDR 18Gbps PoH Over Cat6 Extender Kit
See all A-NeuVideo items

A-NeuVideo 328' ANI-HDR-100 HDMI 4K HDR 18Gbps PoH Over Cat6 Extender Kit

SKU: ANIHDR100
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo ANI-HDR-100 Specifications

  • HDMI Compliance

    HDMI 2.0b

  • HDCP Compliance

    HDCP 2.2 and HDCP 1.4

  • Video Bandwidth

    18Gbps

  • Video Resolutions

    Up to 4K2K at 50/60Hz (YUV4:4:4), 4K2K at 30Hz,1080p at 120Hz and 1080p 3D at 60Hz

  • Color Space

    RGB, YCbCr 4:4:4, YCbCr 4:2:2

  • Color Depth

    10-bit, 12-bit

  • HDMI Audio Formats (Pass-through)

    LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

  • Optical Audio Formats

    LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH

  • ESD Protection

    Human body model:
    +/-8KV (air-gap discharge)
    +/-4KV (contact discharge)

  • Transmitter Inputs

    HDMI Type A [19-pin female]
    IR INPUT [3.5mm Stereo Mini-jack]
    RS-232 [Phoenix jack]
    Service [Mini-USB jack]
    Ethernet In/Out [RJ45]

  • Transmitter Outputs

    HDBaseT Out [RJ45]
    IR OUTPUT [3.5mm Stereo Mini-jack]

  • Receiver Inputs

    HDBaseT In [RJ45]
    Ethernet In/Out [RJ45]
    IR INPUT [3.5mm Stereo Mini-jack]
    RS-232 [Phoenix jack]
    Service [Mini-USB jack]

  • Receiver Outputs

    HDMI Type A [19-pin female]
    IR INPUT [3.5mm Stereo Mini-jack]

  • Transmission Distance

    Over CAT6 cable
    328' (100m): 1080p at 60Hz 36bit; 3D1080p at 30Hz 36bit
    230' (70M): 1080p at 60Hz at 48bit; 1080p at 120Hz at 24bit; 3D-1080p at 60Hz at 36bit; 4K2K at 30Hz at 24bit; 4K2K at 50/60Hz (YUV420); 4K2K at 50/60Hz (YUV444)

  • Housing

    Metal Enclosure

  • Power Supply

    Input: AC100 - 240V 50/60Hz / Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Relative Humidity

    20-90% RH (no condensation)

  • Power Consumption

    24W (Max)

  • Dimensions (WxDxH)

    157 x 90 x 20mm (6.18 x 3.54 x 0.79")

  • Weight

    333g (11.75 oz)

About A-NeuVideo ANI-HDR-100

The ANI-HDR-100 18Gbps HDMI Extender is a tool which can extend your HDMI signal over 328'/100M to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by LAN cable. It also supports Transfer Bidirectional infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 328' outside, also you can control the Sink in the Source side which is 328' outside by using the HDMI Extender. This product come with a 3 year warranty.

A-NeuVideo ANI-HDR-100 Features

  • HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
  • Video resolutions up to 4K2K at 50/60Hz (YUV444)
  • 10bits HDR (High Dynamic Range) pass through
  • Supports HDMI High Bit Rate (HBR) audio pass through
  • Supports CEC bypass
  • Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
  • POC (Power Over Cable) function is supported, either the TX or RX is powered by 24V at 1A power supply, the other does not need a power supply from the DC jack. POC power consumption is less than 10W
  • Transfer Bidirectional infrared control signal together with the HDMI signal
  • Transfer Bidirectional RS-232 control signal together with the HDMI signal

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo ANI-HDR-100 HDMI 18Gbps Transmitter
  • ANI-HDR-100 HDMI 18Gbps Receiver
  • 2x Wideband IR Tx
  • 2x Wideband IR Rx
  • 24V/1A Power Adapter
  • User Guide
  • A-NeuVideo 3 Year Warranty
