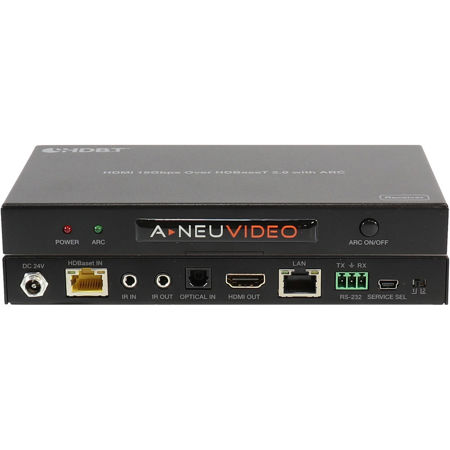

A-NeuVideo 330' ANI-HDR-200 HDMI 4K HDR Over HDBaseT 2.0 ACR Extender Kit
See all A-NeuVideo items

A-NeuVideo 330' ANI-HDR-200 HDMI 4K HDR 18Gbps PoH Over HDBaseT 2.0 ACR Extender Kit

SKU: ANIHDR200
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo ANI-HDR-200 Specifications

  • HDMI Compliance

    HDMI 2.0b

  • HDCP Compliance

    HDCP 2.2 and HDCP 1.4

  • Video Bandwidth

    18Gbps

  • Video Resolutions

    Up to 4K2K at 50/60Hz (YUV4:4:4), 4K2K at 30Hz,1080p at 120Hz and 1080p 3D at 60Hz

  • Color Space

    RGB, YCbCr 4:4:4, YCbCr 4:2:2

  • Color Depth

    8-bit,10-bit, 12-bit

  • HDMI Audio Formats (Pass-through)

    LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

  • Optical Audio Formats

    LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH

  • ESD Protection

    Human body model:
    +/-8KV (air-gap discharge)
    +/-4KV (contact discharge)

  • Transmitter Inputs

    HDMI Type A [19-pin female]
    IR In [3.5mm Stereo Mini-jack]
    LAN [RJ45]

  • Transmitter Outputs

    HDBaseT Out [RJ45]
    IR Out [3.5mm Stereo Mini-jack]
    Optical Out [S/PDIF]

  • Receiver Inputs

    HDBaseT In [RJ45]
    IR In [3.5mm Stereo Mini-jack]
    Optical In [S/PDIF]

  • Receiver Outputs

    HDMI Type A [19-pin female]
    IR Out [3.5mm Stereo Mini-jack]
    LAN [RJ45]

  • Transmission Distance

    Over CAT6 Cable:
    330' (100m):
    1080p at 60Hz 36bit
    3D-1080p at 30Hz 36bit

    230' (70m):
    1080p at 60Hz at 48bit
    1080p at 120Hz at 24bit
    3D-1080p at 60Hz at 36bit
    4K2K at 30Hz at 24bit
    4K2K at 50/60Hz (YUV444)
    4K2K at 50/60Hz (YUV420)

    Over CAT6+ Cable:
    330' (100m):
    4K2K at 50/60Hz (YUV444)
    4K2K at 50/60Hz (YUV420)

  • Housing

    Metal Enclosure

  • Power Supply

    Input: AC100 - 240V 50/60Hz / Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Relative Humidity

    20-90% RH (no condensation)

  • Power Consumption

    24W (Max)

  • Dimensions (WxDxH)

    172 x 97.5 x 20mm (6.77 x 3.84 x 0.79")

  • Weight

    Transmitter: 420g (14.82 oz)
    Receiver: 425g (14.99 oz)

About A-NeuVideo ANI-HDR-200

The ANI-HDR-200 HDBaseT extender enables transmission of video resolutions up to 4K2K at 60Hz(YUV 4:4:4), along with HD audio, dedicated optical audio pathways, 100BaseT Ethernet, Two-Way IR, RS-232, 24V POC and ARC signals up to 330'/100M. ARC (Audio Return Channel) function enables audio from a compatible display to be routed back from the receiver unit to the transmitter. Using the latest HDBaseT 2.0 technology can make your home or office set-up more efficient and easy to use. This product come with a 3 year warranty.

A-NeuVideo ANI-HDR-200 Features

  • HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
  • Video resolutions up to 4K2K at 60Hz (4:4:4), 4K2K at 30Hz, 1080p at 120Hz
  • Audio up to 7.1 channels of High Definition audio pass through (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • HDBaseT 2.0 over a single CAT5e/6/7 cable up to 330ft/100M distance
  • 5-Play Convergence: HD video & audio, IR/RS-232/Ethernet/POC
  • Two-Way POC (Power over Cable) supports either TX or RX powered by 24V at 1A, the other one doesn't need power supply
  • ARC and CEC supported

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo ANI-HDR-200 HDMI Extender Transmitter
  • ANI-HDR-200 HDMI Extender Receiver
  • 2x Wideband IR Tx
  • 2x Wideband IR Rx
  • 4x Mounting Ears
  • 24V/1A Power Adapter
  • User Guide
  • A-NeuVideo 3 Year Warranty
