A-NeuVideo 230' ANI-HDR-70 HDMI 4K HDR 18Gbps PoH OVER CAT5e/6 Extender Kit

SKU: ANIHDR70

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

A-NeuVideo ANI-HDR-70 Specifications

  • HDMI Compliance

    HDMI 2.0b

  • HDCP Compliance

    HDCP 2.2 and HDCP 1.4

  • Video Bandwidth

    18Gbps

  • Video Resolutions

    Up to 4K2K at 50/60Hz (YUV4:4:4), 4K2K at 30Hz,1080p at 120Hz and 1080p 3D at 60Hz

  • Color Space

    RGB, YCbCr 4:4:4, YCbCr 4:2:2

  • Color Depth

    10-bit, 12-bit

  • HDMI Audio Formats (Pass-through)

    LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

  • Optical Audio Formats

    LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH

  • ESD Protection

    Human body model:
    +/-8KV (air-gap discharge)
    +/-4KV (contact discharge)

  • Transmitter Inputs

    HDMI Type A [19-pin female]
    IR INPUT [3.5mm Stereo Mini-jack]
    RS-232 [Phoenix jack]
    Service [Mini-USB jack]

  • Transmitter Outputs

    HDBaseT Out [RJ45]
    IR OUTPUT [3.5mm Stereo Mini-jack]

  • Receiver Inputs

    HDBaseT In [RJ45]
    IR INPUT [3.5mm Stereo Mini-jack]
    RS-232 [Phoenix jack]
    Service [Mini-USB jack]

  • Receiver Outputs

    HDMI Type A [19-pin female]
    IR INPUT [3.5mm Stereo Mini-jack]

  • Housing

    Metal Enclosure

  • Power Supply

    Input: AC100 - 240V 50/60Hz / Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Relative Humidity

    20-90% RH (no condensation)

  • Power Consumption

    24W (Max)

  • Dimensions (WxDxH)

    157 x 90 x 20mm (6.18 x 3.54 x 0.79")

  • Weight

    333g (11.75 oz)

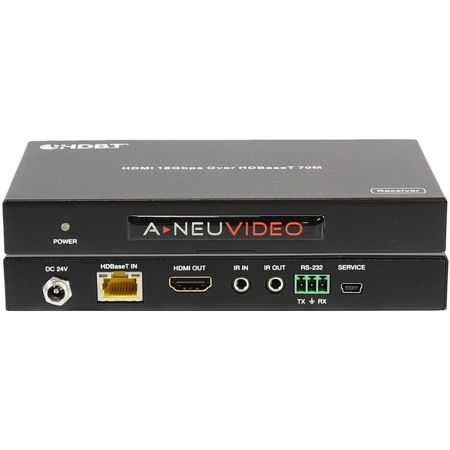

About A-NeuVideo ANI-HDR-70

The ANI-HDR-70 18Gbps HDMI HDBaseT Extender Transmitter/Receiver kit is a tool which can extend your HDMI signal over 230' (70m) to a compatible display for high dynamic range (HDR) formats. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by LAN cable and is HDCP 2.2 compliant and supports 4K/UHD video at 60Hz with 4:4:4 Chroma sampling, as well as HDMI data rates up to 18Gbps. The ANI-HDR-70 provides HDMI transmission up to 230' (70m) for 1080p video and up to 130' (40m) for 4K HDR over CAT6a/7 cable.

It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal so you can control the Source in the Sink side which is 230' outside, also you can control the Sink in the Source side which is 230' outside by using the HDMI Extender. These units feature visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. This product come with a 3 year warranty.

A-NeuVideo ANI-HDR-70 Features

  • Fully supports video resolutions, audio formats and color space formats for HDMI 2.0 specifications (18Gbps), HDCP 2.2 and DVI compliant
  • Video resolutions up to 4K/UHD capability at 60Hz with 4:4:4 Chroma sampling, plus support for HDR formats
  • Supports 4K HDR10 at 60Hz (4:2:0 Chroma subsampling, 10-bit color) pass through
  • Enables HDBaseT transmission of HDMI up to 18Gbps using extremely light video compression with no latency
  • Supports HDMI High Bit Rate (HBR) audio pass through
  • Supports CEC bypass
  • Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
  • POC (Power Over Cable) function is supported, either the TX or RX is powered by 24V at 1A power supply, the other does not need a power supply from the DC jack. POC power consumption is less than 10W
  • Transfer Bidirectional infrared control signal together with the HDMI signal
  • Transfer Bidirectional RS-232 control signal together with the HDMI signal

What's in the box:

  • A-NeuVideo ANI-HDR-70 HDMI 18Gbps Transmitter
  • ANI-HDR-70 HDMI 18Gbps Receiver
  • 2x Wideband IR Tx
  • 2x Wideband IR Rx
  • 24V/1A Power Adapter
  • User Guide
  • A-NeuVideo 3 Year Warranty
