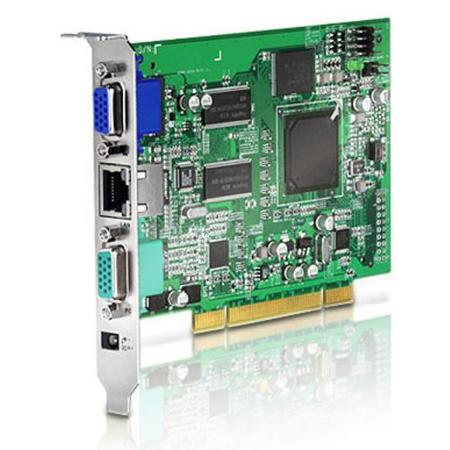

Aten IP8000 Remote KVM Access PCI Card

1

1

1x SPHD-15 Female (Green)

1x HDB-15 Female (Blue)

1x RJ-45 Female

1x DC Jack

Link: 1 (Green)
10/100 Mbps: 1 (Green / Orange)

USB

1600 x 1200 at 60Hz; DDC2B

DC5V, 6W

0 to 50 deg. C / 32 to 122 deg. F

-20 to 60 deg. C / -4 to 140 deg. F

0 - 80% RH, Non-condensing

For best results we recommend that the computers used to access the IP8000 control unit have at least a P III 1 GHz processor and that the screen resolution is set to 1024 x 768.
Browsers must support 128-bit SSL data encryption.
For best results we recommend that the internet connection speed be at least 128 kbps.

For the browser-based Java Applet and AP Java Client, you must have Sun's Java Runtime Environment (JRE) 6, Update 3 or higher.
For the Log Server, you must have the Microsoft Jet OLEDB 4.0 or higher driver installed.

640 x 480: 60, 72, 75, 85, 90, 100, 120
720 x 400: 70, 75
800 x 600: 56, 60, 72, 75, 85, 90, 100, 120
1024 x 768: 60, 70, 75, 85, 90, 100
1152 x 864: 60, 70, 75, 85
1280 x 1024: 60, 70, 75
1600 x 1200: 60

Windows: 2000 and higher
Linux:
RedHat: 7.1 and higher
SuSE: 8.2 and higher
Mandriva (Mandrake): 9.0 and higher
UNIX:
AIX 4.3 and higher
FreeBSD 4.2 and higher
Novell:
Netware: 5.0 and higher

USB CDROM Drives
USB Floppy Drives
USB Flash Drives
IDE CDROM Drives
Image Files

15.35 x 12.00 x 2.15cm / 6.04 x 4.72 x 0.85"

0.10kg / 0.22lbs

672792112270
