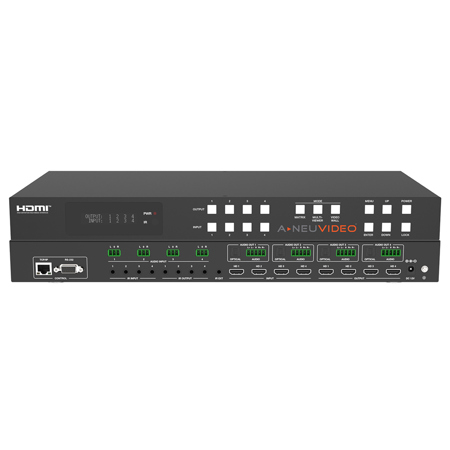

A-NeuVideo 4x4 4K60 UHD HDR Quad/PiP/PoP Multiviewer Seamless Video Switcher, Black

SKU: ANIPIP44UHD MFR: ANI-PIP-44UHD
Earn VIP Reward Points

Key Features

  • Experience seamless video switching with this 4x4 4K60 UHD HDMI video switcher.
  • Create dynamic displays using Quad, PiP, and PoP multiviewer modes for enhanced viewing.
  • Enjoy wide compatibility with HDMI 2.0 and HDCP 2.2 for flawless video distribution.
  • Control your video setup via TCP/IP, RS-232, or IR, offering flexible integration options.
  • Achieve high-resolution output with support for 4K2K@60Hz for crystal-clear visuals.
  • Ensure reliable connection with locking power adapter and robust metal enclosure design.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

A-NeuVideo ANI-PIP-44UHD Specifications

  • Color

    Black

  • Housing

    Metal Enclosure

  • Input Ports

    4x HDMI Input (Type A, 19-pin female)
    4x L/R Audio Input (3.81mm, 3pin Phoenix Connector)

  • Output Ports

    4x HDMI Output (Type A, 19-pin female)
    4x Optical Audio Output (S/PDIF)
    4x L/R Audio Output (3.81mm, 5pin Phoenix Connector)

  • Control Ports

    TCP/IP (RJ45)
    RS-232 (D-Sub 9)
    IR EXT (3.5mm, Stereo Mini-jack)
    4x IR Input (3.5mm, Stereo Mini-jack)
    4x IR Output (3.5mm, Stereo Mini-jack)

  • HDMI Compliance

    HDMI 2.0

  • HDCP Compliance

    HDCP 2.2

  • Video Bandwidth

    594MHz/18Gbps

  • Video Resolution

    480i -1080P@50/60Hz, 4K2K@24/30Hz, 4K2K@60Hz

  • Color Space

    RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

  • Color Depth

    8/10/12-bit

  • Audio Formats

    LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio

  • ESD Protection

    Human Body Model:
    +/-12kV (Air Discharge)
    +/-8kV (Contact Discharge)

  • Operating Temperature

    32 Degree F-104 Degree F (0 Degree C-40 Degree C)

  • Storage Temperature

    -4 Degree F -140 Degree F (-20 Degree C - 60 Degree C)

  • Relative Humidity

    20-90% RH (non-condensing)

  • Power Consumption (Max)

    25W (Max)

  • Power Supply Input

    AC 100-240V 50/60Hz, Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)

  • Video Resolution HDMI Cable Length

    The use of "Premium High Speed HDMI" cable is highly recommended. (HDMI In/Out)
    4K60: 16' (5m)
    4K30: 32' (10m)
    1080P60: 50' (15m)

  • Dimensions (W x D x H)

    17.2 x 1.9 x 10.6" (440 x 203 x 44.5mm)

  • Weight

    5.6 lbs (2.55kg)

  • UPC Code

    859777007879

About A-NeuVideo ANI-PIP-44UHD

Become a master of video transmission with the advanced 4x4 4K60 UHD HDR Quad/PiP/PoP Multiviewer Seamless Video Switcher. This high-tech device is the ultimate solution for transmitting video from four HDMI sources to four HDTV displays, offering you unparalleled control and flexibility.

Boasting sophisticated video wall and multi-viewer functions, this innovative switcher provides a variety of display modes to suit your needs. With the added support of a 4x4 IR matrix, audio embedding and de-embedding, you have the power to customize your video transmission experience.

Experience the state-of-the-art video resolution of up to 4K@60Hz 4:4:4, ensuring the highest quality visuals for your viewing pleasure. Each of the sources can be individually scaled, giving you the freedom to adjust and optimize each video source to your preference.

The seamless switching feature of this switcher guarantees a smooth picture transition without any frame loss, providing a continuous and uninterrupted video experience.

Control is at your fingertips with multiple options for operating this switcher. Whether you prefer using the front panel buttons, LCD screen, IR remote, RS-232, or Web GUI, you have the flexibility to choose the method that suits you best.

Perfect for applications such as video conferencing, live events, and control rooms, the 4x4 4K60 UHD HDR Quad/PiP/PoP Multiviewer Seamless Video Switcher is your key to unlocking a superior video transmission experience.

A-NeuVideo ANI-PIP-44UHD Features

  • HDMI 2.0 and HDCP 2.2 compliant
  • Supports HDR
  • Video resolution is up to 4K@60Hz 4:4:4
  • Supports 18Gbps lossless compressed video bandwidth
  • Supports 12 display categories in multi-viewer mode, and 9 splicing modes in video wall mode
  • HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTSEX, DTS-96/24, DTS High Res, DTS-HD Master Audio
  • Supports CEC control, and multiple video resolution output
  • Advanced EDID management
  • Control via front panel buttons, LCD screen, IR remote, RS-232 & Web GUI

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience seamless video switching with this 4x4 4K60 UHD HDMI video switcher.
  • Create dynamic displays using Quad, PiP, and PoP multiviewer modes for enhanced viewing.
  • Enjoy wide compatibility with HDMI 2.0 and HDCP 2.2 for flawless video distribution.
  • Control your video setup via TCP/IP, RS-232, or IR, offering flexible integration options.
  • Achieve high-resolution output with support for 4K2K@60Hz for crystal-clear visuals.
  • Ensure reliable connection with locking power adapter and robust metal enclosure design.

What's in the box:

  • A-NeuVideo 4x4 4K60 UHD HDR Quad/PiP/PoP Multiviewer Seamless Video Switcher (Black)
  • 12V/2.5A Locking Power Adapter
  • 5x 4.92' 12V IR Wideband Receiver Cable
  • 4x 4.92' IR Blaster Cable
  • 4.92' RS-232 Serial Cable (Male to Female head)
  • 4x 5 Pin-3.81mm Phoenix Connector
  • 4x 3 Pin-3.81mm Phoenix Connector
  • 8x Machine Screw (KM3x6)
  • 2x Mounting Ear
  • A-NeuVideo 3 Year Limited Warranty
