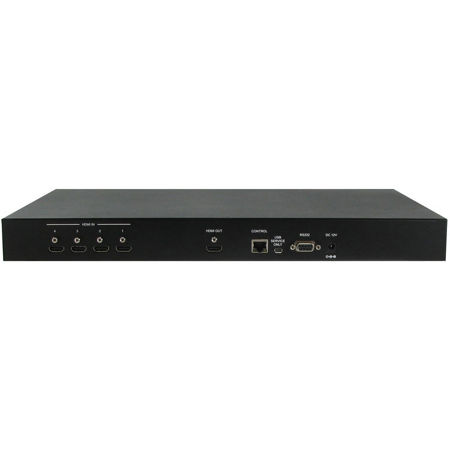

A-NeuVideo 4x1 HDMI Seamless Quad PiP/PoP Scaler with Graphic Option
See all A-NeuVideo items

A-NeuVideo 4x1 HDMI Seamless Quad PiP/PoP Scaler with Graphic Option

SKU: ANIQUADGRPHX
Be the first to review this item

This item is no longer available.

Recommended Alternatives

A-NeuVideo ANI-PiP-41UHD: Picture 1 regular
A-NeuVideo ANI-PiP-41UHD 4x1 4K UHD Quad/PiP/PoP Multiviewer Seamless Switcher
$379.50$331.20
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo Quad PiP/PoP Scaler Specifications

  • Video Bandwidth

    225MHz/6.75Gbps

  • Input Ports

    4x HDMI

  • Output Port

    1x HDMI

  • Supports Input Resolutions

    480i-1080p

  • Supports Output Resolutions

    1080p at 60Hz

  • HDMI Input Cable Distance

    Up to (Approx.) 50 ft/15M 1080p at 12bits

  • HDMI Output Cable Distance

    Up to (Approx.) 50 ft/15M 1080p at 8bits

  • Supports Sampling Rates

    32-192KHz

  • ESD Protection Human Body Model

    +/-8kV (air-gap discharge)
    +/-4kV (contact-gap discharge)

  • Power Supply

    12V/3A DC (US/EU standards, CE/FCC/UL certified)

  • Chassis Material

    Aluminum

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    20-90% RH (non-condensing)

  • Power Consumption

    18W

  • Dimensions (WxDxH)

    Jack Excluded: 17.2 x 9.7 x 1.7" (43.69 x 24.64 x 4.32cm)
    Jack Included: 17.2 x 9.7 x 1.9" (43.69 x 24.64 x 4.83cm)

  • Weight

    8.4 lbs (3.81kg)
    Unit only: 6.0 lbs (2.72kg)

  • UPC Code

    857391003840

About A-NeuVideo Quad PiP/PoP Scaler

The ANI-QUAD-GRPHX 4x1 HDMI Seamless Quad PiP Scaler is a high performance, high speed zooming/shrinking system that can be easily configure and controlled for quad or picture-in-picture video processing. Allowing (4) different input sources to be freely selected and arranged on one single display. Supporting output resolutions up to 1080p and audio up to 8CH 192KHz for both inputs and outputs. Screen setting hot keys with IR, RS-232, WebGUI and Telnet allows instant control and switching on the output display. Additionally, this unit features a free logo upload option that will appear on the output display. This product has a 3 year warranty.

A-NeuVideo Quad PiP/PoP Scaler Features

  • Seamless switching between channels and windows
  • Zoom and Shrink 4CH input images and/or overlay them
  • Supports PiP, PoP and multi-windows display
  • Supports OSD, RS-232, Telnet, WebGUI, Remote and On-panel controls
  • Fade-In-Out, Chromakey, Mirror and Rotation (90deg. left & right and 180deg. up & down) functions
  • (8) Screen setting hot keys and an extra (4) customizable favorite screen settings
  • Supports easy individual channel, size and position adjustment
  • Supports output image logo display with self-design logo file upload

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo 4x1 HDMI Seamless Quad PiP/PoP Scaler with Graphic Option
  • Remote Control
  • 12V/3A DC Power Adaptor
  • Rack Ear Sets
  • User Guide
  • A-NeuVideo 3 Year Warranty
