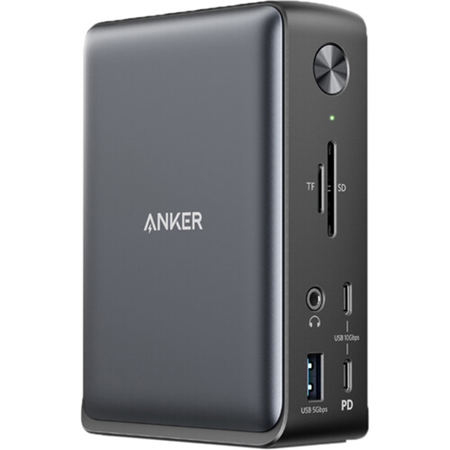

Anker 575 13-In-1 USB-C Docking Station with 135W Power Adapter
See all Anker items

Anker 575 13-In-1 USB-C Docking Station with 135W Power Adapter

SKU: ANK83921A2

This item is no longer available.

Recommended Alternatives

Anker USB 3.0 Data Hub: Picture 1 regular
Anker 60W 7-Port USB 3.0 Data Hub with 3 Smart Charging Ports, Black
$59.99
Anker PowerExpand: Picture 1 regular
Anker PowerExpand 6-in-1 USB-C PD Ethernet Hub
$55.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?PAUL V : highly rated

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Anker USB-C Docking Station Specifications

Ports

Ports

Jump to...

  • USB I/O

    2x USB-A 3.0 / 3.1/3.2 Gen 1
    1x USB-A 3.0 / 3.1/3.2 Gen 1 / Supports 7.5 W Output
    1x USB-C 3.1/3.2 Gen 2
    1x USB-C 3.1/3.2 Gen 2 / Supports 18 W Output

  • Network I/O

    1x RJ45 (10/100/1000 Mb/s)

  • Video I/O

    2x HDMI 2.0
    1x DisplayPort 1.4

  • Audio I/O

    1x 1/8" (3.5mm) Headphone/Microphone Combo Jack

  • Media Card Reader

    1x SDHC (UHS-I [104 MB/s])
    1x microSDHC (UHS-I [104 MB/s])

Host Connections

Jump to...

  • System Connection

    USB-C (Unspecified Interface)

  • Connection Type

    Detachable Cable

  • Powered Connection

    85W

General

Jump to...

  • Maximum Resolution Supported

    4096 x 2160 at 60Hz (Single Display)
    2560 x 1440 at 60Hz (Dual Display)
    1920 x 1080 at 60Hz (Triple Display)

  • OS Compatibility

    macOS 10.12 or Later
    Windows 8 to 11

  • UASP Support

    No

Power

Jump to...

  • Power Source

    AC Adapter

  • Power I/O

    Barrel Connector (Unspecified Diameter)

Physical

Jump to...

  • Cable Length

    3.3' (1m)

  • LED Indicator

    No

  • Lock Slot

    No

  • Dimensions (L x W x H)

    5 x 3.5 x 1.6" (125.8 x 88.6 x 41.6mm)

  • Weight

    13.1 oz (370g)

Other

Jump to...

  • UPC Code

    194644114831

About Anker USB-C Docking Station

Small Footprint, Superb Functionality
• PD 85W + 18W
• 4K @60Hz
• 10 Gbps

Compatibility

Host Requirements
The host device must support Power Delivery and DisplayPort Alt Mode or USB-C 3.1 (generation 1 or 2).

Supported Operating Systems
macOS 10.12 or later, Windows 8/10/11

Media Display
• When using macOS, content displayed will be mirrored
• The ability to display on 4 screens simultaneously depends on the capabilities of the laptop's graphics card

Maximum resolution when using a DisplayPort 1.4 USB-C laptop:
• Single monitor display: 3840x2160@60Hz via the HDMI port or DisplayPort
• Dual monitor display: 2560x1440@60Hz via 2 HDMI ports, or via the HDMI port and DisplayPort
• Triple monitor display: 1920x1080@60Hz via the HDMI ports and DisplayPort

Charging Information
This dock supports up to 85W of charging via the USB-C upstream port on the back of the dock (indicated with a computer icon). The USB-C Power Delivery port (indicated by "PD") supports 18W fast charging for your phone or tablet. The USB-A 3.0 port on the front supports 7.5W to charge smaller devices like smartwatches or headphones. The two USB-A data ports on the back of the dock do not support charging.

Anker USB-C Docking Station Features

  • Compatibility Information: Works with Windows 8, 10, and 11, and macOS 10.12 or later. Requires a USB-C port that supports DisplayPort Alt Mode and Power Delivery
  • Huge Expansion: Equipped with an 85W laptop-charging USB-C port, an 18W Power Delivery USB-C port, a USB-C data port, 3 USB-A ports, 2 HDMI ports, a DisplayPort, an Ethernet port, SD/microSD card slots, a 3.5mm AUX port, and a DC input
  • Simultaneous Charging: Connect your laptop to the 85W USB-C port and connect your phone or other mobile device to the 18W Power Delivery USB-C port to get simultaneous high-speed charging
  • Triple Display: Simultaneously stream media to up to 3 monitors in 1080p@60Hz via the DisplayPort and dual HDMI ports

Warranty Information

This product has a limited warranty of 18 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Compatibility Information: Works with Windows 8, 10, and 11, and macOS 10.12 or later
  • Huge Expansion: 85W USB-C, 18W PD USB-C, USB-C data, 3 USB-A, 2 HDMI, DisplayPort, Ethernet, etc
  • Connect your laptop to the 85W USB-C port & connect your phone or other mobile device to the 18W
  • Simultaneously stream media to up to 3 monitors in 1080p@60Hz via the DisplayPort & dual HDMI

What's in the box:

  • Anker 575 13-In-1 USB-C Docking Stations
  • 135W Power Adapter
  • Power Cord
  • 3' USB-C Cable
  • User Manual
  • Anker 18 Month Limited Warranty
