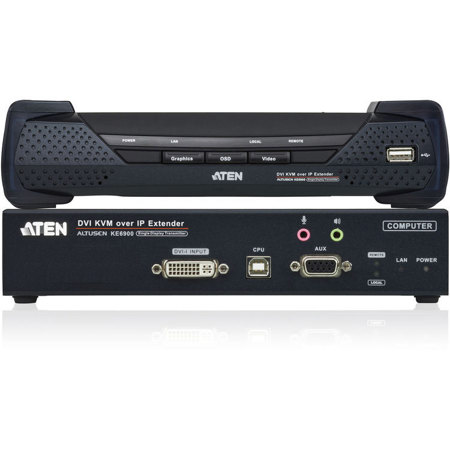

Aten KE6900 1x DVI KVM Over IP Extender Kit, Includes KE6900T Transmitter and KE6900R Receiver

When it comes to innovative connectivity and access management solutions, Aten's Altusen KE6900 DVI KVM Over IP Extender Kit stands out. This high-quality, durable product is designed to provide the ultimate solution for extending computers to consoles, whether they're on or off your IT infrastructure.

The KE6900 series is an IP-based DVI KVM Extender that enables access to a computer system from a remote USB console. This includes a USB keyboard, USB mouse, and DVI monitor, from any location over an intranet. The kit supports one DVI display at each end, ensuring a clear and detailed video transmission with a high resolution of up to 1920x1200 at 60Hz and 24-bit color depth.

The DVI KVM Over IP Extender Kit includes a transmitter unit that connects to the computer and a receiver unit that provides console access from a separate location. The computer can be accessed from the remote console over a standard TCP/IP network via a Cat5e cable, allowing for versatile point-to-point, point-to-multipoint, and multipoint-to-multipoint administration.

As a Matrix Extender, the KE6900 kit can connect single or multiple computers to consoles in several ways, including one-to-one (Extender mode), one-to-many (Splitter mode), many-to-one (Switch mode), or many-to-many (Matrix mode). The Matrix Manager software provides advanced features for username/password authentication, auto detection of all KE6900 devices on the same subnet, and defining connections that can be switched and shared.

The KE6900 series also boasts new security features, including AES-128bits encryption for secure data transmission and RADIUS, LDAP, AD, or remote user authentication for an added layer of connection security. With an On-Screen Display (OSD), RS-232 support, and Auto MDIX, the KE6900 series offers a cost-effective and convenient solution for full digital extension from anywhere on the intranet.

The KE6900 series supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz, DVI digital and analog monitor support, built-in 8KV/15KV ESD protection and 2KV surge protection, and supports stereo speakers and stereo microphone. It's also hot pluggable, rack mountable, and features upgradeable firmware.

Whether you need to extend a computer's KVM console any distance over a LAN or up to 100 meters by directly connecting the TX and RX units with a single Cat5e cable, the KE6900 series offers flexibility and unprecedented video quality. ATEN's advanced graphics processor ensures vivid and sharp quality on the remote monitor, regardless of the console's location.

The Matrix Manager allows for easy administration of all KE6900 devices over a network, using an intuitive, user-friendly web-based GUI. This makes the KE6900 series an ideal solution for any installation where you need to place the console where it is convenient, but want the computer to reside in a secure location - away from the keyboard, mouse, and display in use.

The KE6900 series is compatible with both Windows and Mac operating systems, making it a versatile option for a variety of users. With its high-quality video streaming and virtual media support, the KE6900 series is a reliable, user-friendly, and innovative solution for all your KVM extension needs.
