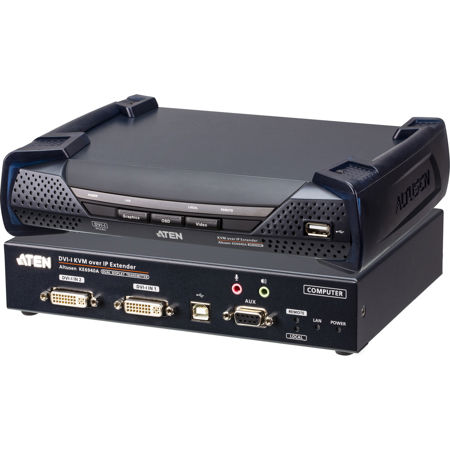

Aten KE6940 Dual DVI KVM Over IP Extender Kit, Includes KE6940T Transmitter and KE6940R Receiver

SKU: ANKE6940KT01 MFR: KE6940KIT01
Earn VIP Reward Points

Key Features

  • Extend your dual DVI KVM console reach with this Aten KVM Over IP Extender kit.
  • Enjoy high-resolution video up to 1920x1200 with this DVI KVM extender over IP.
  • Manage your servers remotely with this high performance KVM, featuring virtual media.
  • This Aten KVM switch supports both transmitter and receiver units for easy setup.
  • Utilize the USB Virtual Media for file sharing across your KVM over IP connection.
  • Get peace of mind with Aten's 3-year warranty on this durable KVM extender kit.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten KE6940 Specifications

  • USB Virtual Media

    Receiver: 2x USB Type A Female (White)

  • Console Ports

    Keyboard: 1x USB Type A Female (white)
    Video: 2x DVI-I
    Mouse: 1x USB Type A Female (White)
    Speaker: 1x Mini Stereo Jack (Green)
    Mic: 1x Mini Stereo Jack (Pink)
    RS-232: 1x DB-9 Male (Black)

  • KVM Ports

    Transmitter:
    KB / Mouse: 1x USB Type B Female (white)
    Speaker: 1x Mini Stereo Jack (Green)
    Mic: 1x Mini Stereo Jack (Pink)
    RS-232: 1x DB-9 Female (Black)
    Video: 2x DVI-I

  • Power Connectors

    1x DC Jack (Black)

  • LAN port

    1x RJ-45 (Black)

  • Switches

    Receiver:
    3x Pushbutton for OSD, Video, Graphics
    Console Selection / FW Upgrade: Slide switch
    Reset: Semi-recessed Pushbutton

  • LEDs

    LAN: 1 (Green / Orange)
    Power: 1 (Blue)
    Local: 1 (Green)
    Remote: 1 (Green)

  • Emulation: Keyboard / Mouse

    USB

  • Power Consumption

    DC 5V

  • Video Resolution

    Up to 1920 x 1200 at 60Hz

  • Housing

    Metal

  • Operating Temp.

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temp.

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-95% RH, Non-condensing

  • Dimensions (L x W x H)

    Transmitter: 21.50 x 16.29 x 4.56cm / 8.46 x 6.41 x 1.80"
    Receiver: 22.75 x 17.16 x 5.48cm / 8.96 x 6.76 x 2.16"

  • Weight

    Transmitter: 1.15kg / 2.54lbs Receiver: 1.25kg / 2.76lbs

  • UPC Code

    881317512802

About Aten KE6940

Are you looking to enhance your IT infrastructure with seamless connectivity and management solutions Adorama presents the Aten Altusen KE6940 Dual DVI KVM Over IP Extender Kit, a cutting-edge solution designed to extend computer access to consoles, whether on-site or remotely within your IT environment.

The KE6940 series leverages Aten's expertise in Over IP KVM solutions to facilitate remote access to a computer system via a USB console (USB keyboard, USB mouse, DVI monitor) across an intranet. This IP-based DVI KVM Extender features a Transmitter unit (KE6940T) that connects to the computer and a Receiver unit (KE6940R) that provides console access from a remote location. The connection is established over a standard TCP/IP network using Cat5e cables, supporting diverse configurations such as point-to-point, point-to-multipoint, and multipoint-to-multipoint.

Ideal for installations where the console needs to be in a convenient location while the computer remains in a secure, separate area, the KE6940 offers unparalleled flexibility. It operates in several modes, including Extender mode for one-to-one connections, Splitter mode for one-to-many configurations, Switch mode for many-to-one setups, and Matrix mode for many-to-many connections.

The Matrix Manager software enhances this extender's capabilities by offering advanced features such as username/password authentication, auto-detection of KE6940 devices on the same subnet, and the ability to define switchable and shareable connections. Security is a top priority, with AES-128 bit encryption ensuring protected data transmission and options for RADIUS, LDAP, AD, or remote user authentication to bolster connection security.

With an On-Screen Display (OSD), RS-232 support, and Auto MDIX, the KE6940 Dual DVI KVM Over IP Extender Kit is a cost-effective solution for full digital extension across your intranet. Additional features include:

- Dual console operation, allowing system control from both transmitter and receiver consoles.
- RS-232 serial ports for connecting serial devices such as touchscreens and barcode scanners.
- Superior video quality, supporting up to 1920 x 1200 resolution at 60Hz with 24-bit color depth.
- Compatibility with standard VGA resolutions and widescreen formats.
- High-quality video streaming and virtual media support.
- Built-in ESD and surge protection for device safety.
- Support for stereo speakers and microphones.
- Hot pluggable convenience and rack mountable design.
- Firmware that is easily upgradeable for future enhancements.

Whether you're extending a computer's KVM console over a LAN or directly connecting TX and RX units up to 100 meters apart with a single Cat5e cable, the KE6940 series offers the flexibility and quality needed for modern KVM management. Experience unprecedented video quality and advanced management with the Aten Altusen KE6940 Dual DVI KVM Over IP Extender Kit, available at Adorama.

Aten KE6940 Features

  • Dual DVI KVM Over IP Extender Kit for remote and on-site IT management
  • High-resolution support up to 1920x1200 at 60Hz with 24-bit color depth
  • Multiple operational modes including Extender, Splitter, Switch, and Matrix
  • Advanced security with AES-128 bit encryption and user authentication options
  • On-Screen Display (OSD) and RS-232 support for enhanced control and connectivity
  • Hot pluggable with easy firmware upgrades and rack mountable design

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your dual DVI KVM console reach with this Aten KVM Over IP Extender kit.
  • Enjoy high-resolution video up to 1920x1200 with this DVI KVM extender over IP.
  • Manage your servers remotely with this high performance KVM, featuring virtual media.
  • This Aten KVM switch supports both transmitter and receiver units for easy setup.
  • Utilize the USB Virtual Media for file sharing across your KVM over IP connection.
  • Get peace of mind with Aten's 3-year warranty on this durable KVM extender kit.

What's in the box:

  • KE6940T 2x DVI KVM Over IP Extender (Transmitter)
  • KE6940R DVI KVM Over IP Extender (Receiver)
  • 2x Power Adapters
  • 1x DVI-D Cable 2m
  • USB KVM Cable
  • Mounting Kit for KE6940T
  • User Instructions
  • Aten 3 Year Limited Warranty
