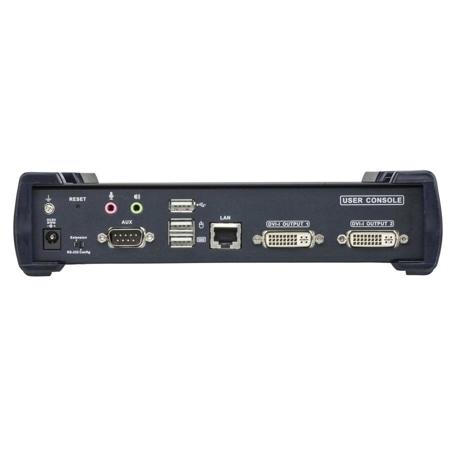

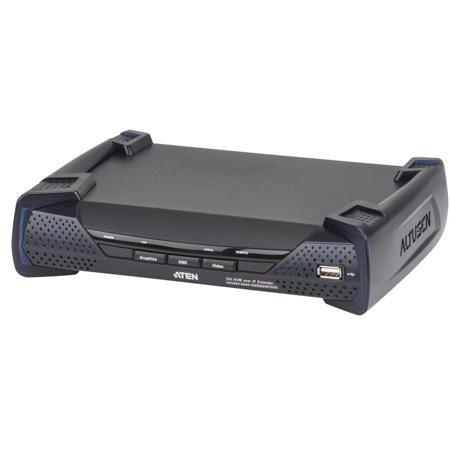

Aten KE6940R Dual DVI KVM Over IP Extender Receiver

Aten is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, they introduce the new Altusen KE6940 DVI KVM Over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure. Utilizing expertise in Over IP KVM solutions, the KE6940 series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet. The KE6940 Single View Extender supports one DVI display at each end.

The DVI KVM Over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat5e cable that allows point-to-point, point-to-multipoint and multipoint-to-multipoint administration. This is perfect for use in any type of installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location - away from the keyboard, mouse and display in use. As a Matrix Extender it can connect single/multiple: computers-to-consoles in several ways: one-to-one (Extender mode), one-to-many (Splitter mode), many-to-one (Switch mode) or many-to-many (Matrix mode).

The Matrix Manager software provides advanced features for username/password authentication, auto detection of all KE6940 devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES-128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security. With an OSD, RS-232 support and Auto MDIX, the KE6940 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

• Remotely access computers on your KVM installation via intranet
• Dual console operation - control your system from both the transmitter and receiver USB keyboard, monitor and mouse consoles
• RS-232 serial ports - allows you to connect to a serial terminal for configuration and serial devices such as touchscreens and barcode scanners
• Superior video quality - up to 1920 x 1200 at 60 Hz; 24-bit color depth
• Supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz
• OSD (On Screen Display) on both the transmitter and receiver units
• Supports AP GUI operation
• Remote login security
• DVI digital and analog monitor support
• Built-in 8KV/15KV ESD protection and 2KV surge protection
• Supports stereo speakers and stereo microphone
• Auto-MDIX - automatically detects cable type
• Supports widescreen formats
• Support High-Quality Video streaming
• Virtual Media Support
• Hot pluggable
• Rack Mountable
• Upgradeable firmware

Over IP
Extend a computer's KVM console any distance over a LAN by connecting the TX and RX units to your network. Extend a computer's KVM console up to 100 meters by directly connecting the TX and RX units with a single Cat5e cable.

Flexibility
The KE6940 series allows you to access, share and switch full control of TX connected computers - from any RX (KVM console) on the network. Flexibly allows One-to-One, One-to-Many, Many-to-One or Many-to-Many computer to KVM console connections.

Unprecedented Video Quality
ATEN's advanced graphics processor delivers video that ensures you will experience the same vivid and sharp quality on the remote monitor no matter how far away the console is located.

Advanced Management System
The Matrix Manager allows you to easily administer all KE6940 devices over a network, using an intuitive user-friendly web based GUI.

Point-to-Point
Extender mode: This is the simplest setup; using a single transmitter to receiver connection that extends a computer's distance from the keyboard, mouse and monitor. One-to-one setups can be directly connected by a Cat5e cable between two units - up to 100 meters.

Point-to-Multipoint
Shared Connection: This setup over a network allows a remote computer (TX) to be shared among multiple KVM consoles (RX). Multiple KVM consoles can access the computer at the same time and you can define the access mode when this happens

Multipoint-to-Point
Switching Connections: This setup over a network allows the KVM consoles to switch access between different computers individually and simultaneously; and allows the streaming of Video, Audio, USB and Serial connections from different computers.

Multipoint-to-Multipoint
Matrix mode: Delivering flexibility and performance ATEN's KVM Over IP Extender provides the ability to access, switch, share and multicast computer resources among multiple KVM consoles across a network. This provides dynamic and flexible extender setups with superior video quality and smooth KVM operations without delays or lags.
