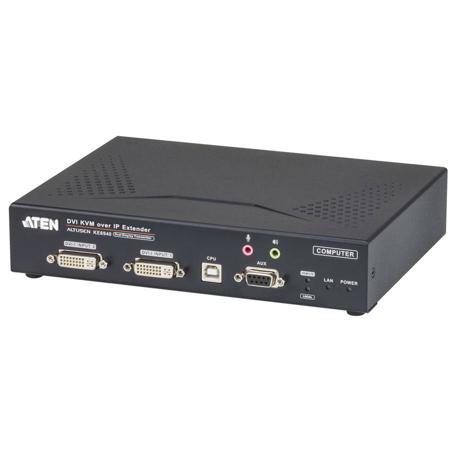

Aten KE6940T Dual DVI KVM Over IP Extender Transmitter

SKU: ANKE6940T MFR: KE6940T
Earn VIP Reward Points

Key Features

  • Extend your workspace with this Aten KVM Over IP Extender, reaching distant servers easily.
  • Experience dual DVI video resolution up to 1920x1200 with this high-performance KVM transmitter.
  • Enjoy seamless USB keyboard and mouse emulation for smooth KVM switch control and operation.
  • Remotely manage computers via LAN with this durable metal housing KVM extender transmitter.
  • This versatile KVM over IP solution supports audio and RS-232, enhancing connectivity options.
  • Simplify server management with Aten's reliable KVM technology, designed for optimal performance.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Aten KE6940T Specifications

  • Console Ports

    Keyboard: 1x USB Type A Female (white)
    Video: 2x DVI-I
    Mouse: 1x USB Type A Female (White)
    Speaker: 1x Mini Stereo Jack (Green)
    Mic: 1x Mini Stereo Jack (Pink)
    RS-232: 1x DB-9 Male (Black)

  • KVM Ports

    Transmitter:
    KB / Mouse: 1x USB Type B Female (white)
    Speaker: 1x Mini Stereo Jack (Green)
    Mic: 1x Mini Stereo Jack (Pink)
    RS-232: 1x DB-9 Female (Black)
    Video: 2x DVI-I

  • Power Connector

    1x DC Jack (Black)

  • LAN Port

    1x RJ-45 (Black)

  • Switches

    Console Selection / FW Upgrade: Slide switch
    Reset: Semi-recessed Pushbutton

  • LEDs

    LAN: 1 (Green / Orange)
    Power: 1 (Blue)
    Local: 1 (Green)
    Remote: 1 (Green)

  • Emulation: Keyboard / Mouse

    USB

  • Power Consumption

    DC 5V

  • Video Resolution

    Up to 1920 x 1200 at 60Hz

  • Housing

    Metal

  • Operating Temp.

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temp.

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-95% RH, Non-condensing

  • Dimensions (L x W x H)

    21.50 x 16.29 x 4.56cm / 8.46 x 6.41 x 1.80"

  • Weight

    1.15kg / 2.54lbs

  • UPC Code

    672792402876

About Aten KE6940T

How the Aten Altusen KE6940T Dual DVI KVM Over IP Extender Transmitter revolutionizes connectivity and access management solutions is truly impressive. This innovative product is a testament to Aten's commitment to developing cutting-edge technologies. The KE6940T is an IP-based DVI KVM Extender that facilitates remote access to a computer system from a USB console, including a USB keyboard, USB mouse, and DVI monitor, over an intranet.

This Single View Extender supports one DVI display at each end, making it a versatile solution for extending computers to consoles on or off your IT infrastructure. The Extender comprises a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location.

The KE6940T is designed for seamless integration into any installation where the console needs to be conveniently placed, while the computer remains in a secure location. As a Matrix Extender, it offers flexible connection options, including one-to-one (Extender mode), one-to-many (Splitter mode), many-to-one (Switch mode), and many-to-many (Matrix mode).

The Matrix Manager software enhances the functionality of the KE6940T with advanced features like username/password authentication, auto-detection of all KE6940 devices on the same subnet, and the ability to define connections that can be switched and shared.

Security is a top priority with the KE6940T. It supports AES-128bits encryption for secure data transmission and provides an added layer of connection security with RADIUS, LDAP, AD, or remote user authentication.

The KE6940T boasts superior video quality, supporting standard VGA resolutions from 640x480 to 1920x1200 at 60Hz, and up to 1920 x 1200 at 60 Hz with 24-bit color depth. It also supports DVI digital and analog monitor, high-quality video streaming, and widescreen formats.

Additional features include an On-Screen Display (OSD) on both the transmitter and receiver units, built-in 8KV/15KV ESD protection and 2KV surge protection, stereo speakers and microphone support, Auto-MDIX for automatic cable type detection, Virtual Media Support, and upgradeable firmware.

The KE6940T is also hot pluggable and rack mountable, making it a cost-effective and convenient solution for full digital extension from anywhere on the intranet. Whether you're extending a computer's KVM console over a LAN or up to 100 meters with a single Cat5e cable, the KE6940T offers unparalleled flexibility and performance.

Experience the future of connectivity and access management solutions with the Aten Altusen KE6940T Dual DVI KVM Over IP Extender Transmitter.

Aten KE6940T Features

  • IP-based DVI KVM Extender for remote access to computers via USB console
  • High-resolution support up to 1920x1200 at 60Hz for crystal-clear video quality
  • Advanced Matrix Manager software for streamlined device administration and security
  • Versatile connection configurations including Extender, Splitter, Switch, and Matrix modes
  • Robust security with AES-128 bit encryption and multiple user authentication methods
  • Built-in ESD and surge protection ensuring reliable and durable performance

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your workspace with this Aten KVM Over IP Extender, reaching distant servers easily.
  • Experience dual DVI video resolution up to 1920x1200 with this high-performance KVM transmitter.
  • Enjoy seamless USB keyboard and mouse emulation for smooth KVM switch control and operation.
  • Remotely manage computers via LAN with this durable metal housing KVM extender transmitter.
  • This versatile KVM over IP solution supports audio and RS-232, enhancing connectivity options.
  • Simplify server management with Aten's reliable KVM technology, designed for optimal performance.

What's in the box:

  • Aten KE6940T Dual DVI KVM Over IP Extender Transmitter
  • User Instructions
  • Aten 3 Year Limited Warranty
