Aten KL1508AiM 8-Port 17" Dual Rail Cat5 LCD KVM Over IP Switch

SKU: ANKL1508AIM MFR: KL1508AIM
Earn VIP Reward Points

Key Features

  • Manage up to 8 computers with this Aten KVM switch, saving space and resources efficiently.
  • Enjoy high-resolution video up to 1280x1024 via the KVM, perfect for detailed work remotely.
  • The dual rail design of this KVM ensures the LCD and keyboard operate independently for convenience.
  • Remotely access your servers over IP with this KVM, offering flexibility and control from anywhere.
  • This Aten KVM switch supports both PS/2 and USB, ensuring compatibility with various systems.
  • Daisy-chain up to 128 computers for centralized management using this versatile KVM solution.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten KL1508AiM Specifications

  • Computer Connections: Direct

    8

  • Computer Connections: Maximum

    128 (via Daisy-Chain)

  • Console Connections

    Local: 1
    Remote: 1

  • Port Selection

    OSD, Hotkey, Pushbutton

  • Connectors: Console Ports

    Keyboard: 1x 6-pin Mini-DIN Female (Purple), 1x USB Type A Female (White)
    Video: 1x HDB-15 Female (Blue)
    Mouse: 1x 6-pin Mini-DIN Female (Green), 1x USB Type A Female (White)

  • Connectors: KVM Ports

    8x RJ-45 Female

  • Connectors: Daisy Chain

    1x DB-25 Male (Black)

  • Connectors: Power

    1x 3-prong AC socket

  • Connectors: F/W Upgrade

    1x RJ-11 Female (Black)

  • Connectors: External Mouse

    1x USB Type A (Female)

  • Connectors: LAN

    1x RJ-45 Female

  • Connectors: PON

    1x RJ-45 Female

  • Switches: Power

    1x Rocker

  • Switches: LCD Power

    1x Pushbutton

  • Switches: LCM Adjustment

    4x Pushbutton

  • Switches: Port Selection

    8x Pushbutton

  • Switches: F/W Upgrade

    1x Slide

  • Switches: KVM Reset

    1x Semi-recessed Pushbutton

  • Switches: Station

    2x Pushbutton

  • LEDs: Station

    2x 7 Segments (Orange)

  • LEDs: Port Online

    8x Green

  • LEDs: Port Selected

    8x Orange

  • LEDs: Power

    1x Blue

  • LEDs: Lock

    Num: 1x Green
    Caps: 1x Green
    Scroll: 1x Green

  • LEDs: Link

    1x Green

  • LEDs: 10/100 Mbps

    1x Orange/Green

  • LEDs: LCD Power

    1x Orange

  • Emulation: Keyboard/Mouse

    PS/2, USB

  • Video

    1280 x 1024 at 75Hz, DDC2B (50m, Local), 1600 x 1200 at 60Hz, DDC2B (40m, Remote) Scan Interval

  • Input

    100-240V AC, 50/60Hz, 1A

  • Power Consumption

    120V/27W, 230V/28W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    48.00 x 70.12 x 4.40cm / 18.90 x 27.61 x 1.73"

  • Weight

    15.23kg / 33.58lbs

  • UPC Code

    672792401084

About Aten KL1508AiM

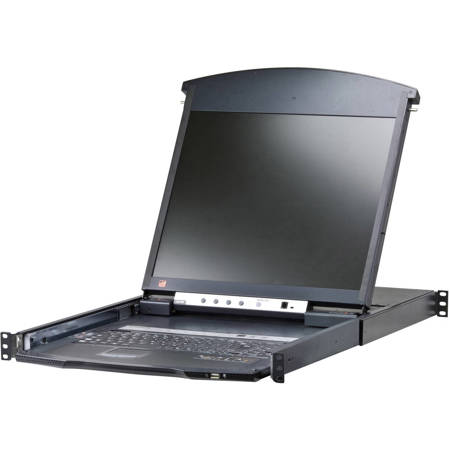

With the KL1508AiM 8-Port 17" Dual Rail Cat5 LCD KVM Over IP Switch, you gain secure, efficient, and user-friendly control over up to 8 computers from a single KVM (keyboard, video, and mouse) console. This high-quality device features an integrated LED-backlit LCD monitor, keyboard, and touchpad, all housed within a 1U rack-mountable retractable sliding unit, making it a space-saving solution for your server room or data center.

The unique dual rail design allows the LCD and keyboard/touchpad modules to slide independently, providing flexibility and convenience. When not in use, the keyboard/touchpad module can be tucked away, while the slim LCD monitor can rotate back, flush against the rack, for unobtrusive monitoring of computer activity.

The KL1508AiM stands out with its IP-based connectivity, enabling both local and remote operators to monitor and access the connected computers. Leveraging TCP/IP as its communication protocol, this device can be accessed from any computer on the LAN, WAN, or Internet, providing control whether you're in the next room or across the globe.

The use of compact, high-density RJ-45 connectors and Cat5e/6 cable ensures an efficient wiring configuration. The inclusion of KVM Adapter Cables allows a mix of PCs, Macs, Sun computers, and serial devices to coexist on the installation. Additional ports for an external keyboard, monitor, and mouse are provided, offering the flexibility to manage the switch from a local console.

Enhanced features include a Panel Array Mode for simultaneous display of video output from up to 16 computers, and a Message Board for instant communication between logged-in users, regardless of their location. The KL1508AiM also supports up to 64 user accounts and 32 concurrent remote logins, making it a robust solution for managing multiple users and sessions.

The KL1508AiM is equipped with advanced security features, including remote authentication support, flexible encryption design, and IP/MAC Filter support for enhanced security protection. The Virtual Remote Desktop feature allows for adjustable video quality and video tolerance, full-screen or sizable and scalable Virtual Remote Desktop, and an on-screen keyboard with multi-language support.

The KL1508AiM 8-Port 17" Dual Rail Cat5 LCD KVM Over IP Switch is a reliable, durable, and efficient solution for your server room management needs, offering a blend of functionality, security, and convenience.

Aten KL1508AiM Features

  • High-quality 8-Port 17" Dual Rail Cat5 LCD KVM Over IP Switch for efficient server management
  • Integrated LED-backlit LCD monitor, keyboard, and touchpad in a space-saving 1U rack-mountable design
  • IP-based connectivity for local and remote monitoring and access from any computer on the LAN, WAN, or Internet
  • Supports up to 64 user accounts and 32 concurrent remote logins, ideal for multi-user environments
  • Advanced security features including remote authentication support, flexible encryption design, and IP/MAC Filter support
  • Enhanced features such as Panel Array Mode and Message Board for real-time monitoring and communication between users

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Manage up to 8 computers with this Aten KVM switch, saving space and resources efficiently.
  • Enjoy high-resolution video up to 1280x1024 via the KVM, perfect for detailed work remotely.
  • The dual rail design of this KVM ensures the LCD and keyboard operate independently for convenience.
  • Remotely access your servers over IP with this KVM, offering flexibility and control from anywhere.
  • This Aten KVM switch supports both PS/2 and USB, ensuring compatibility with various systems.
  • Daisy-chain up to 128 computers for centralized management using this versatile KVM solution.

What's in the box:

  • Aten KL1508AiM 8-Port 17 " Dual Rail Cat5 LCD KVM Over IP Switch
  • Power Cord
  • Standard Rack Mount Kit
  • Firmware Upgrade Cable
  • User Instructions
  • Aten 3 Year Limited Warranty
