Aten KL1508AiN 8-Port 19" Dual Rail Cat5 LCD KVM Over IP Switch

SKU: ANKL1508AIN MFR: KL1508AIN
Earn VIP Reward Points

Key Features

  • Manage 8 servers with this Aten KVM switch, featuring a dual rail LCD for streamlined control.
  • Enjoy remote IP access to your servers using this KVM over IP switch, enhancing flexibility.
  • This 8-port KVM switch supports high-resolution video, ensuring clear display quality up to 1280x1024.
  • Daisy-chain up to 128 computers using this KVM switch, expanding your control capabilities easily.
  • Enhance server room efficiency with this Aten KVM, designed for easy rack mounting and access.
  • Benefit from multi-platform support with this KVM switch, compatible with PS/2 and USB interfaces.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten KL1508AiN Specifications

  • Computer Connections: Direct

    8

  • Computer Connections: Maximum

    128 (via Daisy-Chain)

  • Console Connections

    Local: 1
    Remote: 1

  • Port Selection

    OSD, Hotkey, Pushbutton

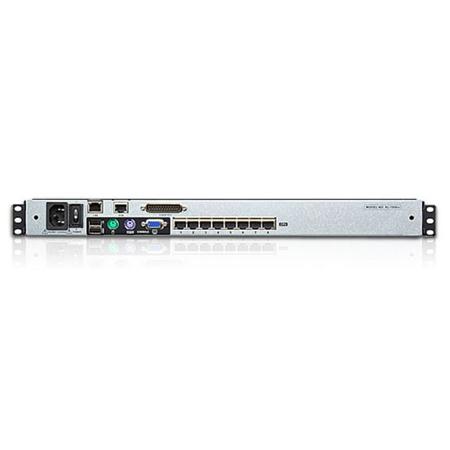

  • Connectors: Console Ports

    Keyboard: 1x 6-pin Mini-DIN Female (Purple), 1x USB Type A Female (White)
    Video: 1x HDB-15 Female (Blue)
    Mouse: 1x 6-pin Mini-DIN Female (Green), 1x USB Type A Female (White)

  • Connectors: KVM Ports

    8x RJ-45 Female

  • Connectors: Daisy Chain

    1x DB-25 Male (Black)

  • Connectors: Power

    1x 3-prong AC socket

  • Connectors: F/W Upgrade

    1x RJ-11 Female (Black)

  • Connectors: External Mouse

    1x USB Type A (Female)

  • Connectors: LAN

    1x RJ-45 Female

  • Connectors: PON

    1x RJ-45 Female

  • Switches: Power

    1x Rocker

  • Switches: LCD Power

    1x Pushbutton

  • Switches: LCM Adjustment

    4x Pushbutton

  • Switches: Port Selection

    8x Pushbutton

  • Switches: F/W Upgrade

    1x Slide

  • Switches: KVM Reset

    1x Semi-recessed Pushbutton

  • Switches: Station

    2x Pushbutton

  • LEDs: Station

    2x 7 Segments (Orange)

  • LEDs: Port Online

    8x Green

  • LEDs: Port Selected

    8x Orange

  • LEDs: Power

    1x Blue

  • LEDs: Lock

    Num: 1x Green
    Caps: 1x Green
    Scroll: 1x Green

  • LEDs: Link

    1x Green

  • LEDs: 10/100 Mbps

    1x Orange/Green

  • LEDs: LCD Power

    1x Orange

  • Emulation: Keyboard/Mouse

    PS/2, USB

  • Video

    1280 x 1024 at 75Hz, DDC2B (50m, Local), 1600 x 1200 at 60Hz, DDC2B (40m, Remote) Scan Interval

  • Input

    100-240V AC, 50/60Hz, 1A

  • Power Consumption

    120V/27.5W, 230V/27.5W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    48.00 x 70.12 x 4.40cm / 18.90 x 27.61 x 1.73"

  • Weight

    15.39kg / 33.93lbs

  • UPC Code

    672792401107

About Aten KL1508AiN

The KL1508AiN 8-Port 19" Dual Rail Cat5 LCD KVM Over IP Switch is a sophisticated control unit designed to provide secure access to up to 8 computers from a single KVM (keyboard, video, and mouse) console. This unit features an integrated LED-backlit LCD monitor, keyboard, and touchpad, all housed in a 1U rack-mountable retractable sliding structure.

The unique design of the KL1508AiN allows the LCD and keyboard/touchpad modules to slide independently, optimizing space in your data center. When not in use, the keyboard/touchpad module can slide back to "hide away," and the slim-profile LCD monitor can rotate back flush against the rack, enabling convenient monitoring of computer activity.

This KVM switch stands out with its IP-based connectivity, which allows both local and remote operators to monitor and access the computers on your installation. Leveraging TCP/IP as its communications protocol, the KL1508AiN can be accessed from any computer on the LAN, WAN, or Internet, making it an ideal solution for managing servers located anywhere in the world.

The KL1508AiN utilizes compact, high-density RJ-45 connectors and Cat5e/6 cable for a streamlined, efficient wiring configuration. The use of KVM Adapter Cables allows a mix of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

The KL1508AiN also offers enhanced features such as a Panel Array Mode, which displays the video output of up to 16 computers simultaneously, and a Message Board that enables logged-in users to communicate instantly, regardless of their location.

The KL1508AiN supports up to 64 user accounts and allows up to 32 concurrent remote logins. It also features an Adapter ID that stores port information, allowing administrators to relocate servers to different ports without having to reconfigure the adapters and switch.

The KL1508AiN is equipped with advanced security features, including remote authentication support (RADIUS, LDAP, LDAPS, and MS Active Directory), SSL 128-bit data encryption, and RSA 1024-bit certificates. It also supports flexible encryption design and IP/MAC Filter support for enhanced security protection.

The KL1508AiN's user-friendly interface allows easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and a Browser-based GUI. It supports multiple platforms (Windows, Mac OS X, Linux, Sun) and browsers (Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape).

The KL1508AiN is a space-efficient solution that integrates a retractable LCD monitor, keyboard, and touchpad in a 1U Dual Rail housing. It also features easy cabling with RJ-45 connectors and Cat5e/6 cable, and supports automatic ID recognition of the new ATEN KVM Cable Adapter KA7000 series.

In conclusion, the KL1508AiN 8-Port 19" Dual Rail Cat5 LCD KVM Over IP Switch is a versatile, secure, and efficient solution for server room management, offering advanced features and a user-friendly interface.

Aten KL1508AiN Features

  • Dual Rail Cat5 LCD KVM Over IP Switch with 8-port functionality for comprehensive server control
  • Integrated LED-backlit LCD monitor, keyboard, and touchpad in a space-efficient 1U rack-mountable design
  • IP-based connectivity for remote access and monitoring via LAN, WAN, or Internet
  • Advanced security features including RADIUS, LDAP, LDAPS, and MS Active Directory support, and SSL 128-bit data encryption
  • User-friendly interface supporting multiple platforms and browsers, with easy computer selection options
  • Panel Array Mode for simultaneous monitoring of up to 16 computers and a Message Board for instant user communication

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Manage 8 servers with this Aten KVM switch, featuring a dual rail LCD for streamlined control.
  • Enjoy remote IP access to your servers using this KVM over IP switch, enhancing flexibility.
  • This 8-port KVM switch supports high-resolution video, ensuring clear display quality up to 1280x1024.
  • Daisy-chain up to 128 computers using this KVM switch, expanding your control capabilities easily.
  • Enhance server room efficiency with this Aten KVM, designed for easy rack mounting and access.
  • Benefit from multi-platform support with this KVM switch, compatible with PS/2 and USB interfaces.

What's in the box:

  • Aten KL1508AiN 8-Port 19 " Dual Rail Cat5 LCD KVM Over IP Switch
  • Power Cord
  • Standard Rack Mount Kit
  • Firmware Upgrade Cable
  • User Instructions
  • Aten 3 Year Limited Warranty
