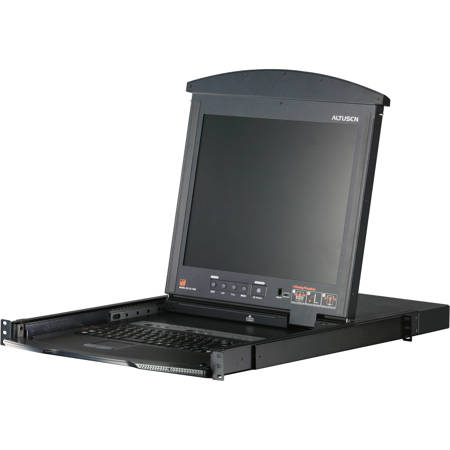

Aten KL1508AN 8-Port 19" Cat5 High-Density Dual Rail LCD KVM Switch

SKU: ANKL1508AN MFR: KL1508AN
Earn VIP Reward Points

Key Features

  • Manage up to 8 computers with this Aten KVM switch, saving space and boosting your workflow efficiency.
  • Enjoy high-resolution video (1280x1024) at 75Hz via this KVM cable, perfect for detailed work and gaming.
  • This dual rail LCD KVM offers easy access and control, streamlining server management in data centers.
  • Daisy-chain up to 256 computers for centralized control using this versatile KVM switch solution.
  • Benefit from multiplatform support (PC, Mac, Sun) with this KVM, ensuring seamless integration.
  • Enhance your server room setup with this durable, rack-mountable KVM, designed for reliability.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten KL1508AN Specifications

  • Computer Connections: Direct

    8

  • Computer Connections: Maximum

    256 (via Daisy Chain)

  • Port Selection

    OSD (On Screen Display), Hotkeys Pushbuttons

  • Connectors: Console Ports

    Keyboard: 1x 6-pin Mini-DIN Female (Purple), 1x USB Type A Female (White)
    Video: 1x HDB-15 Female (Blue)
    Mouse: 1x 6-pin Mini-DIN Female (Green), 1x USB Type A Female (White)

  • Connectors: KVM Ports

    8x RJ-45 Female (Black)

  • Connectors: Daisy Chain

    Chain Out: 1x DB-25 Male (Black)

  • Connectors: FW Upgrade

    1x RJ-11 Male (Black)

  • Connectors: Power

    1x 3-Prong AC socket

  • Connectors: External Mouse

    1x USB Type A (Female)

  • Switches: Port Selection

    8x Pushbutton

  • Switches: KVM Reset

    1x Semi-recessed pushbutton

  • Switches: F/W Upgrade

    1x Slide

  • Switches: Power

    1x Rocker

  • Switches: LCD Power

    1x Pushbutton

  • Switches: LCD Adjustment

    4x Pushbutton

  • Switches: Station

    2x Pushbutton

  • LEDs: Port On Line

    8x Green

  • LEDs: Port Selected

    8x Orange

  • LEDs: Power

    1x Blue

  • LEDs: Station ID

    1x 2 Digit 7-segment (Orange)

  • LEDs: Lock

    1x Num Lock (Green)
    1x Caps Lock (Green)
    1x Scroll Lock (Green)

  • LEDs: LCD Power

    1x Orange

  • Emulation: Keyboard / Mouse

    PS/2, USB (PC, Mac, Sun), Serial

  • Video

    1280 x 1024 at 75Hz (50m)

  • Scan Interval

    1-255 sec.

  • I/P Rating

    100-240V AC, 50/60Hz, 1A

  • Power Consumption

    100V/23W, 230V/23W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    48.00 x 70.12 x 4.40cm / 18.90 x 27.61 x 1.73"

  • Weight

    15.35kg / 33.84lbs

  • UPC Code

    672792400551

About Aten KL1508AN

ATEN ALTUSEN KL1508A / KL1516A LCD KVM Switch features independently retractable, dual slide 17" or 19" LED-backlit LCD monitor and keyboard with built-in touchpad. The KL1508A and KL1516A KVM switches are control units that allow IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console. For increased reliability and efficiency, RJ-45 connectors and Cat5e/6 cable are used to link to the computers. Utilizing KVM Adapter Cables for the final linkup, the KL1508A / KL1516A permits any combination of PCs, Macs, Sun computers and serial devices to coexist on the installation.

These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently. For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information - such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Other advances found with these switches includes enhanced video quality - extending the distance to the servers to up to 50 m at a resolution of 1280 x 1024. A KL1508A or KL1516A installation provides one of the best and most economical solutions ATEN offers to the SMB market. There is no better way to save time, space and money than with a KL1508A or KL1516A KVM switch.

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Dual Rail housing
• A single console controls up to 8 (KL1508A) or 16 (KL1516A) computers
• Space-Saving RJ-45 connectors and Cat5e/6 cabling
• KVM adapter cables designed with automatic conversion to allow flexible interface combinations(PS/2, USB, Sun and serial) to control all computer types
• OSD tree structure makes finding and managing computers easy
• Conveniently located station and port selectors with LED displays to quickly switch to target computers
• Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in1U of rack space
• Extra console port - manage computers in the LCD KVM switch from an external console(monitor, USB or PS/2 keyboard and USB or PS/2 mouse)
• Supports external USB mouse
• Dual Rail - LCD monitor slides independently of the keyboard/touchpad
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock - enables the console drawer to remain securely locked away in position when notin use
• Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
• Daisy chain up to 31 additional KVM switches to control up to 512 computers
• Auto Scan mode enables continuous monitoring of user-selected computers
• Multiplatform support: PC, Mac, Sun and Serial
• Superior Video Quality- Supports the video resolutions up to 1280x1024 at 75 Hz for up to 50
• Configure port access rights for users on a port - by - port basis
• Three port selection methods: Manual (via front panel pushbuttons), Hotkey and multi-languageOSD (On Screen Display)
• Multiple User Accounts - Supports up to 10 user and 1 administrator accounts
• Two-Level Password Security - Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
• LCD power button helps save energy and prolong displays' life
• Broadcast Mode sends commands from the console to all computers - allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously.
• Adapter ID
• Firmware Upgradeable

Flexibility
The LCD module rotates up to 120 degrees for a more comfortable viewing angle.

Easy Operation
Three port selection methods: Manual (via front panel pushbuttons), Hotkey and multi-language OSD (On Screen Display). Multi-language keyboard support includes English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese.

Auto Scanning and Broadcast Mode
Auto scanning provides hands-free monitoring of selected devices at variable rates. Broadcast Mode sends commands from the console to all computers -allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously

Superior Video Quality
Supports the video resolutions up to 1600 x 1200 at 60Hz for up to 40 meters and 1280 x 1024 at 75Hz for up to 50 meters with the new ATEN KVM Cable Adapter KA7000 series.

Multiple User Accounts
Supports up to 10 user and 1 administrator accounts.

Space-Saving RJ-45 Connectors and Cat5e/6 Cabling
This space-saving innovation means that the KL1508A /KL1516A can be conveniently installed in a 1U system rack. Reduces cable clutter for a neat and tidy data center environment.

Adapter Cables with ID
The KL1508A / KL1516A KVM series supports automatic ID recognition of the new ATEN KVM Cable Adapter KA7000 series. Using the new adapter cables with ID means it is not required to change cable configuration settings when moving cables from port to port. Device ID and attributes are stored in the adapter cables allowing you to hot-swap port connections without having to reconfigure attributes.

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Manage up to 8 computers with this Aten KVM switch, saving space and boosting your workflow efficiency.
  • Enjoy high-resolution video (1280x1024) at 75Hz via this KVM cable, perfect for detailed work and gaming.
  • This dual rail LCD KVM offers easy access and control, streamlining server management in data centers.
  • Daisy-chain up to 256 computers for centralized control using this versatile KVM switch solution.
  • Benefit from multiplatform support (PC, Mac, Sun) with this KVM, ensuring seamless integration.
  • Enhance your server room setup with this durable, rack-mountable KVM, designed for reliability.

What's in the box:

  • Aten KL1508AN 8-Port 19 " Cat5 High-Density Dual Rail LCD KVM Switch
  • Standard Rack Mount Kit
  • Firmware Upgrade Cable
  • 6' Power Cord
  • 4' Grounding Wire
  • User Manual
  • Quick Start Guide
  • Aten 3 Year Limited Warranty
