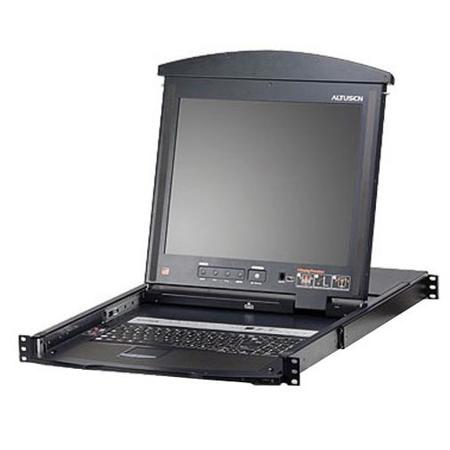

Aten KL1516AN 16-Port 19" Cat5 High-Density Dual Rail LCD KVM Switch

SKU: ANKL1516AN MFR: KL1516AN
Earn VIP Reward Points

Key Features

  • Manage up to 16 computers with this Aten KVM switch, saving space and boosting productivity.
  • Enjoy high compatibility with PS/2, USB, and Serial interfaces on your KVM equipment setup.
  • Experience fast switching between ports using hotkeys or the on-screen display (OSD) feature.
  • Get good value with this KVM switch, offering a cost-effective solution for server management.
  • Simplify your setup with the included rack mount kit for easy integration of your KVM switch.
  • Rely on the durable build and Aten's 3-year warranty for long-lasting KVM performance.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten KL1516AN Specifications

  • Computer Connections: Direct

    16

  • Computer Connections: Maximum

    512 (via Daisy Chain)

  • Port Selection

    OSD (On Screen Display), Hotkeys Pushbuttons

  • Connectors: Console Ports

    Keyboard: 1x 6-pin Mini-DIN Female (Purple), 1x USB Type A Female (White)
    Video: 1x HDB-15 Female (Blue)
    Mouse: 1x 6-pin Mini-DIN Female (Green), 1x USB Type A Female (White)

  • Connectors: KVM Ports

    16x RJ-45 Female (Black)

  • Connectors: Daisy Chain

    Chain Out: 1x DB-25 Male (Black)

  • Connectors: FW Upgrade

    1x RJ-11 Male (Black)

  • Connectors: Power

    1x 3-Prong AC socket

  • Connectors: External Mouse

    1x USB Type A (Female)

  • Switches: Port Selection

    16x Pushbutton

  • Switches: KVM Reset

    1x Semi-recessed pushbutton

  • Switches: F/W Upgrade

    1x Slide

  • Switches: Power

    1x Rocker

  • Switches: LCD Power

    1x Pushbutton

  • Switches: LCD Adjustment

    4x Pushbutton

  • Switches: Station

    2x Pushbutton

  • LEDs: Port On Line

    16x Green

  • LEDs: Port Selected

    16x Orange

  • LEDs: Power

    1x Blue

  • LEDs: Station ID

    1x 2 Digit 7-segment (Orange)

  • LEDs: Lock

    1x Num Lock (Green)
    1x Caps Lock (Green)
    1x Scroll Lock (Green)

  • LEDs: LCD Power

    1x Orange

  • Emulation: Keyboard / Mouse

    PS/2, USB (PC, Mac, Sun), Serial

  • Video

    1280 x 1024 at 75Hz (50m)

  • Scan Interval

    1-255 sec.

  • I/P Rating

    100-240V AC, 50/60Hz, 1A

  • Power Consumption

    100V/23W, 230V/23W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    48.00 x 70.12 x 4.40cm / 18.90 x 27.61 x 1.73"

  • Weight

    15.36kg / 33.86lbs

  • UPC Code

    672792400582

About Aten KL1516AN

If you're seeking a robust, reliable, and user-friendly solution to manage multiple computers from a single workstation, the KL1516AN 16-Port 19" Cat5 High-Density Dual Rail LCD KVM Switch is the perfect choice. This high-quality, durable device is designed with a dual slide 17" or 19" LED-backlit LCD monitor and keyboard with a built-in touchpad, offering a stylish and efficient solution for IT administrators.

The KL1516AN KVM switch is a control unit that allows seamless access and control over multiple computers from the LCD console and an additional PS/2 or USB KVM console. It uses RJ-45 connectors and Cat5e/6 cable for reliable and efficient connections to computers. With the use of KVM Adapter Cables for the final linkup, this switch supports any combination of PCs, Macs, Sun computers, and serial devices, making it a versatile solution for diverse installations.

One of the standout features of this KVM switch is the advanced Adapter ID feature, which stores the Adapter Cable's configuration information. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters, saving time and enhancing efficiency.

The KL1516AN KVM switch also boasts enhanced video quality, supporting resolutions up to 1280 x 1024 at a distance of up to 50 meters. This ensures clear, high-quality visuals, even when managing servers from a distance.

The device also features an exclusive LED illumination light, designed to illuminate the keyboard and touchpad for visibility in low-light conditions. The integrated KVM console with the LED-backlit LCD monitor is housed in a Dual Rail housing, offering a space-saving solution that fits smoothly into 1U of rack space.

For added convenience, the KL1516AN KVM switch supports external USB mice and features a console lock to secure the console drawer when not in use. With the ability to daisy chain up to 31 additional KVM switches, this device can control up to 512 computers, making it an ideal solution for large server rooms and data centers.

The KL1516AN 16-Port 19" Cat5 High-Density Dual Rail LCD KVM Switch is more than just a device; it's a comprehensive solution for efficient, user-friendly, and reliable computer management.

Aten KL1516AN Features

  • High-density dual rail LCD KVM switch with 16-port capacity for managing multiple computers
  • Features a dual slide 17" or 19" LED-backlit LCD monitor and keyboard with built-in touchpad
  • Utilizes RJ-45 connectors and Cat5e/6 cable for reliable and efficient connections
  • Advanced Adapter ID feature for easy server relocation without reconfiguring adapters
  • Supports resolutions up to 1280 x 1024 at a distance of up to 50 meters for enhanced video quality
  • Space-saving design with Dual Rail housing that fits smoothly into 1U of rack space

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Manage up to 16 computers with this Aten KVM switch, saving space and boosting productivity.
  • Enjoy high compatibility with PS/2, USB, and Serial interfaces on your KVM equipment setup.
  • Experience fast switching between ports using hotkeys or the on-screen display (OSD) feature.
  • Get good value with this KVM switch, offering a cost-effective solution for server management.
  • Simplify your setup with the included rack mount kit for easy integration of your KVM switch.
  • Rely on the durable build and Aten's 3-year warranty for long-lasting KVM performance.

What's in the box:

  • Aten KL1516AN 16-Port 19 " Cat5 High-Density Dual Rail LCD KVM Switch
  • Standard Rack Mount Kit
  • Firmware Upgrade Cable
  • 6' Power Cord
  • 4' Grounding Wire
  • User Manual
  • Quick Start Guide
  • Aten 3 Year Limited Warranty
