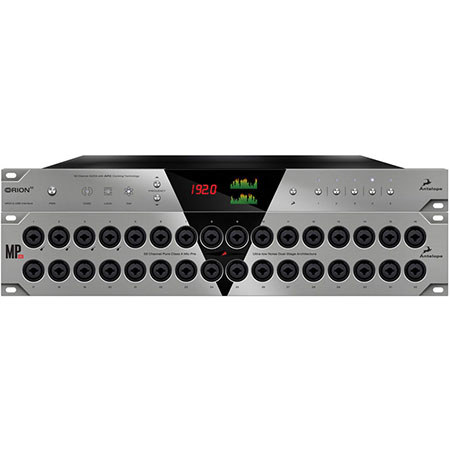

Antelope Audio MP32 32-channel Microphone Preamplifier Bundle with Orion 32 Multi-Channel AD/DA Converter

The Antelope Audio MP32 is a 32-channel console-grade microphone preamp with integrated software remote control and Antelope Audio's exciting new approach to analog circuit design.

Exceptional clarity, transparency and dynamics
MP32 features 32 class-A mic pres with phantom power, 32 line inputs, of which 4 can operate as Hi-Z instrument inputs. All inputs are XLR combos on the front panel of the MP32. MP32's mic preamps are open and transparent, yet designed to maintain both signal clarity and sonic realism consistently throughout the recording process. The MP32 offers excellent headroom and up to 68 dB of gain in 1 dB steps, more than enough to power even the most demanding ribbon mics, while maintaining ultra-low THD+N (-110.5 dB).

Digital remote control
A user-friendly control panel for Mac or Windows allows for easy remote management of the device's input types and mic gain levels. The intuitive software control panel provides fast set up and easy fine-tuning of individual mic preamp gain, as well as the independent assignment of phantom power and mic/line/hi-z switching. Complex gain structure and preamp settings are made incredibly simple by the user-defined presets, just a mouse click away. In addition, individual V/U style metering allows for instant signal confirmation at a glance of the software.

About the Orion 32 Converter

A versatile multi-channel AD/DA converter and USB interface
Orion32 is a 32-channel A/D & D/A converter and audio master clock, supporting both MADI and USB interfaces, clocked by Antelope's renowned 64-bit Acoustically Focused Clocking (AFC) technology. Orion32 allows 192 kHz I/O streaming of 32-channel digital audio via USB, providing seamless connectivity to any USB-enabled DAW, computer or iPad. The converter also provides 32 channels of 96 kHz audio through its Fiber Optic MADI I/O connections, which can be used to connect with any suitably equipped MADI device. Orion32 also supports ADAT protocol by offering 16 I/O channels, for even greater compatibility with a large number of audio devices. The multi-channel converter inputs and outputs pass the analog signal through 8 D-SUB 25 I/O connectors.

Low latency USB on Mac and PC
Using Antelope Audio custom-built USB chip, Orion32 achieves extremely low latency levels even when streaming simultaneously 32 channels in and 32 out. The latency performance varies between only 1 and 6.5 ms for different hardware and software configurations.

Exceptional routing & mixing flexibility
With its seamless digital routing and mixing options, the Orion32 offers extended flexibility. The routing feature allows sound engineers, for example, to send the AD signal to both MADI and USB interfaces, for live mixing and monitoring. The device is managed through a user-friendly desktop application available for both Windows and OS x. Moreover it is equipped with a zero-latency mixer and five preset buttons for fast and easy recall of favorite settings.

Antelope clocking for increased sonic accuracy
Orion32 perfectly addresses a sound engineer's need for high quality, clean and transparent conversion, combining the efficiency of MADI and USB interfaces with the perfection of Antelope clocking. In addition to being an extremely high quality audio converter, Orion32 is also an audio master clock. The Orion 32 employs Antelope's proprietary 4th generation of AFC and oven controlled oscillator - both technologies that made Antelope Audio clocks an industry leader for accuracy and sound quality in recording, mastering and post-production facilities around the world. The four word clock outs, together with the 10 MHz input, make Orion 32 ideally suited to be in the center of any project or high-end studio.

1U eco-friendly design
Orion32 is packaged in a 1U enclosure with an eco-friendly power consumption of only 20 Watts. In addition to saving rack space and having very low heating levels, Orion32 comes with an extremely reasonable pricing affordable even for a small home studio.
