Antelope Audio Orion32 + Gen 3 64-Channel Thunderbolt and 32-Channel USB AD/DA Converter

Exemplary AD/DA
Cutting-edge AD/DA converters with up to 129dB dynamic range.

Sub-millisecond Latency
True sub-millisecond latency for playback and recording, achieved via ultra-stable Windows Thunderbolt driver.

Real-time Effects
An essential pack of circuit-level gear emulations, running in real-time on an integrated FPGA FX platform.

Flawless Clocking
Create more natural sounding music with Antelope Audio's next-generation 64-bit Acoustically Focused Clocking technology & jitter management algorithm.

Extensive Connectivity
64 channels (in and out) up to 24/192 using Thunderbolt or 32 channels over USB: Digital I/O features MADI, ADAT and S/PDIF.

Intuitive Control
Get the job done from the front panel controls or enjoy routing, mixing and stacking effects in the PC/Mac app - from any computer on the same network.

64 Simultaneous Hi-res Audio Channels Via Thunderbolt
Connects seamlessly with any DAW on PC or MAC. Orion32+/Gen 3 features low-latency recording & playback of up to 64 simultaneous 24/192 audio channels via Thunderbolt and up to 32 channels over USB. The sleek single rack space unit features 8x DB25 connectors for Analog I/O. Digital connections are 1x MADI, 2x ADAT and 1x S/PDIF.

Hear The Past. Expect The Future
Orion32+/Gen 3 includes a complimentary suite of superb real-time effects selected from a growing library of Antelope Audio FPGA FX. Additional effects can be purchased to expand your arsenal of FX.

FX Included

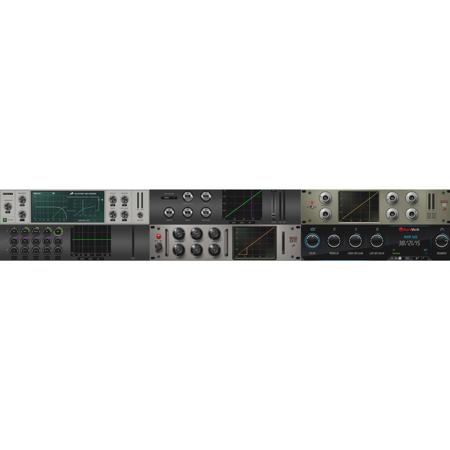

Ready Set Get rocking! Orion32+/Gen 3 includes six premier essential audio effects from the Antelope library, which run in real-time on an ultra-fast FPGA platform. Covering a wide variety of tracking and mixing uses, each effect boasts mastering grade precision and clarity - from the Clear Q linear EQ to the spacious and advanced AuraVerb. These six tools alone cover all your essential mixing and mastering needs.

Exemplary Clocking & Conversion
Antelope Audio is known over the world as the premier audio clocking experts. This legend lives on thanks to our next-generation 64- bit Acoustically Focused Clocking technology & jitter management algorithm. A pair of Word Clock outputs turn the Orion32+/Gen 3 into a world-class Master Clock for your entire studio, while a 10MHz input allows for use with the best possible stability using Antelope's legendary 10M & 10MX Atomic Clocks.

With it's brand-new AD/DA converters achieving up to 129dB dynamic range (Monitor Outs), Orion32+/Gen 3 continues our reputation for pristine conversion quality. Hear the true sound of your music with both digital clarity and analog warmth.

Sub-millisecond Roundtrip Latency. A Fact
Orion32+/Gen3 delivers true sub-millisecond round-trip latency for both AD and DA conversion. We proudly present the following stellar measurements, using our proprietary Windows Thunderbolt driver ver. 1.0.4.87 tested using the Oblique Audio RTL Utility. Stable playback & recording were achieved at these measured settings, in PreSonus Studio One 4, on an Intel Core i7-8700K CPU. But, let the figures speak for themselves.

Line Out Line In
• 192kHz, 64 samples, 0.904ms
• 96kHz, 32 samples, 0.973ms
• 48kHz, 16 samples, 1.168ms

Monitor Line In
• 192kHz, 64 samples, 1.155ms
• 96kHz, 32 samples, 1.476ms
• 48kHz, 16 samples, 2.165ms

Extensive Flexibility
Orion 32+/Gen 3 offers powerful flexibility for easy workflow integration. A color-coded software routing matrix with four separate mixers, effects chaining and zero latency monitoring capabilities. (color changed users will appreciate that all selections are viewable in the center of the routing matrix when hovering over a connection). The routing matrix, mixers and control panel all reside inside an easy to use application for both macOS and Windows.

Featured Effects
Give your recordings, mixes and masters the polish and sheen they deserve with the vast collection of real-time Antelope Audio studio effects. A large number of classic studio equalizers & compressors, proprietary signal processors and other essentials are available at your disposal.

Equalizers
Make your frequency adjustments musically pleasing and as broad or precise as you want them using these classic, time-tested equalizers. Each one is a remarkable achievement in audio engineering and an iconic studio piece that helped shape the sound of genre-defining records. They are now yours to behold with the power of Antelope Audio's FPGA FX platform.

Compressors
Tame peaks, give punch and add color to your tracks with an arsenal of vintage and modern compressors. Each one is a faithful reincarnation of a fabled unit that's been serving studios around the globe for decades - with the exception of Antelope's own FeedForward compressors, which we believe you will find quite powerful, yet transparent.

Utility Effects
Home in on your production work with surgical precision and efficiency using Antelope Audio's assembly of studio utilities. AuraVerb, in particular, is among our proudest works - a versatile and thick-sounding reverb that's great for adding a realistic sense of space and depth.
