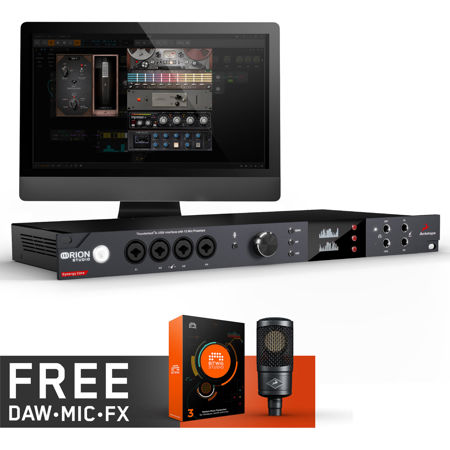

Antelope Audio Orion Studio Synergy Core Thunderbolt 3 and USB Audio Interface

SKU: ANORIONSSC MFR: ORION STUDIO SYNERGY CORE
Earn VIP Reward Points

Key Features

  • Experience pristine audio quality with Antelope Audio's Orion Studio Synergy Core interface.
  • Harness low latency performance for seamless recording and mixing via Thunderbolt 3 or USB.
  • Utilize 12 discrete preamps for rich, detailed recordings, perfect for any studio setup.
  • Expand your sonic palette with 6x DSP & 2x FPGA FX processing for unparalleled effects.
  • Enjoy versatile input/output options, ideal for complex routing and monitoring setups.
  • Achieve stable clocking for superior sonic accuracy with Antelope's advanced technology.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Antelope Audio Orion Studio Specifications

  • Analog Inputs

    8x Mic / Line Inputs / Direct In
    4x Mic / Line / Hi-Z Inputs / Direct In

  • Analog Inserts

    2x Inserts on TRS (inputs 1,2)

  • Analog Outputs

    2x Monitor Out on TRS 1/4 Jacks: Can work both simultaneously and in A/B mode
    2x ReAmp Out on TRS 1/4 Jacks
    2x Line Out (16 channels) on DB25, +20 dBu max, impedance balanced
    2x Stereo Headphone Outputs

  • D/A Monitor Converter

    Dynamic Range: 130 dB
    THD + N: -115 dB

  • A/D Converter

    Dynamic Range: 124 dB
    THD + N: -112 dB

  • D/A Converter

    Dynamic Range: 128 dB
    THD + N: -115dB

  • Discrete Mic Preamps

    EIN: -128 dBu
    Dynamic Range: -121 dB
    THD: -106 dB
    Max input: +20 dBu
    Max Gain: 75 dB

  • Digital Inputs

    2x ADAT (up to 16CH)
    S/PDIF on RCA

  • Digital Outputs

    2x ADAT (up to 16CH)
    S/PDIF on RCA

  • USB 2.0 Hi-Speed

    USB 2.0 Type B connector (up to 24 channels)

  • Thunderbolt 3 I/O

    Thunderbolt 3 connector (up to 32 channels)

  • Word Clock Input

    Input @ 75 Ohms 3Vpp on BNC 32 - 192kHz

  • Word Clock Outputs

    Outputs @ 75 Ohms 3Vpp on BNC 32 - 192kHz

  • Clocking System

    4th Generation Acoustically Focused Clocking

  • 64-bit DDS

    Oven-controlled crystal oscillator

  • Clocking Stability

    <;+/-0.02 ppm, oven controlled at 148.1 Degree F (64.5 Degree C)

  • Clock Aging

    <; 1 ppm per year

  • Clock Calibration

    <;+/-0.001 ppm

  • Sample Rates

    44.1, 48, 88.2, 96, 176.4, 192 (kHz)

  • Operating Temperature

    0-50 Degree C, 32-122 Degree F

  • Drivers

    Windows 10 USB Driver
    Windows 10 Thunderbolt Driver
    macOS

  • Launchers

    Windows 10
    macOS

  • System Requirements

    Mac:
    Apple Mac 2012 or (newer) with available Thunderbolt & USB 2.0/USB 3.0/3.1 port.
    Minimum Mac OS X 10.12 Sierra. Recommended Mac OS X 10.14 Mojave.
    Available Hard Drive Storage Space
    Memory (RAM): 4 GB Minimum (8 GB or more recommended)

    Windows:
    PC computer with available USB 2.0/USB 3.0/3.1 or Thunderbolt port
    Windows 10 x64 Bit with latest Microsoft Updates
    Available Hard Drive Storage Space

  • System Requirements (Contd.)

    Memory (RAM): 4 GB Minimum (8 GB or more recommended)
    (Minimum) CPU: Intel Core i3 or AMD FX or Higher.

    Additional Information:
    USB 2.0 Cable (included with the purchase) or Thunderbolt Cable (Not included Purchased Separately)
    Minimum 4 GB available Storage Space (Hard Disk Space)
    Stable Internet connection to download and update your Antelope Software.
    Core i7 or better processor recommended

  • Dimensions (W x H x D)

    19 x 1.7 x 8.6" (483 x 44 x 220mm) (Approx.)

  • Weight

    6.83 lbs (3.1kg) (Approx.)

About Antelope Audio Orion Studio

How does the Orion Studio Synergy Core Thunderbolt 3 and USB Audio Interface redefine the boundaries of music production This advanced audio interface is a powerhouse of professional-grade audio conversion and connectivity. It's designed to deliver high-quality audio conversion, making it the perfect choice for professional musicians, producers, and engineers who demand superior sound quality for their recordings.

The Orion Studio Synergy Core is equipped with two proprietary Field Programmable Gate Array (FPGA) chips and six ARM-based DSP processors. This innovative combination offers astounding computing power, allowing the device to handle up to 32 FX channel strips X 8 FX slots each for a maximum of 256 FX instances, at any sample rate and over AFX2DAW. This is four times the processing power of the Orion Studio Rev. 2017, making it a true FX processing beast.

The device features both Thunderbolt 3 and USB connectivity options, offering versatile connectivity for a wide range of devices, including computers, tablets, and smartphones. This makes it an ideal choice for musicians and producers who need to work on the go. The Orion Studio Synergy Core is also backward-compatible with Thunderbolt 2 and includes a USB 2.0 port for added convenience.

The Orion Studio Synergy Core comes with a compelling library of 50 real-time studio effects, meticulously modeled after their hardware originals. These effects are processed inside the audio interface with the lowest latency possible, thanks to the FPGA's massive parallel computing capabilities, DSP processing, and fast Thunderbolt connectivity. The library can be expanded to include any effects you choose from our web store.

The Orion Studio Synergy Core is also equipped with 12 discrete preamps, providing exceptional sound quality for vocal and instrument recording. All analog inputs have the Direct-In feature, allowing you to bypass preamp controls and record line-in signals directly into the converters.

The Orion Studio Synergy Core's Accusonic 3D modeling engine lets you transform the Antelope Audio Edge and Verge modeling microphones into expensive-sounding vintage replicas. This feature gives you complete control over proximity effect and allows you to change polar patterns during or after recording.

The Orion Studio Synergy Core is not just an audio interface; it's a comprehensive solution for all your audio needs. With its immense analog and digital flexibility, industry-leading clocking, and sturdy, sleek design, the Orion Studio Synergy Core is the ultimate tool for professional audio production.

Antelope Audio Orion Studio Features

  • Rackmount Thunderbolt 3 & amp; USB audio interface with 12 Discrete mic preamps
  • Synergy Core processing platform with 2 FPGA + 6 DSP chips
  • 2 pairs of monitor outputs run concurrently or in A/B mode with 130 dB dynamic range
  • 30 simultaneous inputs x 22 simultaneous outputs
  • DC-coupled I/O for CV control of analog modular synths
  • Hand-built in Europe to be your pro studio & #39;s centerpiece for years to come

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience pristine audio quality with Antelope Audio's Orion Studio Synergy Core interface.
  • Harness low latency performance for seamless recording and mixing via Thunderbolt 3 or USB.
  • Utilize 12 discrete preamps for rich, detailed recordings, perfect for any studio setup.
  • Expand your sonic palette with 6x DSP & 2x FPGA FX processing for unparalleled effects.
  • Enjoy versatile input/output options, ideal for complex routing and monitoring setups.
  • Achieve stable clocking for superior sonic accuracy with Antelope's advanced technology.

What's in the box:

  • Orion Studio Synergy Core Thunderbolt 3 and USB Audio Interface with 12 Discrete Preamps/6x DSP and 2x FGPA FX Processing
  • Inline External Power Supply Unit
  • USB Cable
  • Quick Start Guide
  • (Tunderbolt Cable Not Included)
  • Antelope Audio 1 Year Limited Warranty
