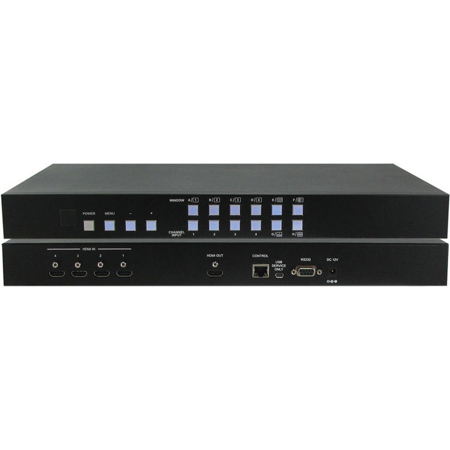

A-NeuVideo ANI-PIP 4x1 HDMI Seamless Quad PiP PoP Scaler Switch with Audio
See all A-NeuVideo items

A-NeuVideo ANI-PIP 4x1 HDMI Seamless Quad PiP PoP Scaler Switch with Audio

SKU: ANPIP

This item is no longer available.

Recommended Alternatives

A-NeuVideo ANI-PiP-41UHD: Picture 1 regular
A-NeuVideo ANI-PiP-41UHD 4x1 4K UHD Quad/PiP/PoP Multiviewer Seamless Switcher
$395.00$331.20
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

A-NeuVideo ANI-PIP Specifications

  • Video Bandwidth

    225 MHz / 6.75 Gbps

  • Input / Output

    4x HDMI inputs type A female (locking HDMI cables supported)
    1x HDMI output type A female (locking HDMI cables supported)
    1x RJ45
    1x RS-232
    1x USB mini (for service)

  • Supported Resolution

    Up to 1080p/60, WUXGA/60

  • Supported Audio

    Up to 8-Ch 192 kHz

  • HDCP Compliant

    Yes

  • ESD Protection

    Human Body Model: +/-8 kV (air-gap discharge) / +/-4 kV (contact-gap discharge)

  • Chassis Material

    Aluminum

  • Power Supply

    12 VDC / 3 A (US/EU standards, CE/FCC/UL certified)

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Relative Humidity

    20 to 90% RH (non-condensing)

  • Dimensions

    17 x 6.8 x 1.7" / 431.80 x 172.72 x 43.18mm

  • Weight

    4.9lbs / 2.22kg

  • UPC Code

    857391003383

About A-NeuVideo ANI-PIP

The ANI-PIP 4x1 HDMI Seamless Quad PiP Scaler is a high performance, high speed zooming/shrinking system that can be easily configured and controlled for Quad or Picture-in-Picture video processing. This unit allows (4) different input sources to be freely selected and arranged on (1) single display with supporting resolutions up to WUXGA at 60, 1080p and audio up to (8) Ch 192kHz for both the input and output. Using IR, RS-232 or TCP/IP allows instant control and switching on the output display.

A-NeuVideo ANI-PIP Features

  • Quad, Picture in Picture, Picture over Picture, Full Screen and custom display modes
  • Seamless switching between sources
  • Custom Display Mode: Size, position and selection of any or all windows are customizable
  • (8) pre-stored configuration hot keys and plus (4) customized favorite screen settings
  • Drag-n-Drop GUI interface for fast and easy changes to the screen layout
  • Supports HDTV resolutions up to 1080p and computer resolutions to 1920x1200
  • Bandwidth up to 165MHz (2.0625Gbps)
  • HDCP compliant
  • Fluid, real-time video performance with (60) frames per second (fps) in all (4) quadrants
  • Switches audio independently for video from the connected HDMI sources
  • Control the ANI-PiP through Ethernet, RS-232 serial port, on screen display (OSD), front panel buttons or IR remote
  • Fade-In-Out, Chroma key, Mirror and Rotation (90deg. left & right and 180deg. up & down) functions
  • Cascades ANI-PiP to display video from up to (16) video sources on one screen. (Each unit in the cascade must be configured and controlled individually)
  • Mounts using the included rack mount bracket or use as a desktop

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo ANI-PIP 4x1 HDMI Seamless Quad PiP PoP Scaler Switch
  • Remote Control (ANI-124)
  • Rackmount Brackets
  • User Guide
  • 12V/3A DC Power Adaptor
  • A-NeuVideo 3 Year Warranty
