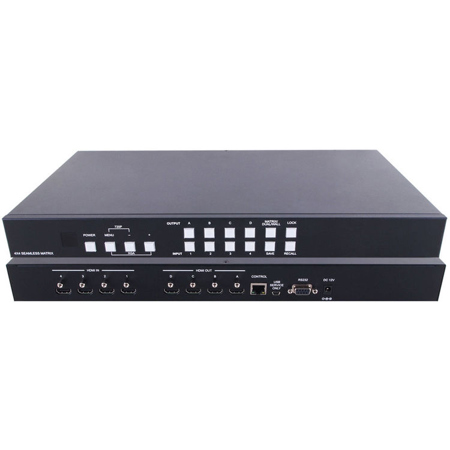

A-NeuVideo ANI-QUAD 4x4 HDMI Video Wall Processor and Seamless Matrix Switcher
See all A-NeuVideo items

A-NeuVideo ANI-QUAD 4x4 HDMI Video Wall Processor and Seamless Matrix Switcher

SKU: ANQUAD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

A-NeuVideo ANI-QUAD Specifications

  • Bandwidth

    225 MHz / 6.75 Gbps

  • Input & Output

    4x HDMI inputs
    4x HDMI outputs
    1x RJ45 control port
    1x RS-232 control port
    1x USB mini service port

  • Supported Resolution

    Up to 1920 x 1200/60 and 1920 x 1080p60

  • Color Depth

    12/10/8 bit

  • Supported Audio

    Up to 7.1-channel LPCM at 192 kHz sampling rate
    (LPCM 7.1-Ch/6-Ch/2-Ch, AC3, DTS, Dolby Digital Plus, Dolby TrueHD, DTS-HD )

  • ESD Protection

    Human Body Model:
    +/-8 kV (air-gap discharge)
    +/-4 kV (contact discharge)

  • Material

    Aluminum

  • Power Consumption

    15W

  • Power Supply

    12 VDC /3 A (US/EU standards, CE/FCC/UL certified)

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Relative Humidity

    20 - 90% RH (non-condensing)

  • Dimensions

    17 x 10 x 1.8" / 431.80 x 254.00 x 45.72mm

  • Weight

    4.85lbs / 2.20kg

  • UPC Code

    857391003543

About A-NeuVideo ANI-QUAD

The ANI-QUAD is a high performance, high speed HDMI video processing system that can be easily configured and controlled for (3) different output modes (Matrix, Dual and Video Wall) for various applications. Matrix mode routes the source signals to the output displays as a regular matrix does. Dual mode allows (2) sets of (2) selected sources to be shown on designated output displays (2 displays as a set).

Video Wall mode extends a selected source to all (4) output displays at one time. Supports full range of video resolutions up to WUXGA@60 (RB) or 1080p and different audio formats up to 7.1CH LPCM at 192kHz sampling rate based on input source capability. The ANI-QUAD control can be done through IR using the included remote control, Telnet (Ethernet), RS-232 or from the front panel buttons, the included GUI software or built-in browser.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • A-NeuVideo ANI-QUAD 4x4 HDMI Video Wall Processor and Seamless Matrix Switcher
  • Remote Control
  • Software CD Driver
  • User Guide
  • 12V/3A DC Power Adaptor
  • A-NeuVideo 3 Year Warranty
