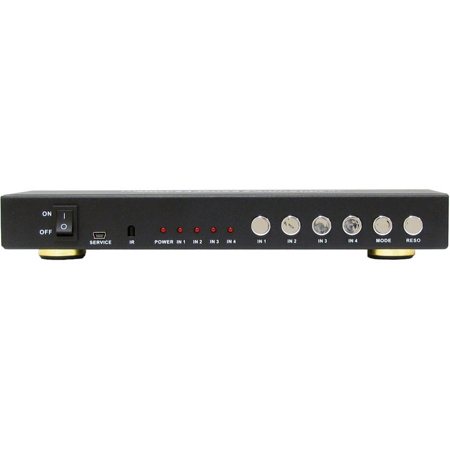

A-NeuVideo ANI-QUAD-MINI HDMI 4x1 Quad Multi-Viewer with Seamless Switcher and Cat6 Extender

The ANI-QUAD-MINI HDMI Quad Screen Multiviewer allows you to simultaneously display real-time HDMI/DVI video from (4) different sources on a single monitor. It is capable of displaying the video sources in quad, PiP or full screen mode. The audio/ video output can be extended up to 250 feet away via a single CAT6/6a/7 cable.

• Compliant with HDMI 1.3a, HDCP 1.2
• Supports multiplexed HDMI (4) inputs and (1) output
• Supports up to 1080p High Definition resolution
• Support 4x1 Quad Multi-viewer and seamless switch
• Support scaler up, scaler down function
• Support multi output resolution
• Support digital audio format LPCM/AC3/DTS
• Support button, IR, RS-232 etc. various controlled ways
• IR system allowing for control of source at display end
• Allows HDMI Audio/Video and IR signals to be transmitted over a single CAT5e/6 cable
• Quad, Picture in Picture and Full Screen display modes
• Fluid, real-time video performance with (60) frames per second (fps) in all (4) quadrants
• Switch audio independently of video from connected HDMI sources in Quad mode
• Control the multiviewer through front panel buttons, IR remote or Graphical User Interface (GUI) via RS-232
• Bi-directional IR control from multiviewer and remote unit locations
• Cascade multiviewers to display video from any number of video sources on (1) screen
• Each unit in the cascade must be configured and controlled individually
• Cascaded outputs can be extended using the remote unit as long as the combined total CAT6/6a/7 cable length between all levels of the cascade does not exceed 250 feet
• Adjust output video brightness, contrast, color and sharpness
• Supports simultaneous local and remote HDMI output
• Features coax SPDIF audio outputs at the multiviewer and receiver
• Built-in default EDID table
• Supported output resolutions can be selected
• ARC (Audio Return Channel) support at the receiver unit via coax SPDIF output for speakers
• Turn ARC on to play audio from an HDTV with ARC support to the connected speakers
• Turn ARC off to play audio from the multiviewer source to the connected speakers

Quad Mode
• In quad mode, the screen is split into (4) fields of equal size each displaying the entire contents of (4) different video sources
• Fluid, real-time video performance with 60 frames per second (fps) in all (4) quadrants

Full Screen Mode
• In full screen mode, (1) of the (4) video sources is displayed in full screen size and maximum resolution

Picture in Picture (PIP) Mode
• In PIP mode, the full screen display of (1) of the (4) video sources is accompanied by (3) small images (thumbnails) of the (3) other video sources on the right hand margin of the screen allowing simultaneous monitoring. Independent video in to video out resolution
• Supports HDTV resolutions up to 1080p and computer resolutions to 1920x1200

HDMI features supported
• Inputs: 24, 30 and 36bit xvYCC, sRGB and YCbCr
• Outputs: 24 and 30bit sRGB
• (4) channel non-mixing or (1) channel mixing stereo with 16, 20 or 24bit uncompressed PCM audio
• Bandwidth up to 165MHz
• Inputs: 2.25 Gbps
• Output: 2.0625 Gbps
