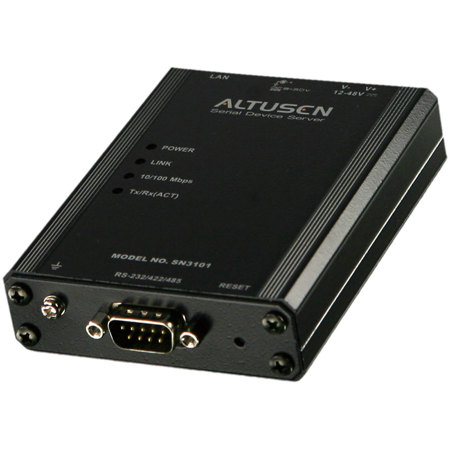

Aten SN3101 One Port RS-232/422/485 Serial Device Server

SKU: ANSN3101 MFR: SN3101
Earn VIP Reward Points

Key Features

  • Effortlessly connect serial devices to your network with this RS-232/422/485 serial device server.
  • Enjoy flexible power input options with both DC terminal block and adapter jack for convenience.
  • Ensure reliable data transmission with 15 KV ESD protection on the serial port interface.
  • Easily manage network protocols like TCP, UDP, and HTTP for seamless device integration.
  • Monitor device status with LED indicators for power, link, and data activity, enhancing control.
  • Experience robust performance with a wide operating temperature range, suitable for diverse environments.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten SN3101 Specifications

  • Connectors: Serial

    1x DB-9 Male (Black)

  • Connectors: Network

    1x RJ-45 (Black)

  • Connectors: Power

    PWR1: 1x 2-pin Terminal Block (Green)
    PWR2: 1x DC Jack (Black)

  • Switches: Reset

    1x Semi-recessed Pushbutton

  • LEDs: Power

    1x Green

  • LEDs: Link

    1x Green

  • LEDs: 10/100 Mbps

    1x Orange / Green

  • LEDs: T x R x ( ACT )

    1x Green

  • Power Input: PWR1

    12-48V DC (2-pin Terminal Block)

  • Power Input: PWR2

    9-30V DC (Power Adapter Jack)

  • Power Input: Power Adapter

    100-240V AC; 50-60 Hz

  • Power Input: Power Line Protection

    4KV burst (EFT), EN61000-4-42KV surge, EN61000-4-4

  • Power Consumption

    9V, 2.7W

  • Serial Interfaces: Standards

    RS-232/422/485; Software selectable

  • Serial Interfaces: Baud Rate

    460Kbps

  • Serial Interfaces: RS-232 Signals

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • Serial Interfaces: RS-422 Signals

    Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND

  • Serial Interfaces: RS-485 Signals

    Data+, Data-, GND

  • Serial Interfaces: Serial Protection

    15 KV ESD Protection for the serial port

  • Serial Interfaces: Parity

    None, Even, Odd, Mark, Space

  • Serial Interfaces: Data Bits

    5, 6, 7, 8

  • Serial Interfaces: Stop Bits

    1, 1.5, 2

  • Serial Interfaces: Flow Control

    None, XON/XOFF, RTS/CTS

  • Network Interfaces: Standards

    10/100BaseTX; Autosensing

  • Network Interfaces: Protection

    1.5 KV Magnetic Isolation

  • Network Interfaces: Protocols

    ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IP, TCP, UDP, NTP, PPP, RADIUS, Telnet, SNMP, SNMP Trap, SMTP, SSH

  • Regulatory Approval

    FCC Class A, CE Class A, RoHS

  • Operating Temperature

    0 to 60 deg. C / 32 to 140 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    0-95% RH, Non-Condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    10.69 x 7.90 x 2.44cm / 4.21 x 3.11 x 0.96"

  • Weight

    0.22kg / 0.49lbs

  • UPC Code

    672792411151

About Aten SN3101

For businesses seeking to modernize their serial communications, the SN3101 One Port RS-232/422/485 Serial Device Server stands as a robust solution. This device is engineered to facilitate RS-232, RS-422, and RS-485 data transfers while simultaneously providing Ethernet connectivity, thereby enhancing the functionality of serial devices across a multitude of commercial settings. Industries such as industrial control, data acquisition, access control, environmental monitoring, banking, telecommunications, and remote site management will find the SN3101 to be an invaluable asset in their operations.

The SN3101 is designed to revolutionize the way legacy serial devices communicate by leveraging the speed and reliability of contemporary communication technologies. Key features include:

- Software-selectable RS-232/422/485 3-in-1 serial port, allowing for seamless integration with a variety of serial interfaces.
- Built-in 15KV ESD protection for the serial port, ensuring the safety and longevity of connected devices against electrical surges.
- A maximum baud rate of 460 Kbps, providing swift data transmission rates for efficient operations.
- A comprehensive range of serial operation modes to cater to specific application needs, including Console Management, Real COM, TCP Server, TCP Client, UDP, Serial Tunnel, and Virtual Modem.
- High-level security with 128-bit SSL encryption for serial data transmission, safeguarding sensitive information across network communications.
- Redundancy support through multiple simultaneous Real COM, TCP Server, and TCP Client connections, ensuring continuous operation even in the event of a single connection failure.
- A 64 Kbyte port buffer to prevent data loss during network downtime, maintaining data integrity at all times.
- Compatibility with a range of operating systems, including Real COM drivers for Windows 2000/XP/2003/Vista and Real TTY drivers for Linux, with Fixed TTY drivers for Unix.
- Modbus Ethernet-to-Serial support, enabling the seamless integration of Modbus devices into the network.
- Modem emulation that allows existing modem-based applications to transition to IP network connections without requiring significant changes.
- Virtual Terminal support for VT320, VT52, VT100, VT220, facilitating remote device management and control.

Configuration and management of the SN3101 are made user-friendly through a variety of access methods, including a Web Console (HTTP/HTTPS), Telnet/SSH Console, and a dedicated Windows utility. These tools enable efficient device setting adjustments, monitoring, backup, restore, and firmware upgrades.

The Serial Network Device Manager, a Windows-based utility, streamlines the management of the SN3101 installation, offering a centralized platform for overseeing the entire network of serial devices.

For organizations that prioritize security, the SN3101 offers centralized access control with external authentication support for RADIUS, LDAP(S), and Microsoft Active Directory, enabling administrators to enforce security policies effectively.

Additionally, the SN3101 is equipped with SNMP MIB II and RS-232 MIB for comprehensive network management, along with SMTP and SNMP trap event notification for proactive monitoring.

Users have the flexibility to choose their power input between an AC-DC adapter or direct DC, accommodating various installation environments.

In summary, the SN3101 One Port RS-232/422/485 Serial Device Server is a versatile, efficient, and secure solution for integrating legacy serial devices into modern IP-based networks, ensuring that your business's critical operations remain connected and protected.

Aten SN3101 Features

  • Versatile 3-in-1 serial port supporting RS-232, RS-422, and RS-485 data transfers
  • High-speed connectivity with a maximum baud rate of 460 Kbps for efficient data transmission
  • Secure networking with 128-bit SSL encryption for safe serial data communication
  • Software-selectable serial interfaces and comprehensive operation modes for tailored usage
  • Easy management via Web Console, Windows utility, and SNMP for robust network control
  • Built-in 15KV ESD protection for device safety and Modbus support for seamless integration

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Effortlessly connect serial devices to your network with this RS-232/422/485 serial device server.
  • Enjoy flexible power input options with both DC terminal block and adapter jack for convenience.
  • Ensure reliable data transmission with 15 KV ESD protection on the serial port interface.
  • Easily manage network protocols like TCP, UDP, and HTTP for seamless device integration.
  • Monitor device status with LED indicators for power, link, and data activity, enhancing control.
  • Experience robust performance with a wide operating temperature range, suitable for diverse environments.

What's in the box:

  • Aten SN3101 One Port RS-232/422/485 Serial Device Server
  • Power Adapter
  • DC Terminal Connector
  • Mounting Kit
  • User Instructions
  • Software CD
  • Aten 3 Year Limited Warranty
