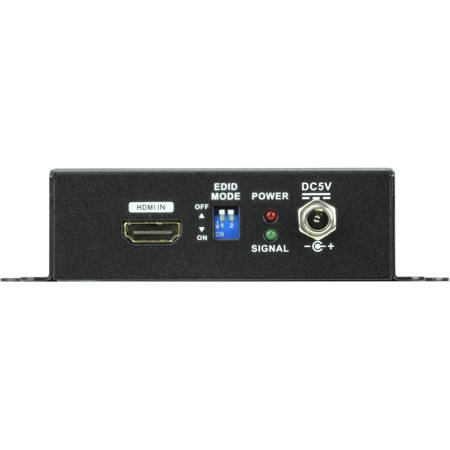

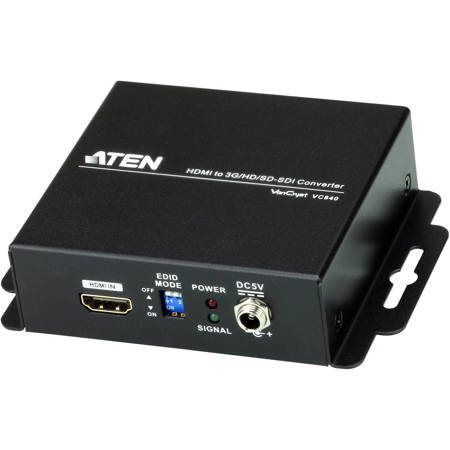

Aten VC840 HDMI to 3G/HD/SD-SDI Converter

SKU: ANVC840 MFR: VC840
Earn VIP Reward Points

Key Features

  • Effortlessly convert HDMI to 3G/HD/SD-SDI with the Aten VC840 format converter for stable video.
  • Ensure real-time transmission for your broadcast needs using this easy-to-use video converter.
  • Enjoy format compatibility across various SDI standards, making integration a breeze with this device.
  • Achieve high resolution video output, up to 1080p, with this durable HDMI to SDI converter.
  • Simplify your video workflow; this video format converter supports plug-and-play for easy setup.
  • Rely on stable performance for professional video conversion; perfect for live events and studios.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten VC840 Specifications

  • Video Input

    Interface: 1x HDMI Type A Female (Black)
    Impedance: 100Ohms

  • Video Output

    Interface: 2x BNC (Gold)
    Impedance: 75Ohms

  • Video

    Max. Data Rate: 2.97Gbps
    Max. Pixel Clock: 148.5MHz
    Supported Resolutions:
    NTSC at 59.96Hz, PAL at 50 Hz;
    720p at 50/59.94/60 Hz;
    1080i at 50/59.94/60 Hz;
    1080p at 23.97/24/25/29.97/30/50/59.94/60 Hz
    Max distance: 90m / 295.27' (3G-SDI); 150m / 492.12' (HD-SDI); 300m / 984.24' (SD-SDI)

  • Audio Output

    Analog: 2x RCA (Red/White)
    Digital: 1x RCA (Yellow)

  • SDI Formats

    SD-SDI (SMPTE 259M, up to 270Mbps)
    HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
    3G-SDI (SMPTE 424M, 425M level A, up to 2.97Gbps)

  • EDID Settings

    EDID Mode: Learn

  • Power Connector

    1x DC Jack

  • Power Consumption

    5VDC, 3.5W

  • Switches

    EDID Mode: 2x Dip Switch

  • LEDs

    Power: 1 (Red)
    Signal: 1 (Green)

  • Housing

    Metal

  • Operating Temp.

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temp.

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    20-90% RH, Non-condensing

  • Dimensions (L x W x H)

    12.22 x 10.70 x 3.04cm / 4.81 x 4.21 x 1.20"

  • Weight

    0.29kg / 0.64lbs

  • UPC Code

    672792005640

About Aten VC840

What sets the VC840 HDMI to 3G/HD/SD-SDI Converter apart is its high-quality, efficient, and reliable performance in real-time high-definition signal conversion. This durable and user-friendly device is designed to facilitate a 100% digital conversion of both SDI and HDMI signals, ensuring zero loss of quality in audio and video transmission.

The VC840 HDMI to 3G/HD/SD-SDI Converter is compatible with a broad spectrum of devices, including HDMI, 3G HD-SDI, analog, audio, and SDI. This compatibility makes it a versatile solution for various applications, from professional broadcasting to post-production monitoring.

One of the standout features of the VC840 HDMI to 3G/HD/SD-SDI Converter is its provision of two low-jitter SDI outputs. This dual display capability enhances its functionality and adaptability in diverse professional settings.

In essence, the VC840 HDMI to 3G/HD/SD-SDI Converter is a dependable tool for converting HDMI signals to 3G/HD/SD-SDI, making it an invaluable asset for professionals working with high-definition video equipment.

Aten VC840 Features

  • High-quality HDMI to 3G/HD/SD-SDI converter for professional video applications
  • 100% digital conversion ensures zero loss of audio and video quality
  • Compatible with a wide range of devices including HDMI, 3G HD-SDI, analog, audio, and SDI
  • Provides two low-jitter SDI outputs for dual display functionality
  • User-friendly and reliable solution for real-time high-definition signal conversion
  • Ideal for professional broadcasting and post-production monitoring

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Effortlessly convert HDMI to 3G/HD/SD-SDI with the Aten VC840 format converter for stable video.
  • Ensure real-time transmission for your broadcast needs using this easy-to-use video converter.
  • Enjoy format compatibility across various SDI standards, making integration a breeze with this device.
  • Achieve high resolution video output, up to 1080p, with this durable HDMI to SDI converter.
  • Simplify your video workflow; this video format converter supports plug-and-play for easy setup.
  • Rely on stable performance for professional video conversion; perfect for live events and studios.

What's in the box:

  • Aten VC840 HDMI to 3G/HD/SD-SDI Converter
  • Power Adapter
  • User Instructions
  • Aten 3 Year Limited Warranty
