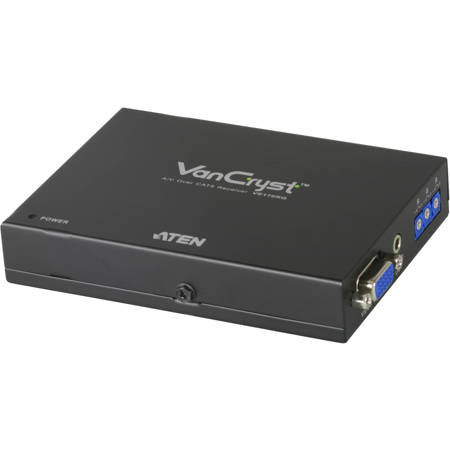

Aten VE170Q Audio/Video Over Cat5 Extender for VS1208T and VS1204T Transmitters, Connects up to 1000'

SKU: ANVE170Q MFR: VE170Q
Earn VIP Reward Points

Key Features

  • Extend your audio/video signals up to 1000ft with this Aten Cat5 Extender for seamless connectivity.
  • Enjoy high-resolution video (1920x1200) at impressive distances using this reliable KVM extender.
  • This audio/video extender supports VS1208T/VS1204T transmitters for versatile compatibility options.
  • Fine-tune your display with manual gain control and RGB tuner knobs on the receiver for optimal performance.
  • Built with a durable metal housing, this extender ensures long-lasting performance in any environment.
  • Simplify setup with the included mounting kit and power adapters for a hassle-free KVM installation.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten VE170Q Specifications

  • Compatibility

    VS1208T and VS1204T Transmitters

  • Video Input

    Transmitter:
    Interface: 1x HDB-15 Male (Blue)
    Impedance: 75Ohms
    Max Distance: 1.8m / 5.91'

  • Video Output

    Transmitter Interface: 1x HDB-15 Female (Blue)
    Receiver Interface:1x HDB-15 Female (Blue)
    Impedance: 75Ohms

  • Video

    Max Bandwidth: 300MHz
    Max Resolutions / Distance: Up to 1920 x 1200 at 60Hz at 150m / 492.12'; 1280 x 1024 at 60Hz at 300m / 984.24'

  • Audio Input

    Transmitter: 1x Mini Stereo Jack Female (Green)

  • Audio Output

    Transmitter: 1x Mini Stereo Jack Female (Green)
    Receiver: 1x Mini Stereo Jack Female (Green)

  • Unit to unit connector

    1x RJ-45 Female

  • LEDs

    Receiver:
    Power: 1 (Green)

  • Switch

    Receiver:
    Manual Gain Control: 2x Knob
    RGB Tuner: 3x Knob

  • Power Connector

    1x DC Jack

  • Power Consumption

    Transmitter: 5.3VDC, 0.9W
    Receiver: 5.3VDC, 4.82W

  • Cable Distance

    300m / 984.24'

  • Housing

    Metal

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-Condensing

  • Dimensions (L x W x H)

    12.77 x 9.04 x 2.26cm / 5.03 x 3.56 x 0.89"

  • Weight

    0.25kg / 0.55lbs

  • UPC Code

    672792002632

About Aten VE170Q

For professionals seeking a reliable and efficient solution for transmitting high-quality audio and video content, the VE170Q Audio/Video Over Cat5 Extender is an excellent choice. This innovative system, which includes a VE170T Transmitter unit and a VE170R or VE170RQ Receiver unit, is designed to deliver superior performance and durability.

This user-friendly extender allows you to connect the transmitter and receiver units using a Cat 5e cable, facilitating the transmission of audio and video signals up to a remarkable distance of 1000 feet (300 meters) from the source. This extended range provides unprecedented flexibility in the placement of your transmitters and receivers, making it an ideal solution for various setups and environments.

The VE170R and VE170RQ Receiver units are also compatible with the Aten VS1204T/VS1208T A/V Over Cat 5 Splitter, allowing them to function as transmitters. This versatility further enhances the functionality of this high-quality extender, providing you with more options for your audio and video transmission needs.

One of the standout features of the VE170Q Audio/Video Over Cat5 Extender is the inclusion of Aten's patented Deskew technology in the VE170RQ receiver unit. This advanced technology supports the manual synchronization of RGB signals and corrects color phase and timing errors that can occur over long distances. This ensures that your audio and video content maintains its quality, regardless of the distance it travels.

In summary, the VE170Q Audio/Video Over Cat5 Extender offers a comprehensive solution for your audio and video transmission needs, combining high-quality performance, extended range, and innovative features in a durable and user-friendly package.

Aten VE170Q Features

  • Uses Cat 5e cable to connect the transmitter and receiver units
  • Supports one local and one remote display
  • Long distance transmission up to 300 m
  • Deskew Function (VE170RQ) - allows you to synchronize the time delay of RGB signals to compensate for distance
  • Superior video quality: 1920x1200 at 60Hz (150 m);1280x1024 at 60Hz (300 m)
  • Audio enabled (mono)
  • Adjustable gain/compensation control
  • BBuilt-in 8KV/15KV ESD protection
  • Rack-mountable
  • Complies with VESA FDMI mount standard

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your audio/video signals up to 1000ft with this Aten Cat5 Extender for seamless connectivity.
  • Enjoy high-resolution video (1920x1200) at impressive distances using this reliable KVM extender.
  • This audio/video extender supports VS1208T/VS1204T transmitters for versatile compatibility options.
  • Fine-tune your display with manual gain control and RGB tuner knobs on the receiver for optimal performance.
  • Built with a durable metal housing, this extender ensures long-lasting performance in any environment.
  • Simplify setup with the included mounting kit and power adapters for a hassle-free KVM installation.

What's in the box:

  • Aten VE170T Transmitter
  • VE170RQ Receiver
  • VGA/Audio Cable (1.8m)
  • 2x Power Adapters
  • Mounting Kit (2 pcs)
  • User Instructions
  • Aten 3 Year Limited Warranty
