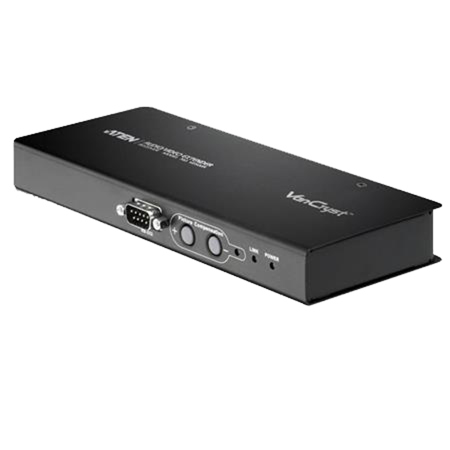

Aten VE500R Audio/Video Over Cat5 Receiver for VM0808T / VM1616T Matrix Switches, Connects Up to 500' Distance

SKU: ANVE500R MFR: VE500R
$192.95
$250.00
Save: $57.05 (23%)
Earn VIP Reward Points

Key Features

  • Extend your AV signals up to 500' with this reliable Audio/Video Over Cat5 Receiver.
  • Achieve high-resolution video output (1920x1200) using this performance-driven receiver.
  • This Aten receiver is compatible with VM0808T and VM1616T Matrix Switches for seamless use.
  • Enjoy clear stereo audio output through the mini stereo jack of this versatile receiver.
  • Control your devices remotely with the integrated RS-232 serial connectivity feature.
  • Durable metal housing ensures long-lasting performance for your KVM cable setup.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten VE500R Specifications

  • Compatibility

    VM0808T and VM1616T Matrix Switches

  • Video Output

    Interface: 1x HDB-15 Female (Blue)
    Impedance: 75Ohms

  • Video

    Max Bandwidth: 300MHz
    Max Resolutions / Distance: 1920 x 1200 at 60Hz at 30m / 98.42'; 1280 x 1024 at 60Hz at 200m / 656.16'

  • Audio Output

    Balanced: 1x Captive Screw Connector, 5 Pole (Green)
    Stereo: 1x Mini Stereo Jack Female (Green)

  • Control: RS-232

    Connector: 1x DB-9 Male (Black)
    Serial Control Pin Configurations: Pin2 = Rx, Pin 3=Tx, Pin 5= Gnd

  • Unit to Unit Connector

    1x RJ-45 Female

  • Switches

    Compensation / Up: 1x Pushbutton
    Compensation / Down: 1x Pushbutton

  • LEDs

    Power: 1 (Green)
    Link: 1 (Orange)
    Picture Compensation: 1 (Blue)

  • Power Connector

    1x DC Jack (Black)

  • Power Consumption

    5.3VDC, 4.04W

  • Housing

    Metal

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-Condensing

  • Dimensions (L x W x H)

    20.20 x 8.64 x 2.50cm / 7.95 x 3.40 x 0.98"

  • Weight

    0.48kg / 1.06lbs

  • UPC Code

    672792002557

About Aten VE500R

The VE500R Audio/Video Over Cat5 Receiver is a specialized device, meticulously engineered to work in perfect harmony with the Aten VM0808T and VM1616T Matrix Switches. This high-performance receiver extends signal reach up to an impressive 500 feet using Cat 5e cables, surpassing the standard 300m range. This makes the VE500R an indispensable tool for environments such as construction sites, factory floors, and control and security centers.

The VE500R's unique design allows system equipment to be safely housed in a secure location, while the display can be conveniently positioned in public view. This feature not only enhances security but also promotes operational efficiency.

Ideal for both professional and commercial use, the VE500R Audio/Video Over Cat5 Receiver ensures reliable and uninterrupted signal transmission, even in the most challenging environments. Its compatibility with VM0808T and VM1616T Matrix Switches makes it a versatile addition to any audio-visual setup, ensuring high-quality output and seamless connectivity.

In summary, the VE500R Audio/Video Over Cat5 Receiver is a robust and reliable solution for extending signal reach, offering both security and convenience in a variety of demanding settings. Its superior design and compatibility with Aten Matrix Switches make it a standout choice for those seeking optimal performance in their audio-visual equipment.

Aten VE500R Features

  • Long Distance Transmission up to 300 m
  • Superior video quality - 1920x1200 at 60Hz (30 m); 1600x1200 at 60Hz (150 m)
  • Superior audio quality - balanced audio provides flawless long-distance transmission
  • Adjustable gain control - manually adjust signal strength to compensate for distance
  • Provides RS-232 channel
  • Supports wide screen
  • Rack Mountable

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your AV signals up to 500' with this reliable Audio/Video Over Cat5 Receiver.
  • Achieve high-resolution video output (1920x1200) using this performance-driven receiver.
  • This Aten receiver is compatible with VM0808T and VM1616T Matrix Switches for seamless use.
  • Enjoy clear stereo audio output through the mini stereo jack of this versatile receiver.
  • Control your devices remotely with the integrated RS-232 serial connectivity feature.
  • Durable metal housing ensures long-lasting performance for your KVM cable setup.

What's in the box:

  • Aten VE500R Audio/Video Over Cat5 Receiver
  • Power Adapter
  • Mounting Kit
  • Terminal Block
  • User Instructions
  • Aten 3 Year Limited Warranty
