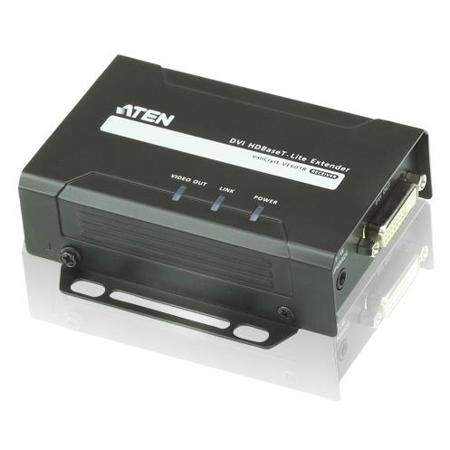

Aten VE601R DVI HDBaseT-Lite Receiver (Class B)
Aten VE601R: Picture 1 thumbnail
Aten VE601R: Picture 2 thumbnail
Aten VE601R: Picture 3 thumbnail
See all Aten items

Aten VE601R DVI HDBaseT-Lite Receiver (Class B)

SKU: ANVE601R MFR: VE601R
Be the first to review this itemAsk a Question
$179.00
Earn VIP Reward Points

Key Features

  • Extend your DVI display up to 70m with this HDBaseT-Lite receiver for optimal performance.
  • Enjoy crystal-clear video with a DVI connection, supporting resolutions up to 1920x1200.
  • This DVI receiver is HDCP compliant, ensuring compatibility with protected content sources.
  • Maximize your setup with a DVI extender, perfect for presentations or remote monitoring.
  • Compact DVI HDBaseT receiver design integrates easily into any environment, saving space.
  • Experience reliable video transmission with a DVI signal, ideal for professional setups.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Aten VE601R Specifications

  • Video Output: Interfaces

    1 x DVI-D Female (White)

  • Video Output: Impedance

    100 Ohms

  • Video Output: Max. Distance

    Up to 1.8M

  • Max. Data Rate

    10.2Gbps (3.4Gbps per lane)

  • Max. Pixel Clock

    340 MHz

  • Compliance

    DVI (3D, Deep Color)
    HDCP compatible

  • Max. Resolutions / Distance

    Up to 1920x1200 at 35 m (Cat 5e/6) / 40 m (Cat 6a);
    1080pat60 m (Cat 5e/6) / 70 m (Cat 6a)

  • Connectors

    1 x DC Jack with locking

  • Consumption

    5 VDC, 4.23 W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0 - 80% RH, Non-Condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    10.30 x 8.70 x 3.00cm / 4.06 x 3.43 x 1.18"

  • Weight

    0.25kg / 0.55lbs

About Aten VE601R

The VE601R DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable and cost-effective solution for any professional A/V installation.

The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your DVI display up to 70m with this HDBaseT-Lite receiver for optimal performance.
  • Enjoy crystal-clear video with a DVI connection, supporting resolutions up to 1920x1200.
  • This DVI receiver is HDCP compliant, ensuring compatibility with protected content sources.
  • Maximize your setup with a DVI extender, perfect for presentations or remote monitoring.
  • Compact DVI HDBaseT receiver design integrates easily into any environment, saving space.
  • Experience reliable video transmission with a DVI signal, ideal for professional setups.

What's in the box:

  • Aten VE601R DVI HDBaseT-Lite Receiver (Class B)
  • Power Adapters
  • User Instructions
  • Aten 2 Year Limited Warranty
