Aten VE602 DVI Cat5e Dual Link Extender with Audio, Extends Up to 210'
SKU: ANVE602 MFR: VE602
Earn VIP Reward PointsKey Features
- Extend your DVI signal with this Cat5e extender, reaching up to 210 feet with ease!
- Enjoy crystal-clear audio alongside your video with this DVI Cat5e extender's audio support.
- Achieve high-resolution dual link extension, up to 2560x1600 at 60Hz, using this extender.
- Simplify setup with included mounting kit and power adapters for your DVI KVM extender system.
- Experience reliable performance with a robust metal housing, ensuring durability for your extender.
- This DVI extender supports HDCP compliance, ensuring protected content displays correctly.
Temporarily On Backorder?Request assistance or get notified
Calculate Shipping
See Options
1
Add Adorama Protect:
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A

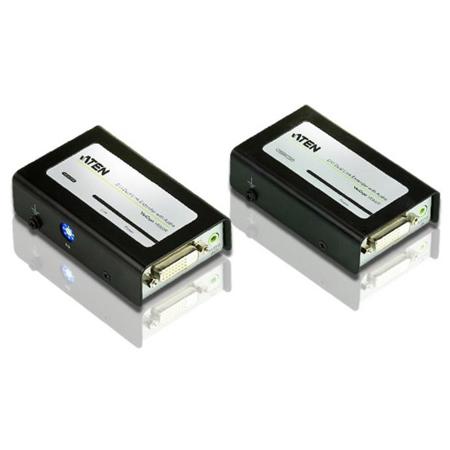

About Aten VE602
The VE602 DVI Dual Link Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE602 incorporates Aten's technology that allows A/V signals to be transmitted over one Cat 5e cable.
It uses Aten default EDID, but is able to learn and save the EDID configuration of the remote display. For dual link video signals, simply use a second Cat 5e cable. With support for stereo audio and popular widescreen video formats, the VE602 provides crystal-clear image and sound quality for installations where remote DVI video displays are required.
Aten VE602 Features
- Extends the distance between the DVI source and DVI display device
- Long distance transmission - up to 60 m
- Uses Cat 5e cable to connect the local and remote units
- Employs ATEN EDID technology that allows signal transmission over one Cat 5e cable
- Uses a second (Sub) Cat 5e cable for dual link signals
- Supports EDID Learning - Automatically learns and saves the EDID data of the display to which the Transmitter (VE602T) is connected
- Superior video quality - DVI Dual Link up to 2560 x 1600 at 60 Hz (40 m); DVI Single Link up to 1920x1200 at 60 Hz (40 m), 1024 x 768 at 60 Hz (60 m)
- Audio enabled
- 8 segment equalization adjustment switch optimizes display quality
- Built-in 8KV/15KV ESD protection
- Supports widescreen formats
- Rack mountable
Warranty Information
This product has a limited warranty of 36 months.
