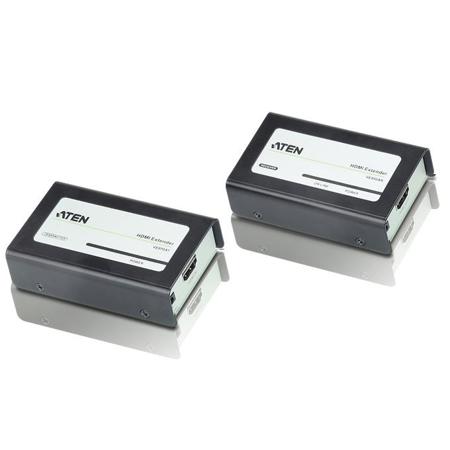

Aten VE800A HDMI Cat5e Extender for VS1808T and VS1804T Video Splitters
Aten VE800A: Picture 1 thumbnail
Aten VE800A: Picture 2 thumbnail
Aten VE800A: Picture 3 thumbnail
See all Aten items

Aten VE800A HDMI Cat5e Extender for VS1808T and VS1804T Video Splitters, Extends Up to 200'

SKU: ANVE800A MFR: VE800A
Be the first to review this itemAsk a Question
$107.00
Earn VIP Reward Points

Key Features

  • Extend HDMI signals up to 200ft with this reliable Cat5e extender kit for seamless connectivity.
  • Enjoy full HD 1080p video and audio with this HDMI extender, perfect for presentations and displays.
  • This HDMI Cat5e extender supports HDCP for protected content, ensuring compatibility and performance.
  • Easy setup with included power adapters and mounting kit, get your HDMI extender working quickly.
  • Use with VS1808T/VS1804T video splitters for extended HDMI distribution, enhancing compatibility.
  • Compact metal housing ensures durability and efficient heat dissipation for this HDMI extender system.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Aten VE800A Specifications

  • Compatibility

    VS1808T and VS1804T Video Splitters

  • Video Input

    Transmitter: Interface: 1x HDMI Type A Female (Black)
    Impedance: 100Ohms

  • Video Output

    Receiver: Interface: 1x HDMI Type A Female (Black)
    Impedance: 100Ohms.

  • Unit to Unit Connector

    2x RJ-45 Female

  • Video

    Max. Data Rate: 6.75Gbps (2.25Gbps Per Lane)
    Max. Pixel Clock: 225MHz
    Compliance: HDMI (3D, Deep Color) HDCP Compatible
    Max resolutions / Distance: Up to 1080p at 40m / 131.23'; 1080i at 60m / 196.85'

  • Audio Input

    1x HDMI Type A Female (Black)

  • Audio Output

    1x HDMI Type A Female (Black)

  • Power Connector

    1 x DC Jack

  • Power Consumption

    Transmitter: 5VDC, 1W; Receiver: 5VDC, 0.75W

  • Switches

    EQ Switch: 1x Knob for receiver

  • LEDs

    Power: 1 (Orange) for transmitter; 1 (Orange) for receiver
    On Line: 1 (Green) for receiver

  • Housing

    Metal

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-Condensing

  • Dimensions (L x W x H)

    9.00 x 5.50 x 2.40cm / 3.54 x 2.17 x 0.94"

  • Weight

    0.16kg / 0.35lbs

  • UPC Code

    672792005749

About Aten VE800A

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. Aten's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.

Aten VE800A Features

  • Extends the distance between HDMI source and HDMI display
  • Uses Cat 5e cable to connect the local and remote units
  • Features Aten EDID technology that allows transmission over one Cat 5e cable
  • Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
  • Superior video quality - 1920 x 1200, up to 1080p
  • HDMI (3D, Deep Color); HDCP Compatible
  • Supports Dolby True HD and DTS HD Master Audio
  • 8 segment equalization adjustment switch optimizes display quality
  • DDC compatible

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend HDMI signals up to 200ft with this reliable Cat5e extender kit for seamless connectivity.
  • Enjoy full HD 1080p video and audio with this HDMI extender, perfect for presentations and displays.
  • This HDMI Cat5e extender supports HDCP for protected content, ensuring compatibility and performance.
  • Easy setup with included power adapters and mounting kit, get your HDMI extender working quickly.
  • Use with VS1808T/VS1804T video splitters for extended HDMI distribution, enhancing compatibility.
  • Compact metal housing ensures durability and efficient heat dissipation for this HDMI extender system.

What's in the box:

  • Aten VE800AT HDMI Receiver
  • VE800AR HDMI Transmitter
  • 2x Power Adapters
  • Mounting Kit
  • User Instructions
  • Aten 3 Year Limited Warranty
