Aten VE801 HDMI HDBaseT-Lite Extender, Connects Up to 230'

SKU: ANVE801 MFR: VE801
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 230 feet with this reliable HDBaseT-Lite extender kit.
  • Enjoy stunning 4K video resolution at 35 meters using Cat 5e/6 or Cat 6a cabling.
  • This HDMI extender supports 3D, Deep Color, and 4K for a visually immersive experience.
  • HDCP compliance ensures seamless playback of protected content with this HDMI device.
  • Perfect for home theaters or conference rooms, extend HDMI without signal loss issues.
  • Easy to install, this HDMI HDBaseT-Lite extender includes all necessary hardware.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten VE801 Specifications

  • Video Input: Interface

    1x HDMI Type A Female (Black)

  • Video Input: Impedance

    100Ohms

  • Video Input: Max distance

    1.8m / 5.91'

  • Video Output: Interface

    1x HDMI Type A Female (Black)

  • Video Output: Impedance

    100Ohms

  • Video: Max. data rate

    10.2Gbps (3.4Gbps per lane)

  • Video: Max. pixel clock

    340MHz

  • Video: Compliance

    HDMI (3D, Deep Color, 4K)
    HDCP Compatible
    Consumer Electronics Control (CEC)

  • Video: Max resolutions / Distance

    Up to 4K at 35m / 114.83' (Cat 5e/6)/40m / 131.23' (Cat 6a),
    1080p at 60m / 196.85' (Cat 5e/6)/70m / 229.66' (Cat 6a)

  • Audio: Input

    1x HDMI Type A Female (Black)

  • Audio: Output

    1x HDMI Type A Female (Black)

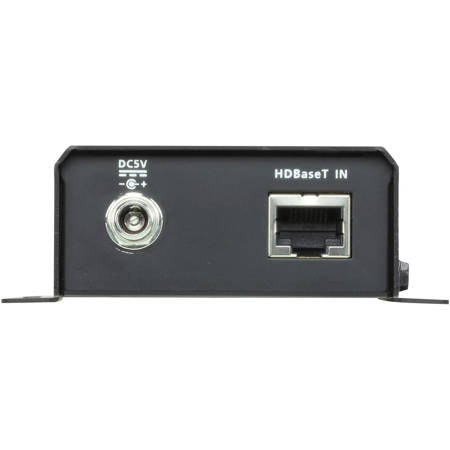

  • Power: Connector

    1x DC Jack (Black) with locking

  • Power: Consumption

    VE801T: DC5V, 1.85W
    VE801R: DC5V, 4.23W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions( L x W x H )

    10.30 x 8.70 x 3.00cm / 4.06 x 3.43 x 1.18"

  • Weight

    VE801T: 0.24kg / 0.53lbs
    VE801R: 0.25kg / 0.55lbs

  • UPC Code

    672792006067

About Aten VE801

Are you looking to extend your HDMI signal without sacrificing quality The VE801 HDMI HDBaseT-Lite Extender is a high-quality, durable solution designed to efficiently bridge the gap between your HDMI devices and your viewing or listening area. With the capability to extend an HDBaseT signal up to 230 feet (70 meters) using a single Cat 5e/6/6a cable, this innovative extender ensures that your HDMI features - including 3D, Deep Color, and stunning 4K image resolutions - are transmitted with the utmost fidelity.

In addition to supporting high-definition visuals, the VE801 is equipped to handle premium audio formats such as Dolby Digital 5.1 and DTS HD, maintaining the immersive audio experience you expect from your home theater system. Its HDCP compatibility further ensures seamless integration with a wide range of devices, making it a reliable choice for both personal and professional setups.

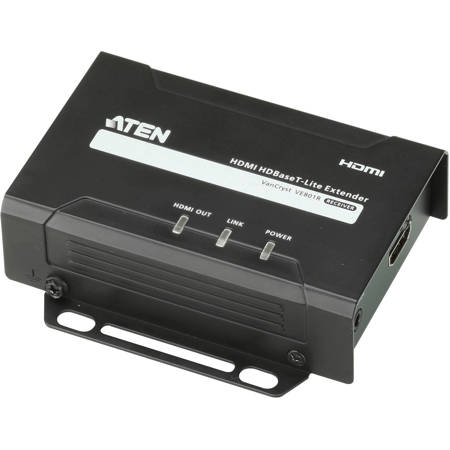

The all-in-one design of the VE801 HDMI HDBaseT-Lite Extender not only simplifies the installation process but also provides a secure and professional mounting solution. The side panel features slip-resistant grooves, reducing the risk of accidental drops during setup and providing easy visibility of the LED status indicators. Whether you're setting up a digital entertainment center or need to extend superior HDMI video quality across a large venue, the VE801 is engineered to deliver exceptional performance over great distances.

Choose the VE801 HDMI HDBaseT-Lite Extender for its efficient, reliable, and innovative approach to extending your HDMI signal with uncompromised quality.

Aten VE801 Features

  • HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  • HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
  • EDID Expert - configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens
  • Rack- Mountabl

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your HDMI signal up to 230 feet with this reliable HDBaseT-Lite extender kit.
  • Enjoy stunning 4K video resolution at 35 meters using Cat 5e/6 or Cat 6a cabling.
  • This HDMI extender supports 3D, Deep Color, and 4K for a visually immersive experience.
  • HDCP compliance ensures seamless playback of protected content with this HDMI device.
  • Perfect for home theaters or conference rooms, extend HDMI without signal loss issues.
  • Easy to install, this HDMI HDBaseT-Lite extender includes all necessary hardware.

What's in the box:

  • Aten VE801T HDMI HDBaseT-Lite Transmitter-VE801T HDMI HDBaseT-Lite Receiver
  • 2x Power Adapters
  • User Instructions
  • Aten 3 Year Limited Warranty
