Aten VE802R Specifications

  • Video Input: Interfaces

    1 x HDMI Type A Female (Black)

  • Video Input: Impedance

    100 Ohms

  • Video Input: Max. Distance

    1.8 m

  • Video Output: Interfaces

    1 x HDMI Type A Female (Black)

  • Video Output: Impedance

    100 Ohms

  • Max. Data Rate

    10.2Gbps (3.4Gbps per lane)

  • Max. Pixel Clock

    340 MHz

  • Compliance

    HDMI (3D, Deep Color, 4K)
    HDCP Compatible
    Consumer Electronics Control (CEC)

  • Max. Resolutions / Distance

    Up to 4K at 35m (Cat 5e/6) / 40m (Cat 6a);
    1080pat60m (Cat 5e/6) / 70m (Cat 6a)

    4K supported:
    4096 x 2160 / 3840 x 2160 at 60Hz (4:2:0);
    4096 x 2160 / 3840 x 2160 at 30Hz (4:4:4)

  • Connectors

    1 x DC Jack (Black) with locking

  • Consumption

    DC5V, 4W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0 - 80% RH, Non-Condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    14.48 x 12.30 x 3.00cm / 5.70 x 4.84 x 1.18"

  • Weight

    0.46kg / 1.01lbs

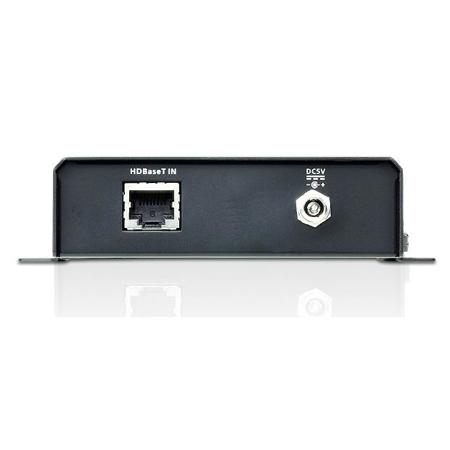

About Aten VE802R

The VE802R HDMI HDBaseT-Lite Receiver connects with HDBaseT transmitters to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802R is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802R is perfect for a digital entertainment center or any installation that requires superior video quality.

Aten VE802R Features

  • HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  • HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
  • POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
  • Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel - IR transmission is processed one direction at a time
  • Rack- Mountable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Aten VE802R HDMI HDBaseT-Lite Receiver with PoH (Class B)
  • IR Receiver
  • Power Adapter
  • Terminal Block
  • Aten 2 Year Limited Warranty
