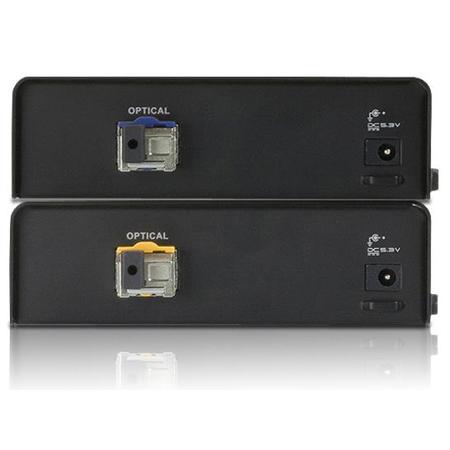

Aten VE882 HDMI Optical Extender
Aten VE882: Picture 1 thumbnail
Aten VE882: Picture 2 thumbnail
Aten VE882: Picture 3 thumbnail
See all Aten items

Aten VE882 HDMI Optical Extender, Connects Up to 1968.48'

SKU: ANVE882 MFR: VE882
Be the first to review this itemAsk a Question
$1,470.00
OR
$123/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend HDMI signals up to 1968.48' with this Aten HDMI optical extender for ultimate connectivity!
  • Experience superior performance with this HDMI extender, supporting 1080p/60Hz via single fiber.
  • This durable HDMI extender features a robust metal housing, ensuring long-lasting reliability.
  • Enjoy versatile connectivity with RS-232 and IR ports on this high-performance HDMI extender.
  • Compact design: Transmitter/receiver dimensions are 5.78 x 4.06 x 1.18", easy to integrate!
  • Reliable Aten HDMI extender with a 3-year limited warranty, providing peace of mind with your purchase.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Aten VE882 Specifications

  • Connectors: HDMI In

    Transmitter: 1x HDMI Type A Female (Black)

  • Connectors: HDMI Out

    Receiver: 1 x HDMI Type A Female (Black)

  • Connectors: Optical In/Out

    1x LC Simplex Connector (SFP) (Bi-directional)

  • Connectors: RS-232

    1x Terminal Block, 3 pole

  • Connectors: IR

    1x mini stereo jack (Black)

  • Connectors: Power

    1x DC Jack (Black)

  • Operating distance

    600m / 1968.48' with single mode (SM) fiber

  • Wavelength

    1310/1550 nm for SM

  • Data rate

    Single fiber: 1080p/60Hz

  • LEDs: Power/Link

    1x Green

  • Power Consumption

    Transmitter: DC5.3V, 5.6W
    Receiver: DC5.3V, 5.1W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    Transmitter: 14.69 x 10.30 x 3cm / 5.78 x 4.06 x 1.18"
    Receiver: 14.69 x 10.30 x 3cm / 5.78 x 4.06 x 1.18"

  • Weight

    Transmitter: 0.42kg / 0.93lbs
    Receiver: 0.42kg / 0.93lbs

  • UPC Code

    672792003530

About Aten VE882

Extends the transmission range of HDMI, IR and RS-232 signals using one fi ber optic cable Very long distance transmission - up to 600m for VE882, up to 20km for VE892 HDMI (3D, Deep Color), HDCP compatible - signaling rates up to 3.125 Gbits Superior video quality - up to 1080p at 60Hz Supports full frequency IR signal from 30KHz to 60KHz. Uses one fi ber optic cable to connect the local and remote units Supports wide screen formats Built-in 8KV/15KV ESD protection Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc. Supports bi-directional IR signal transmission, one way at a time Rack-mountable Hot-pluggable.

Aten VE882 Features

  • Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
  • Very long distance transmission - up to 600m for VE882, up to 20km for VE892
  • HDMI (3D, Deep Color), HDCP compatible - signaling rates up to 3.125 Gbits
  • Superior video quality - up to 1080p at 60Hz
  • Supports full frequency IR signal from 30KHz to 60KHz
  • Uses one fiber optic cable to connect the local and remote units
  • Supports wide screen formats
  • Built-in 8KV/15KV ESD protection
  • Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc
  • Supports bi-directional IR signal transmission, one way at a time
  • Rack-mountable
  • Hot-pluggable

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend HDMI signals up to 1968.48' with this Aten HDMI optical extender for ultimate connectivity!
  • Experience superior performance with this HDMI extender, supporting 1080p/60Hz via single fiber.
  • This durable HDMI extender features a robust metal housing, ensuring long-lasting reliability.
  • Enjoy versatile connectivity with RS-232 and IR ports on this high-performance HDMI extender.
  • Compact design: Transmitter/receiver dimensions are 5.78 x 4.06 x 1.18", easy to integrate!
  • Reliable Aten HDMI extender with a 3-year limited warranty, providing peace of mind with your purchase.

What's in the box:

  • Aten VE882T
  • VE882R
  • IR Transmitter
  • IR Receiver
  • Mounting Kit
  • 2x Power Adapters
  • User Instructions
  • Aten 3 Year Limited Warranty
