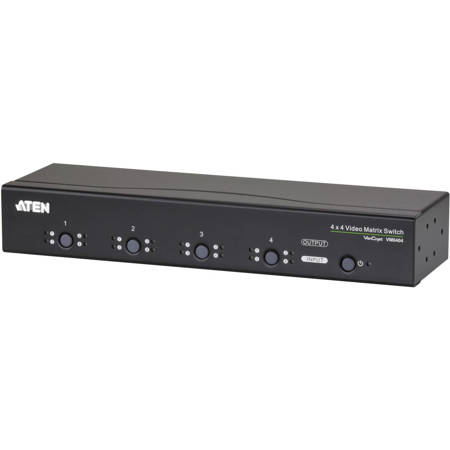

Aten VM0404 4x4 Video Matrix Switch with Audio

SKU: ANVM0404 MFR: VM0404
Earn VIP Reward Points

Key Features

  • Seamlessly switch VGA video and audio with this 4x4 video matrix switch.
  • Enjoy high resolution video output, up to 1920x1440 at 60Hz, for crisp images.
  • Easily manage your audio/video setup using the intuitive front-panel pushbuttons.
  • This video switch offers reliable connection and durable metal housing for longevity.
  • Use RS-232 control for remote operation, ideal for presentations and displays.
  • Get good compatibility with various devices using standard HDB-15 and stereo jacks.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten VM0404 Specifications

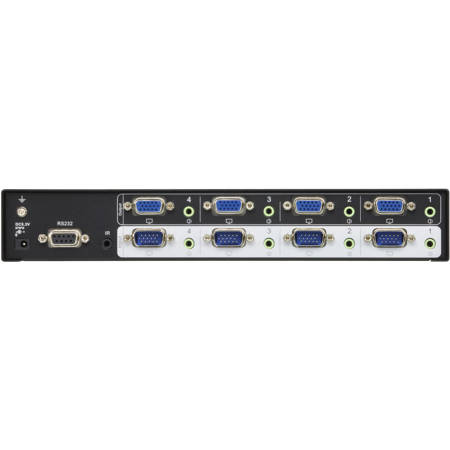

  • Connectors: Video In

    4x HDB-15 Male (Blue)

  • Connectors: Audio In

    4x Mini Stereo Jack Female (Green)

  • Connectors: Video Out

    4x HDB-15 Female (Blue)

  • Connectors: Audio Out

    4x Mini Stereo Jack Female (Green)

  • Connectors: RS-232

    1x DB-9 Female (Black)

  • Connectors: IR Port

    1x Mini Stereo Jack Female (Black)

  • Connectors: Power

    1x DC Jack

  • Switches: Port Selection

    4x Pushbuttons

  • Switches: Power

    1x Pushbutton

  • LEDs: Port Selections

    16x Green

  • LEDs: Power

    1x Green / Orange

  • Video: Bandwidth

    300MHz

  • Video: Resolution

    1920 x 1440 at 60Hz

  • Power Consumption

    DC5.3V, 2.7W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    26.00 x 7.61 x 4.20cm / 10.24 x 3.00 x 1.65"

  • Weight

    0.87kg / 1.92lbs

  • UPC Code

    672792004353

About Aten VM0404

A sophisticated and advanced solution for multi-display audio and video setups, the VM0404 4x4 Video Matrix Switch with Audio seamlessly connects four VGA source devices to four VGA monitors, displays, or projectors simultaneously. This high-quality, efficient device stands out with its unique features, including EDID mode selection for superior compatibility and a long signal range for optimal performance.

The VM0404 4x4 Video Matrix Switch with Audio offers easy source and display switching, making it a reliable choice for managing complex matrix connections. As a Matrix Switch, it provides the flexibility to independently connect each input to any or all outputs. This feature, coupled with the ability to independently switch audio and video inputs from each source device, offers unrivaled control in any multi-display audio or video installation.

Whether you're connecting cameras, computers, or other video devices, this sophisticated switcher is compatible with a wide range of devices thanks to its variety of input and output interfaces, including VGA, RGB, and audio. The VM0404 4x4 Video Matrix Switch with Audio is the ultimate tool for those seeking a versatile, high-quality solution for managing multiple video and audio sources.

Aten VM0404 Features

  • Connects any of four VGA Video + Audio inputs to any of four VGA Video + Audio outputs
  • Long distance transmission - up to 30m
  • Easily switch between multiple sources and multiple displays
  • Easy Operation:
  • Front panel pushbuttons
  • RS-232 serial controller
  • Superior video quality - up to 1920 x 1440, VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
  • Supports up to 300 MHz bandwidth for high performance video
  • EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
  • Built-in bi-directional RS-232 serial port for high-end system control
  • Independent switching of audio and video sources - each input can be independently connected to any or all outputs for flexibility
  • Rack Mountable
  • All-metal casing

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly switch VGA video and audio with this 4x4 video matrix switch.
  • Enjoy high resolution video output, up to 1920x1440 at 60Hz, for crisp images.
  • Easily manage your audio/video setup using the intuitive front-panel pushbuttons.
  • This video switch offers reliable connection and durable metal housing for longevity.
  • Use RS-232 control for remote operation, ideal for presentations and displays.
  • Get good compatibility with various devices using standard HDB-15 and stereo jacks.

What's in the box:

  • Aten VM0404 4x4 Video Matrix Switch with Audio
  • Power Adapter
  • User Instructions
  • Aten 3 Year Limited Warranty
