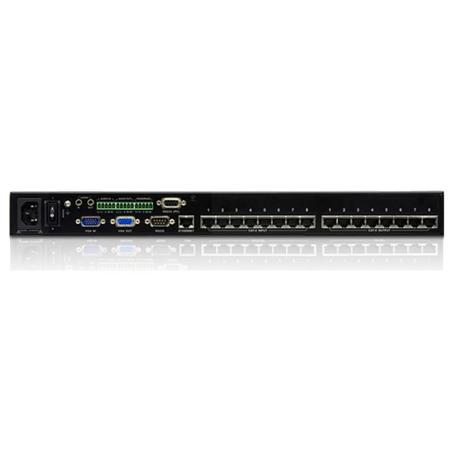

Aten VM0808T 8x8 VGA/Audio Cat5e/6 Matrix Switch with Web Browser and RS-232

SKU: ANVM0808T MFR: VM0808T
Earn VIP Reward Points

Key Features

  • Effortlessly manage VGA & audio with this 8x8 matrix switch, perfect for presentations.
  • Use the web browser interface for easy, remote control of your video switching system.
  • Extend signals up to 300m using Cat5e/6 cable, ensuring reliable video distribution.
  • Enjoy seamless integration with RS-232 for advanced control system compatibility.
  • This affordable video switcher supports multiple users, ideal for collaborative environments.
  • Benefit from low latency switching, maintaining high-quality audio/video output.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Aten VM0808T Specifications

  • Input Connections: Direct

    1x local

  • Input Connections: Maximum

    9 (1x local input, 8x VE500T Transmitter)

  • Display Connections: Direct

    1x local

  • Display Connections: Maximum

    9 (1x local display, 8x x VE500R/RQ Receiver)

  • Local: Audio In

    Balanced: 1x Captive Screw Connector, 5 pole
    Stereo: 1x Mini Stereo Jack Female (Green)

  • Local: Video In

    1x HDB-15 Male (Blue)

  • Local: Audio Out

    Balanced: 1x Captive Screw Connector, 5 pole
    Stereo: 1x Mini Stereo Jack Female (Green)

  • Local: Video Out

    1x HDB-15 Female (Blue)

  • Unit to Unit: A/V In

    8x RJ-45 Female

  • Unit to Unit: A/V Out

    8x RJ-45 Female

  • Ethernet

    1x RJ-45 Female

  • Serial: RS-232

    1x DB-9 Female (Black), 1x DB-9 Male (Black)

  • Serial: RS-485 / RS-422

    1x Captive Screw Connector, 5 pole

  • Power

    1x 3-prong AC Socket

  • Switches: Up / Down / Left / Right

    4x Pushbutton

  • Switches: Menu

    1x Pushbutton

  • Switches: Audio

    1x Pushbutton

  • Switches: Esc

    1x Pushbutton

  • Switches: Enter

    1x Pushbutton

  • Switches: Power

    1x Rocker

  • Switches: Display

    1x LCD Display (Green)

  • LEDs: Menu

    1x Blue

  • LEDs: Audio

    1x Blue

  • LEDs: Up / Down / Left / Right

    4x Blue

  • Power Consumption

    110V / 16W, 220V / 17W

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (L x W x H)

    43.20 x 25.30 x 4.40cm / 17.01 x 9.96 x 1.73"

  • Weight

    3.50kg / 7.72lbs

  • UPC Code

    672792002533

About Aten VM0808T

The ATEN VM0808T 8x8 VGA/Audio Cat5e/6 Matrix Switch is a sophisticated and high-tech solution for your audio and video routing needs. This advanced device offers an efficient and cost-effective method to manage and control up to 8 different audio/video sources and route them to any of 8 displays. This is achieved in conjunction with the ATEN VE500 A/V Over Cat 5 Extender system, enhancing its functionality and versatility.

Equipped with eight Cat 5 A/V input ports, the VM0808T Matrix Switch enables you to seamlessly connect eight source devices using eight VE500T transmitters. These can be simultaneously linked to eight monitors, displays, or projectors via eight VE500R / VE500RQ receivers, making it an ideal choice for large-scale video and audio distribution applications.

In addition to the eight Cat 5 connections, this innovative matrix switch also features local audio/video inputs/outputs. This allows an extra source device and monitor located in the same rack as the VM0808T to function as an additional transmitter and receiver.

What sets the VM0808T 8x8 VGA/Audio Cat5e/6 Matrix Switch apart is its user-friendly web browser and RS-232 interface. This feature allows for easy remote control and management of the device, offering you unparalleled convenience and control over your audio and video sources.

Whether you're routing VGA, RGB, or audio signals, the ATEN VM0808T 8x8 VGA/Audio Cat5e/6 Matrix Switch is a reliable and sophisticated solution that meets all your audio and video switching needs.

Aten VM0808T Features

  • Connects any of 8 Cat 5 A/V inputs to any of 8 Cat 5 A/V outputs in combination with ATEN VE500 A/V Over Cat 5 Extender system
  • Long signal range - supports up to 300m between VE500T transmitters and VE500R / VE500RQ receivers
  • Easily switch between multiple sources and multiple displays
  • Local Operation:
    • Front panel LCD display and pushbuttons
    • Serial controller
  • Remote Operation:
    • Browser-based Graphical User Interface (GUI)
    • Telnet
  • Supports additional local input and local display - provides an extra input / output source
  • Supports Video Quality - up to 1920 x 1200 at 60Hz, DDC2B
  • Supports stereo and balanced audio
  • Automatic and adjustable video and audio quality
  • Independent switching of audio and video sources - any audio source can be connected to any video source for output flexibility
  • Firmware upgradeable
  • Rack Mountable

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Effortlessly manage VGA & audio with this 8x8 matrix switch, perfect for presentations.
  • Use the web browser interface for easy, remote control of your video switching system.
  • Extend signals up to 300m using Cat5e/6 cable, ensuring reliable video distribution.
  • Enjoy seamless integration with RS-232 for advanced control system compatibility.
  • This affordable video switcher supports multiple users, ideal for collaborative environments.
  • Benefit from low latency switching, maintaining high-quality audio/video output.

What's in the box:

  • Aten VM0808T 8x8 VGA/Audio Cat5e/6 Matrix Switch with Web Browser and RS-232
  • Power Cord
  • Rack Mount Kit
  • Grounding Wire
  • 3x Terminal Blocks
  • User Manual
  • Quick Start Guide
  • Aten 3 Year Limited Warranty
